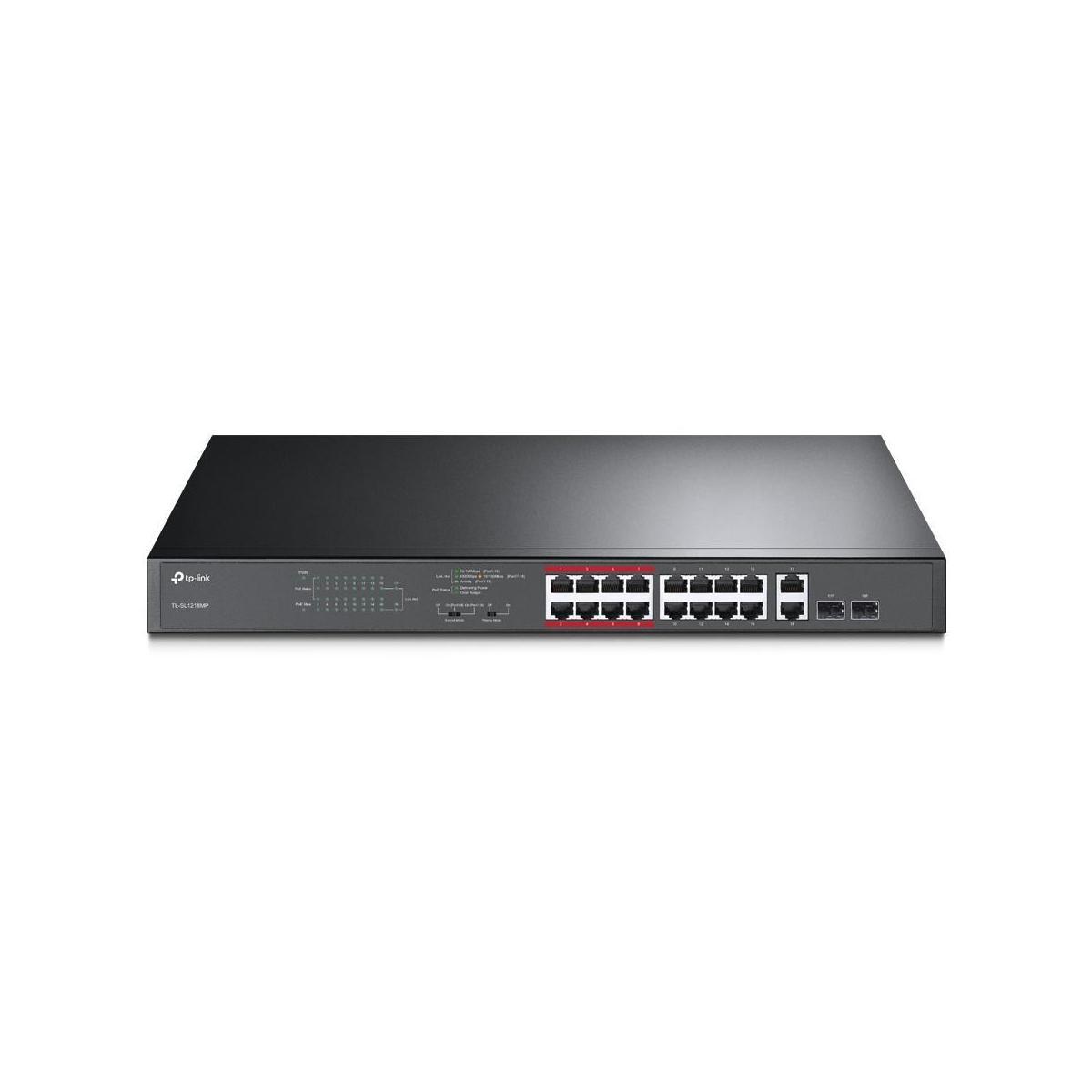

TP-Link TL-SL1218MP 16-Port 10/100Mbps + 2 Gigabit PoE+ Switch 192W Power

The TP-Link TL-SL1218MP is a versatile unmanaged switch designed for surveillance systems and other network applications requiring high PoE power delivery. It features 16 PoE+ ports capable of delivering up to 30W per port, with an overall power budget of 194W, making it suitable for powering devices like IP cameras and wireless access points.

Display

N/A

Performance

• Network Media: 10BASE-T, 100BASE-TX, 1000BASE-T (maximum 100m)
• Transmission Method: Store-and-Forward
• Backup Bandwidth: 7.2 Gbps
• Fan Quantity: 2 Fans
• Physical Security Lock: Yes

Storage

N/A

Connectivity

• Ports:
  • 16 PoE+ 10/100Mbps RJ45 Ports
  • 2 10/100/1000Mbps RJ45 Ports
  • 2 Combo Gigabit SFP Slots
• PoE Power Budget:
  • Up to 30W per PoE port (802.3at/af compliant)
  • Total power budget: 194W
• Extend Mode: Up to 250m data and power transmission for surveillance systems
• Priority Mode: Ensures quality of service for ports 1-8, ideal for video monitoring applications

Power Supply

• Voltage Range: 100-240V AC, 50/60 Hz
• Max Power Consumption:
  • No PD connected: 18.7 W
  • With 192W PD connected: 217.2 W
• Max Heat Dissipation:
  • No PD connected: 63.9 BTU/h
  • With 192W PD connected: 741.2 BTU/h

Dimensions

Size: 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
