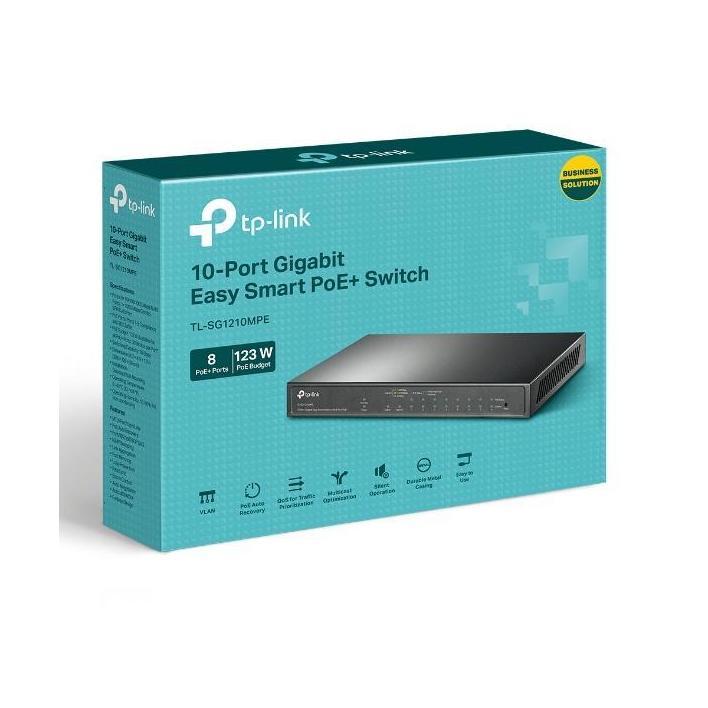

TP-Link TL-SG1210MPE 10-Port Gigabit PoE+ Smart Switch 8x PoE+Ports 2x Non-PoE Ports

The TP-Link TL-SG1210MPE is a versatile and efficient 10-port Gigabit PoE+ Smart Switch designed for easy network management and deployment. It combines data transfer capabilities with power delivery through its eight PoE+ ports, making it ideal for environments requiring simultaneous connectivity and power supply.

Display

N/A

Performance

• Switching Capacity: 20 Gbps
• Packet Forwarding Rate: 14.88 Mpps
• MAC Address Table: 4 K
• Jumbo Frame: 16 KB

Connectivity

• Ports: 9× 10/100/1000 Mbps RJ45 Ports, 1× 1000 Mbps Combo SFP/RJ45 Port
• PoE Ports (RJ45): Standard: 802.3 af/at compliant PoE Ports: Port 1-Port 8
• PoE Power Budget: 123 W
• Network Media: 10BASE-T, 100BASE-TX, 1000BASE-T

Power Supply and Environmental

• Fan Quantity: Fanless
• External Power Adapter Output: 53.5 VDC/2.43 A
• Max Power Consumption: 7.66 W (no PD connected), 141.54 W (with 123 W PD connected)
• Dimensions (W x D x H): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

Software Features

• Quality of Service: Port-Based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit Storm Control
• L2 Features: IGMP Snooping V1/V2/V3 Static Link Agg

Standards and Protocols

• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z
