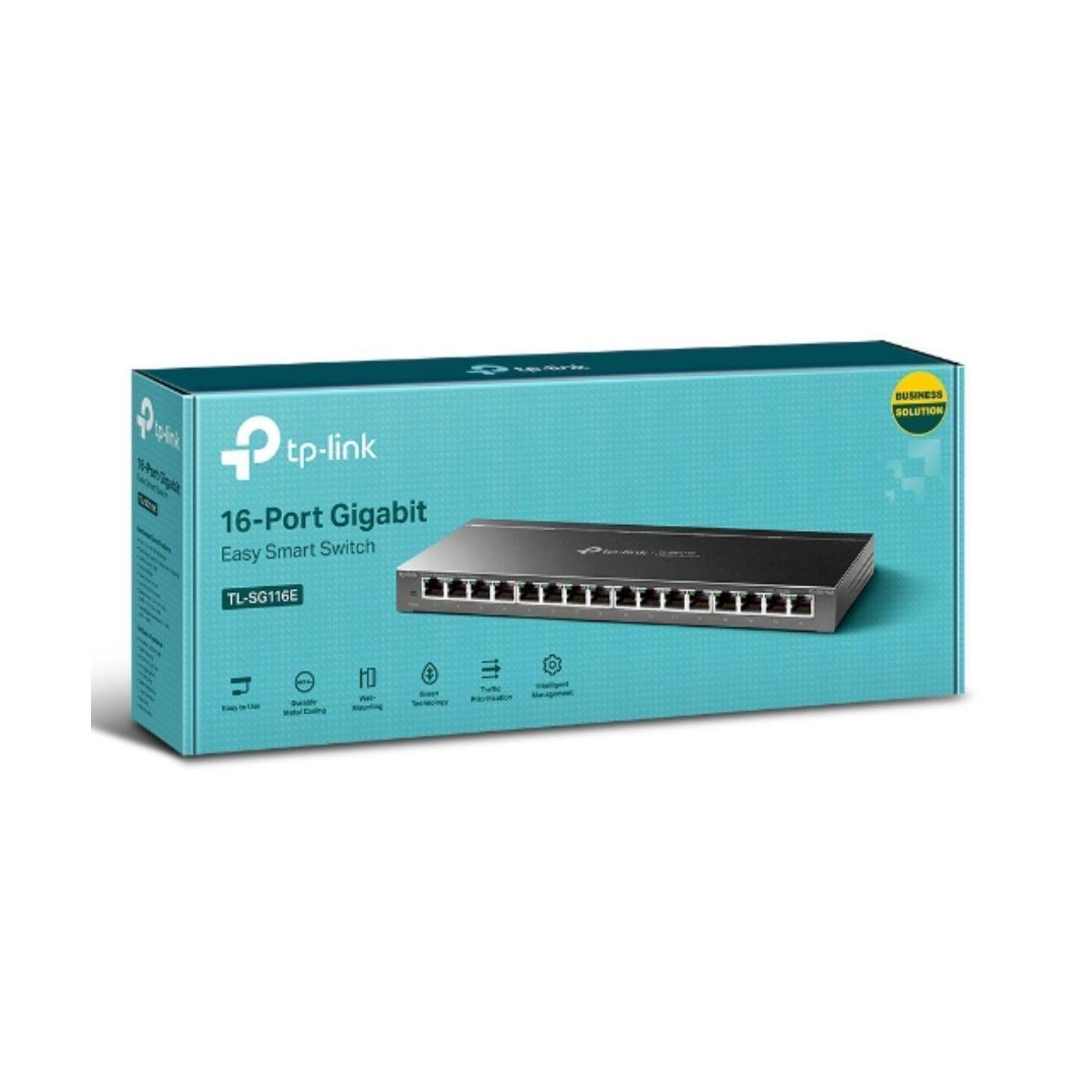

TP-Link TL-SG116E 16-Port Gigabit Unmanaged Switch 32Gbps Capacity 32xVLAN 8K MAC

The TP-Link TL-SG116E is a versatile and reliable unmanaged switch designed for desktop or wall mounting. It features 16 Gigabit ports that support speeds of up to 10/100/1000Mbps, making it ideal for connecting multiple devices in a small office or home network.

Performance

• Switching Capacity: 32Gbps
• Packet Forwarding Rate: 23.81Mpps
• MAC Address Table: 8K entries
• Packet Buffer Memory: 4.1Mb
• Jumbo Frame Support: Up to 9KB

L2 Features

• VLAN Support: Up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention

Connectivity

• Ports: 16 x 10/100/1000Mbps RJ45 ports
• Auto Negotiation/Auto MDI/MDIX
• Network Media Support:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

HARDWARE FEATURES

• Fanless Design
• Durable Metal Casing
• External Power Adapter: Output 9VDC/0.6A
• Power Consumption: Maximum 9.27W (220V/50Hz)
• Dimensions: 11.3*4.4*1.0 in. (286*111.7*25.4 mm)

Software Features

• Quality of Service Support:
  • Port-based/802.1p/DSCP priority
  • 4 Priority Queues
  • Rate Limiting and Storm Control

The TP-Link TL-SG116E is plug-and-play, requiring no configuration for immediate use. It also includes intelligent management via a web user interface and downloadable utility, providing users with advanced control options.
