TP-Link

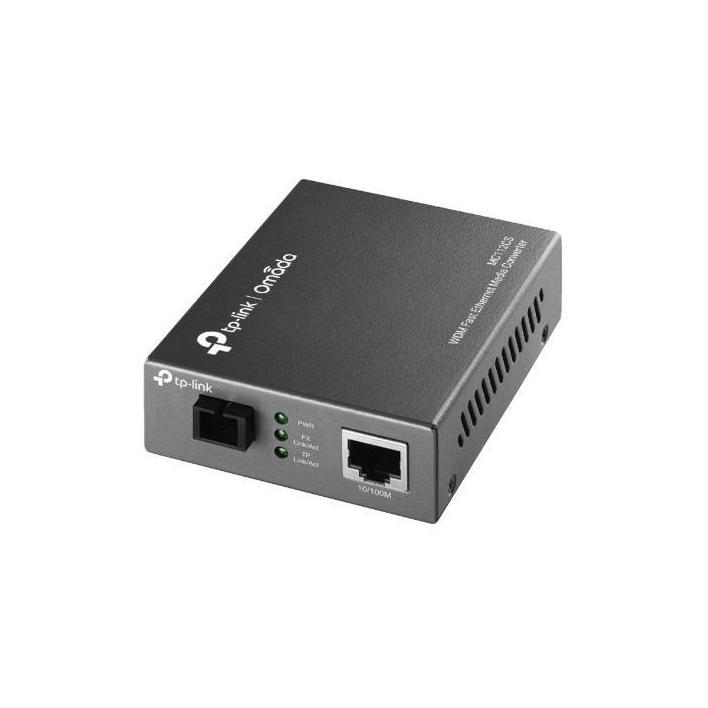

TP-Link MC112CS 10/100Mbps RJ45 to SC WDM Media Converter 20KM
Out of stock
Couldn't load pickup availability
Downloads
Downloads
- Media Converter(Asia-Pacific_7 languages)_Installation Guide · Quick start guide, PDF
- Media Converter(EU2-12Languages)_Installation Guide · Quick start guide, PDF
- Product Brochure · Datasheet, PDF
- User manual · PDF
Specifications
Specifications
Power
| Power Source | AC-powered |
|---|
Case & Build
| Material | Plastic |
|---|
Dimensions
| Length | 206 mm |
|---|---|
| Width | 170 mm |
| Height | 66 mm |
Other
| Colour | Black |
|---|
Product Details
Product Details
The TP-Link MC112CS is a media converter designed to convert between 100BASE-TX copper and 100BASE-FX fibre networks. It supports WDM (Wavelength Division Multiplexing) technology, enabling data transmission and reception over a single fibre cable at different wavelengths: transmitting at 1310nm and receiving at 1550nm.
Standards and Protocols
- IEEE 802.3u (10/100Base-TX, 100Base-FX)
- IEEE 802.3x (Full Duplex Flow Control)
Ports
- 1 x 100M SC/UPC port
- 1 x 100M RJ45 port (Auto MDI/MDIX)
Wavelengths
- Tx: 1310nm
- Rx: 1550nm
Fault Management
- Link Fault Passthrough and Far End Fault detection to minimise link failure impact.
Network Media Compatibility
- 10BASE-T: UTP Category 3, 4, 5 cable (max. 100m)
- 100BASE-TX: UTP Category 5, 5e cable (max. 100m)
- 100BASE-FX: Single-mode fibre
LED Indicators
- PWR (Power)
- FDX/Col (Full Duplex/Collision)
- Link/Act (Link Status/Activity)
- SPD (Speed)
Power Supply
External power adapter
The MC112CS extends fibre distance up to 20km, making it suitable for long-distance network connections.
Warranty
Warranty
Manufacturer warranty 36 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
