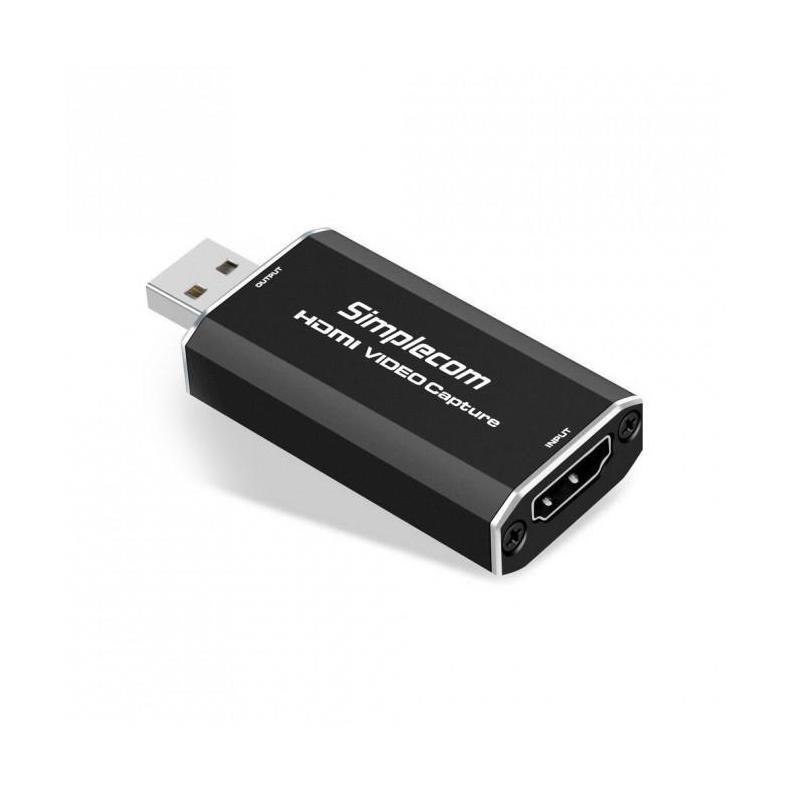

Simplecom HDMI to USB 2.0 Video Capture Card Full HD 1080p
Available in stock (28)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 190 mm |
|---|---|
| Width | 112 mm |
| Height | 10 mm |
Other
| Colour | Black |
|---|
Product Details
Product Details
The Simplecom DA315 HDMI to USB 2.0 Video Capture Card is a versatile and easy-to-use device for video recording, live streaming, and video conferencing. It supports Full HD 1080p resolution and is plug-and-play with no driver installation required.
Display
- HDMI Input Resolution: Up to 3840x2160@30Hz
- USB Output Resolution: Up to 1920x1080@30Hz
Performance
- Video Input Format: 8 / 10 / 12-bit Deep Color
- Audio Format Support: L-PCM
- Maximum Working Current: 0.4A / 5VDC
- Operating Temperature Range: -10 to +55°C
Connectivity
- HDMI Cable Length Support: < 15m (AWG26 Standard HDMI Cable)
- Compliant with UVC and UAC
- No external power supply required, compact and portable
Compatibility
- Compatible with most mainstream capture software such as VLC, OBS, Amcap, etc.
- System Requirements: Windows 10 (64-bit), Mac OS X 10.9 or higher
- CPU: Quad Core Intel Core i5 or higher (Core i7 recommended)
- RAM: 4GB or higher
- Graphics Card: NVIDIA GT630 or higher
Note: Avoid using USB hubs or extension cables; connect directly to the computer's USB port. Low-performance PCs may cause lag during recording or streaming.
Warranty
Warranty
Manufacturer warranty 12 Months
