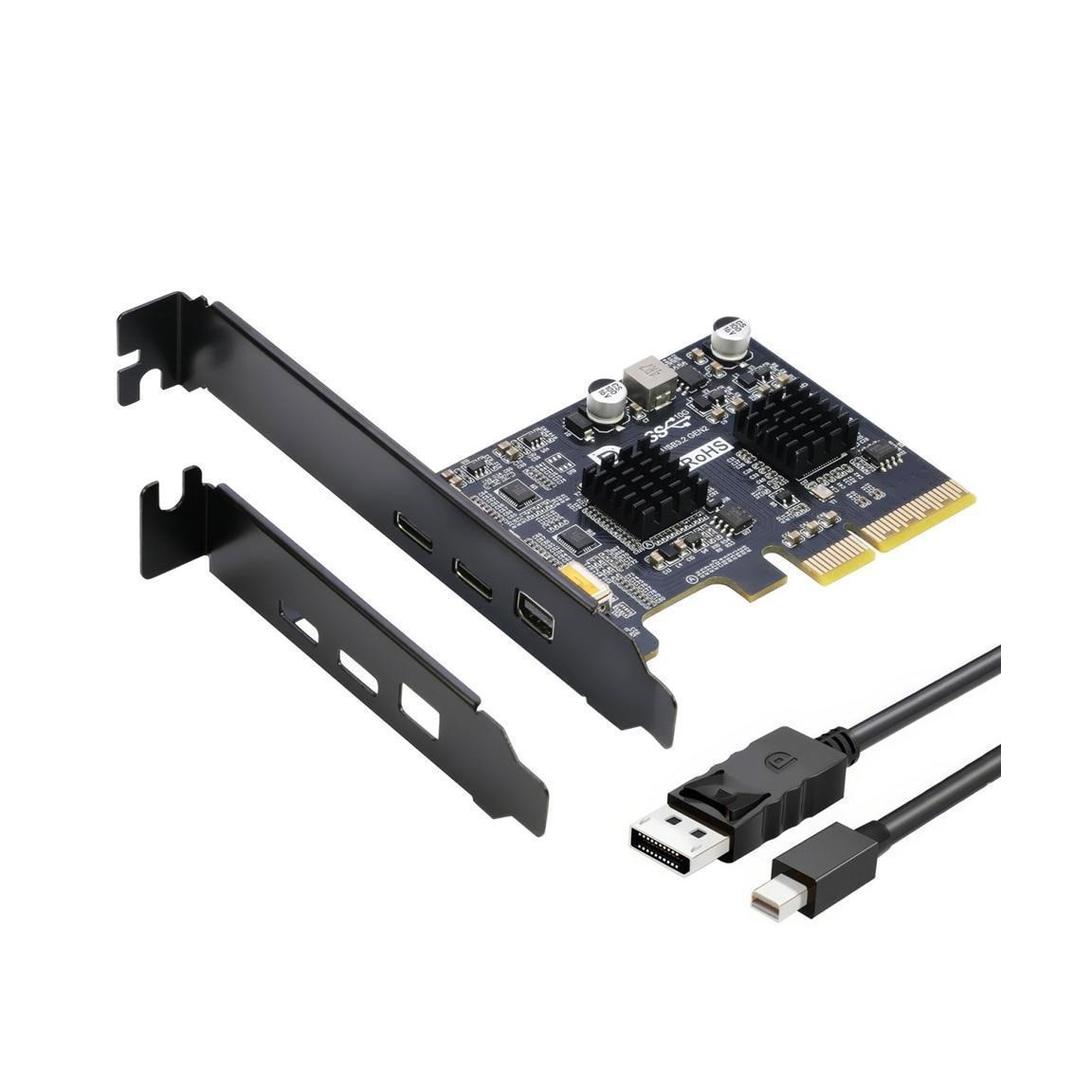

Simplecom EC365 PCIe x4 to 2-Port USB 3.2 Gen2 Type-C with Mini DisplayPort Expansion Card

Upgrade your desktop PC with the Simplecom EC365 PCIe x4 to 2-Port USB 3.2 Gen II Type-C with Mini DisplayPort Expansion Card. This card is designed for high-speed data transfer and video integration through a single USB-C port.

Display

• Video Input: miniDP input supports video resolutions up to 4K@60Hz
• Video Output: One USB-C port with DP Alt Mode supports simultaneous data and video output at up to 4K@60Hz via a connected USB-C monitor or docking station

Performance

• Data Transfer Speed: USB 3.2 Gen 2 interface provides fast 10Gbps data transfer speeds

Connectivity

• PCIe Interface: PCIe 3.0 x4, compatible with x8 or x16 slots
• Ports: 1x USB-C (Data only), 1x USB-C (Data + Video), 1× miniDP (Input)
• Power Source: Integrated PCIe 12V to 5V module, no external power required
• OS Support: Windows 10 and later operating systems

Features

• Built-in over current protection on each USB port
• Plug-and-play compatibility for easy installation

Note: The miniDP port functions as a video input only, connecting to the DisplayPort output of your motherboard or graphics card. The USB-C 1 port supports data transfer only and does not support video output.
