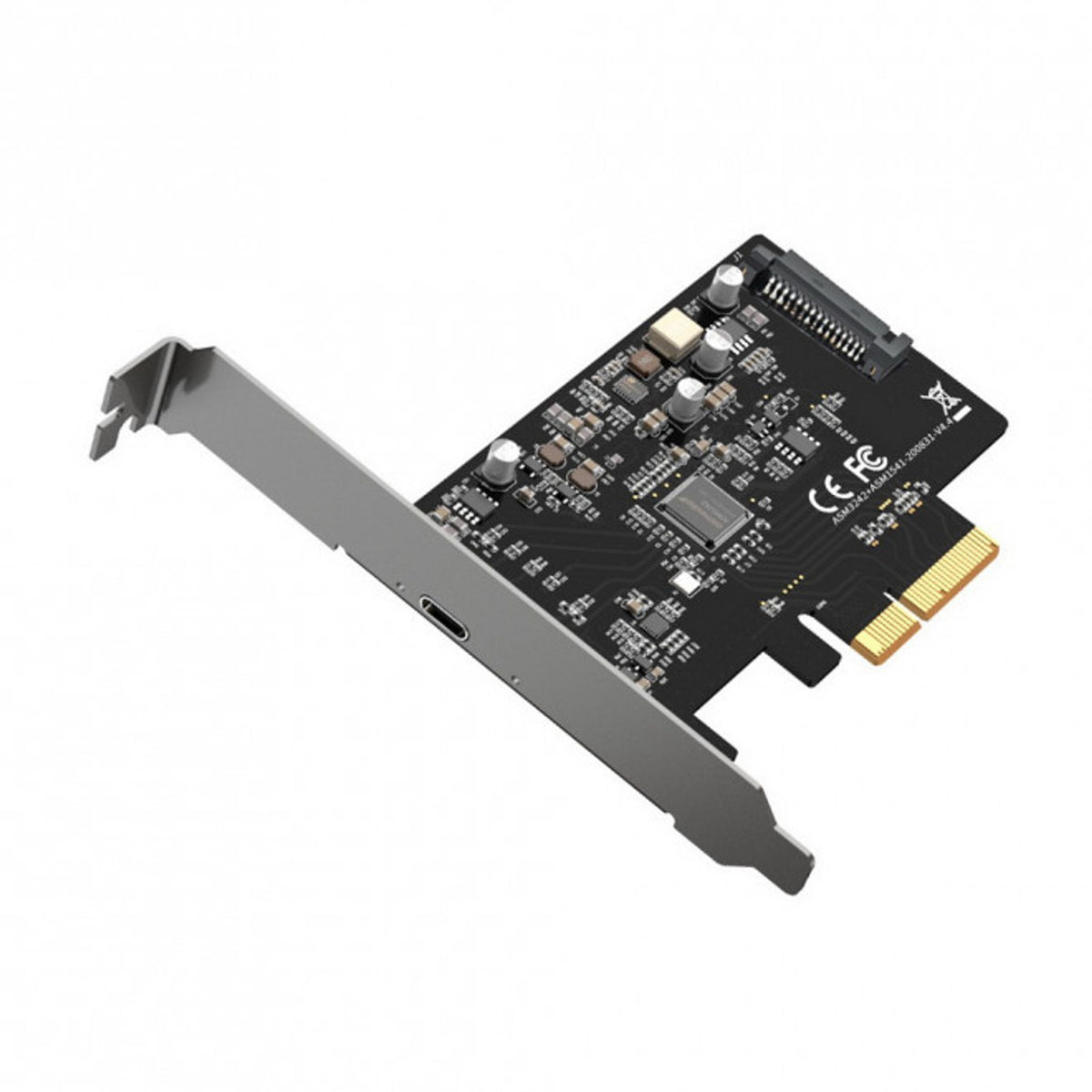

Simplecom EC318 PCI-e x4 USB 3.2 Gen2x2 20Gbps USB-C Expansion Card

The Simplecom EC318 is a PCI-e x4 to USB 3.2 Gen2x2 20Gbps USB-C expansion card designed for PCs with PCI-e interfaces (PCI-e x4, x8 or x16). It supports data transfer speeds up to 20Gbps when connected to USB 3.2 Gen2x2 compliant peripherals and is compatible with older USB versions.

Performance

• Bus: PCI Express 3.0 x4 lanes (also works on x8 or x16 lanes)
• Speed Support: SuperSpeed USB 20Gbps/10Gbps/5Gbps, HiSpeed USB 480Mbps
• Controller: ASM3242 and ASM1541 USB 3.2 Gen 2x2 controllers
• Compliant with PCI Express Specification 3.0
• Compliant with USB 3.2 Specification Rev. 1.0, Intel xHCI Specification 1.2
• Supports UASP (USB Attached SCSI Protocol) for enhanced performance

Connectivity

• Interface: 1x USB-C (USB 3.2 Gen2x2)
• LED indicator for power and connection status
• Includes low profile slot cover for supporting low profile cases

Power Supply

• Powered by PCI-e slot, SATA Power Connector for additional power
• USB Power Output: 5V3A max

Compatibility

• Supported System: Windows 8 and above
• No driver required (Plug and play)

Note: The EC318 does not support DP Alt Mode or USB Power Delivery. It is designed for PCI-e 3.0 interface and does not support Windows 7.
