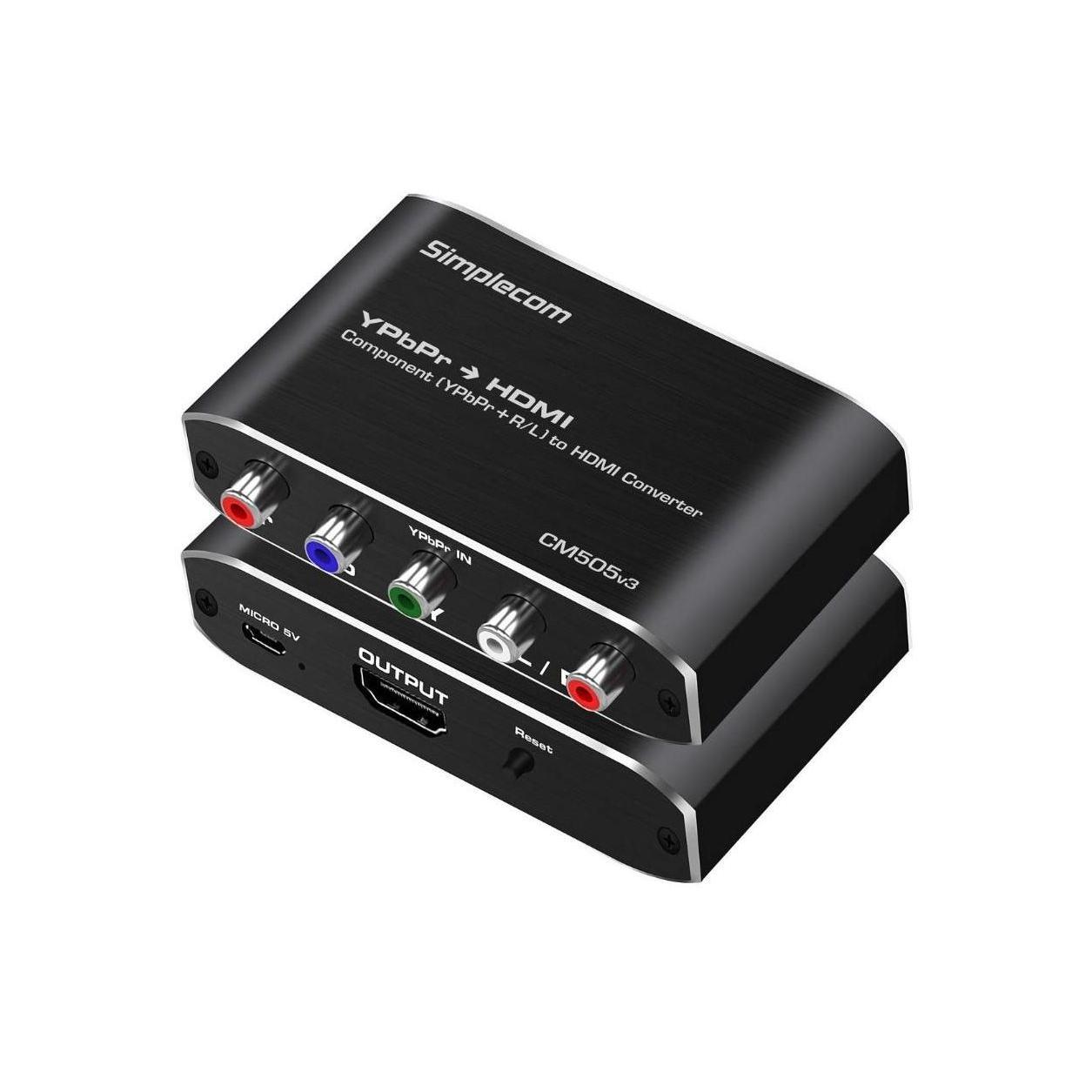

Simplecom CM505v3 Component YPbPr to HDMI Full HD 1080p Converter
Available in stock (20)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 144 mm |
|---|---|
| Width | 126 mm |
| Height | 36 mm |
Product Details
Product Details
The Simplecom CM505v3 is a component (YPbPr) to HDMI converter that supports video resolutions up to Full HD 1080p. It features an aluminium case for durability and excellent heat dissipation.
Display
- Supports interlaced resolutions: 480i, 576i, 1080i
- Supports progressive resolutions: 480p, 576p, 720p, 1080p
Performance
- Video amplifier bandwidth: 1.65Gbps/165MHz per channel
- Supports deep colour at 8bit per channel (24bit all channels)
- Uncompressed 2-channel audio support such as LPCM
Connectivity
- Input: Component (YPbPr) + R/L Stereo
- Output: HDMI
- Powered by USB, plug into a USB wall adapter or nearby TV USB port
Environmental Specifications
- Operating temperature: 0°C to 70°C
- Operating humidity: 10% to 85% RH
- Storage temperature: -10°C to +80°C
- Storage humidity: 5% to 90% RH
Package Contents
- 1x Component to HDMI converter
- 1x HDMI Cable
- 1x USB Power cable
- 1x USB Wall Adapter
Note: This adapter converts video format from component to HDMI but does not upscale the resolution. It only works in one direction, from Component to HDMI.
Warranty
Warranty
Manufacturer warranty 12 Months
