Simplecom CHT811 11-in-1 USB-C 4K Triple Display MST Dock Dual HDMI DP
Available in stock (31)
Couldn't load pickup availability
Specifications
Specifications
Ports & Connectivity
| Device Interface | HDMI, Ethernet, TRS, USB, Display port, 3.5 mm |
|---|---|
| USB Standard | Other |
| USB Connector Type | USB Type-C, USB Type-A |
| Connectivity Technology | USB, HDMI, Ethernet, Wired |
Power
| Power Source | USB |
|---|
Case & Build
| Material | Metal, Aluminum |
|---|
Other
| Operating System | Windows, macOS |
|---|
Product Details
Product Details

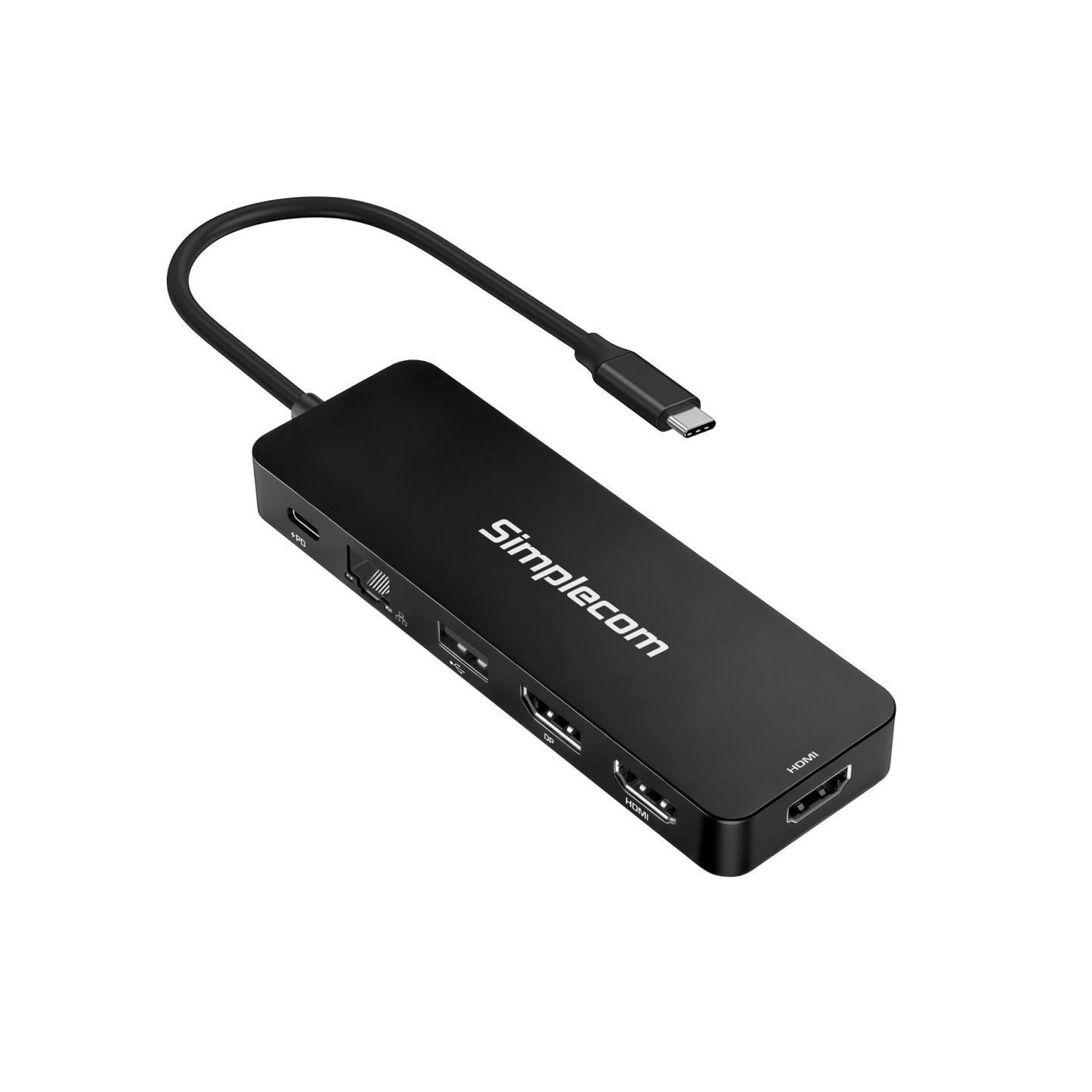

The Simplecom CHT811 is a compact and portable 11-in-1 USB-C docking station designed to expand your laptop's connectivity through a single USB-C connection. It features three USB-A ports, two USB-C data ports, Gigabit Ethernet, a 3.5mm headphone jack, and three display outputs (two HDMI and one DisplayPort), delivering a versatile all-in-one expansion solution for both work and home office use.
Display
- HDMI Outputs: 2x HDMI ports supporting up to 4K@60Hz resolution (3840x2160)
- DisplayPort Output: 1x DP port supporting up to 4K@60Hz resolution (3840x2160)
Performance and Connectivity
- USB-A Data Ports: 1x USB 480Mbps, 2x USB 5Gbps
- USB-C Data Ports: 1x USB 480Mbps, 1x USB 5Gbps (PD charging only)
- Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
- Audio Port: 3.5mm TRRS audio jack
- HDCP Support: HDCP 2.3 compliant, backwards compatible
- PD Input: USB-C PD (charging only), up to 100W
Design and Compatibility
- Housing Material: Aluminium
- Dimensions: 13.3 x 4.2cm x 1.4cm
- Weight: 86g
- Operating Temperature: 0 - 50°C
- System Requirements: Windows 10 or later, macOS 10.12 or later (no MST support)
- Note: USB-C port must support DisplayPort Alternate Mode for video output functionality.
The CHT811 is plug-and-play with no additional drivers required and supports up to three external displays at 4K resolution, making it an ideal solution for enhancing productivity in both home and office environments.
