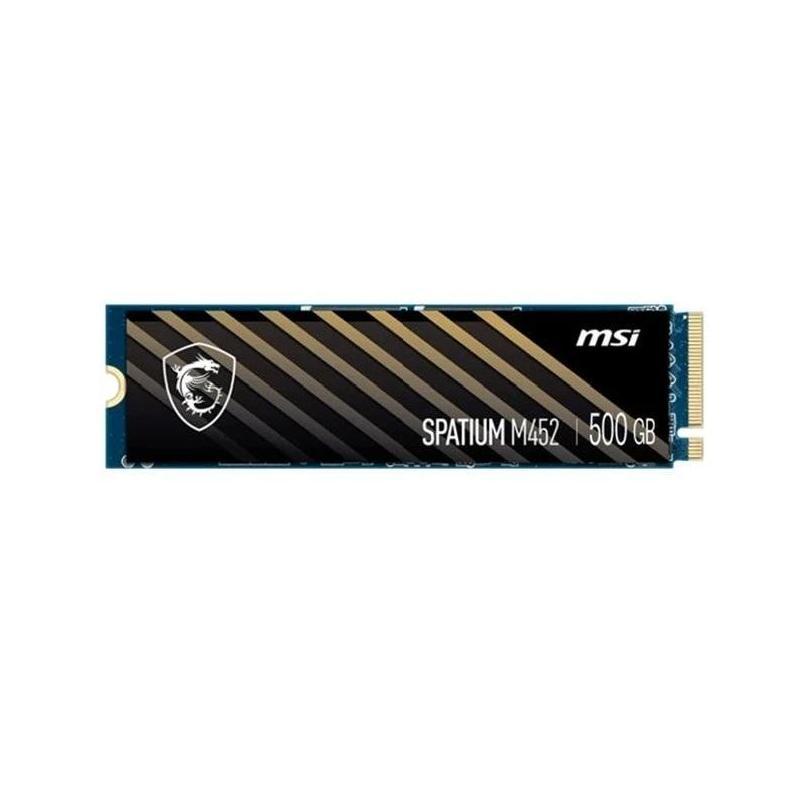

MSI SPATIUM M452 500GB M.2 2280 PCIe Gen4x4 NVMe 1.4 3D NAND 3600/3100 MB/s

The SPATIUM M452 is a high-performance PCIe 4.0 NVMe M.2 SSD with a capacity of 500GB. It features a PHISON E29T controller and uses 3D NAND flash memory for reliable storage.

Display

No display functionality as it is an internal solid-state drive.

Performance

• Sequential Read: up to 3600 MB/s
• Sequential Write: up to 3100 MB/s
• Random Read (4KB): up to 470,000 IOPS
• Random Write (4KB): up to 750,000 IOPS

Storage

• Total Capacity: 500GB
• TeraBytes Written (TBW): 150
• Mean Time Between Failure (MTBF): Up to 1,500,000 Hours

Connectivity and Interface

• Interface: PCIe Gen4 x4, NVMe 1.4 (2CH)
• Compatibility: PCIe Gen4 / Gen3 / Gen2 / Gen1

Dimensions

80.00mm (L) x 22.00mm (W) x 2.15mm (H)

Power Consumption

• Idle Power PS3: 50 mW
• Low Power L1.2: 5 mW

Temperature Ranges

• Operating Temperatures: 0°C – 70°C
• Storage Temperatures: -40°C – 85°C

Limited Warranty

5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

Advanced Features

• TRIM (Performance Optimization, OS Support required)
• SMART (Self-Monitoring, Analysis and Reporting Technology)
• LDPC (Low Density Parity Check) ECC Algorithm
• End to End Data Path Protection
• APST (Autonomous Power State Transition)
• Pyrite (Encryption, Data Security)
