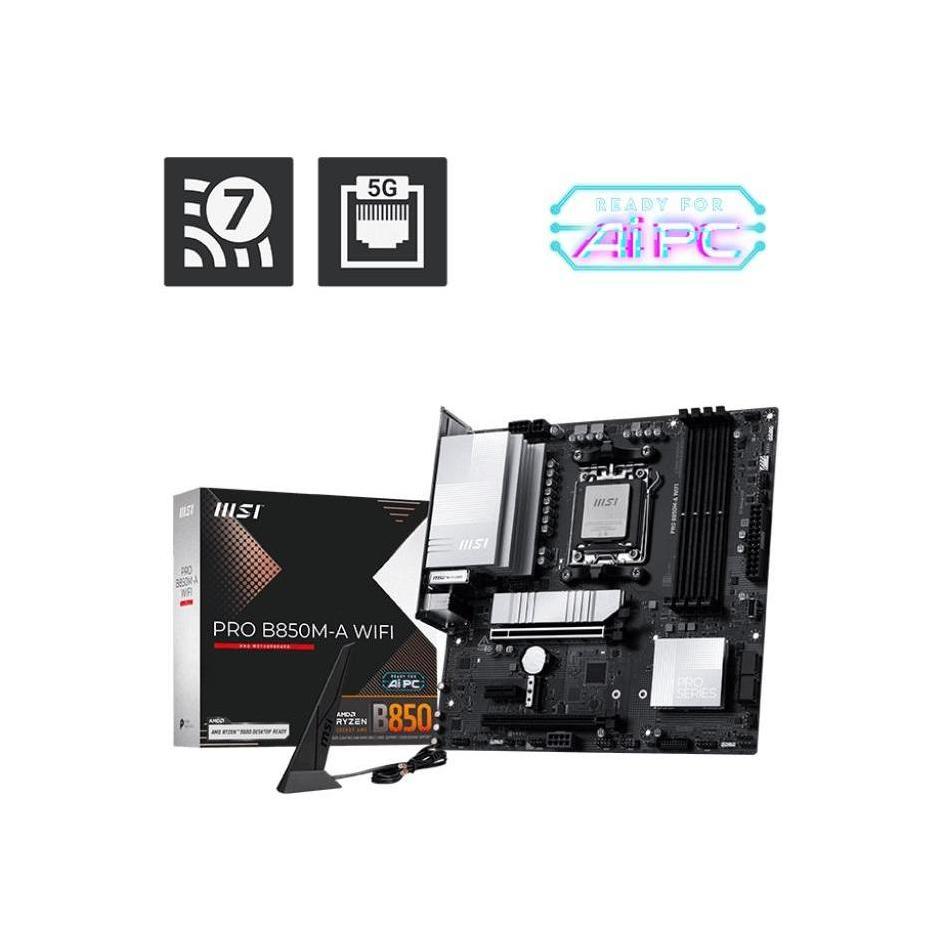

MSI PRO B850M-A WIFI AM5 4x DDR5 1x HDMI 1x PCI-E x16 3x M.2 Motherboard WiFi 7

Name: MSI PRO B850M-A WIFI AM5 4x DDR5 1x HDMI 1x PCI-E x16 3x M.2 Motherboard WiFi 7
Brand: MSI
SKU: PRO B850M-A WIFI
Price: 286.61 AUD
Availability: OutOfStock

SKU: PRO B850M-A WIFI

Barcode: 4711377347587

$286.61 ~~$356.40~~

Tax included. Shipping calculated at checkout.

Out of stock

New-generation WiFi 7 support
4x DDR5 memory slots
1x HDMI 2.1 port
PCIe 5.0 x16 slot
3x M.2 slots for SSDs
Supports AMD Ryzen 9000 series CPUs

Free Shipping on orders over $250
Hassle-free returns within 30 days of purchase
Phone, email & live chat — Mon to Sat.

Downloads

Product Brochure · Datasheet, PDF
PRO B850M-A WIFI · Datasheet, PDF

Specifications

Processor

Processor Socket	Socket AM5

Memory

Memory Technology	DDR5

Motherboard

Motherboard Form Factor	Micro-ATX
Motherboard Chipset Family	AMD

Expansion & Slots

Expansion Slot Types	PCIe, M.2

Ports & Connectivity

Wi-Fi Standard	Other, 802.11ax
USB Standard	USB 2.0
USB Connector Type	USB Type-C, USB Type-A

Dimensions

Length	284 mm
Width	278 mm
Height	72 mm

Other

Series	MSI PRO
Colour	Black

Product Details

The MSI PRO B850M-A WIFI is a compact AM5 motherboard designed for AMD Ryzen 9000, 8000, and 7000 series processors. It features the latest connectivity options including Wi-Fi 7 and Bluetooth 5.4.

Display Interface Support

HDMI™ 2.1 supporting 4K@60Hz
DisplayPort 1.4 (requires processor graphics)

Memory Support

4 DIMMs, Dual Channel DDR5 – up to 8200+ MT/s (OC)

Storage

1 x M.2 Gen5 x4 128Gbps slot
1 x M.2 Gen4 x4 64Gbps slot
4 x SATA 6Gbps ports

Connectivity

6 x USB 10Gbps (3 Type-A + 3 Type-C)
5 x USB 5Gbps (5 Type-A)
4 x USB 2.0 ports
Realtek® 8126 5G LAN
Wi-Fi 7 Solution, Bluetooth 5.4

Expansion Slots

1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot

Features

EZ M.2 Shield Frozr II for easy installation/removal of M.2 SSDs
EZ PCIe Clip II for one-finger graphics card removal
Latest DDR5 Memory with MSI Memory Boost technology
Lightning Gen 5 for up to 128GB/s bandwidth
Extended Heatsink Design for enhanced cooling and performance
Frozr AI Cooling for automatic system fan adjustment based on CPU/GPU temperatures
