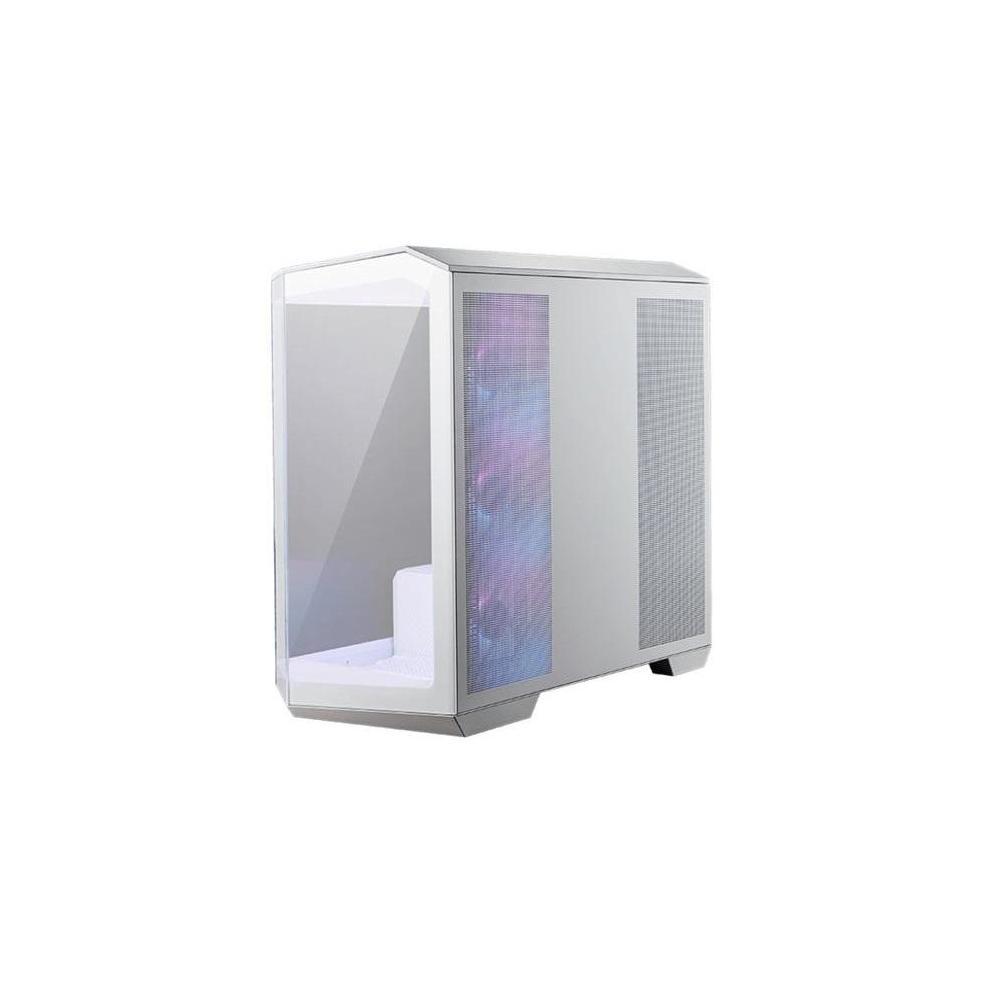

MSI MAG PANO M100R PZ WHITE Micro ATX Case USB-C 2 x USB 3.0 4 x PCI-E 2 x 2.5" 2 x 3.5

The MSI MAG PANO M100R PZ WHITE is a Micro ATX case designed for compact builds with support for both Micro-ATX and Mini ITX motherboards. It features versatile I/O ports including USB 3.2 Gen 1 Type-A, USB 3.2 Gen 2x2 Type-C, audio out/mic in, LED switch button, and power button.

Storage

• 2 x 2.5” SSD slots
• 2 x 2.5”/3.5” combo drive bays (up to 2 x 2.5” or 1 x 2.5” + 1 x 3.5”)

Connectivity and Expansion

• I/O ports: USB 3.2 Gen 1 Type-A, USB 3.2 Gen 2x2 Type-C, audio out/mic in, LED switch button, power button
• 4 x PCI-E expansion slots
• Maximum GPU length: 390 mm (15.35 inches) for horizontal installation only

Cooling and PSU Support

• Fan support: Top - 3 x 120 mm / 2 x 140 mm, Rear - 1 x 120 mm / 1 x 140 mm, Side - 3 x 120 mm, Bottom - 1 x 120 mm
• Pre-installed fans: Side - 3 x ARGB reverse-blade fans (120 mm), Rear - 1 x ARGB fan (120 mm)
• Radiator support: Top - 120 / 240 / 360 mm, Rear - 120 / 140 mm
• PSU compatibility: ATX form factor with maximum length of 200 mm (7.87 inches)

Dimensions and Weight

• Dimensions: 440 x 235 x 405 mm (17.32 x 9.25 x 15.94 inches)
• Net weight: 8.66 kg
• Gross weight: 11.29 kg
