MSI
MSI MAG PANO 130R PZ WHITE ATX/mATX/ITX 400mm GPU 165mm CPU 7 Slots USB-C USB-A
Available in stock (111)
Couldn't load pickup availability
Specifications
Specifications
Graphics
| Max. GPU Length | 400 mm |
|---|
Motherboard
| Motherboard Form Factor | ATX, microATX, Mini-ITX |
|---|
Expansion & Slots
| Expansion Slot Types | PCIe |
|---|
Cooling & Fans
| Max. CPU Cooler Height | 165 mm |
|---|---|
| Included Fan Count | 4 |
Power
| Power Source | AC-powered |
|---|
Case & Build
| Chassis Type | Mid tower |
|---|---|
| Material | Plastic, Metal |
| Compatible Motherboard Form Factor | Mini-ITX, Micro-ATX, ATX |
| Compatible Power Supply Form Factor | ATX |
Lighting
| RGB Lighting | Yes |
|---|
Other
| Colour Code | White |
|---|---|
| Colour | White |
Product Details
Product Details

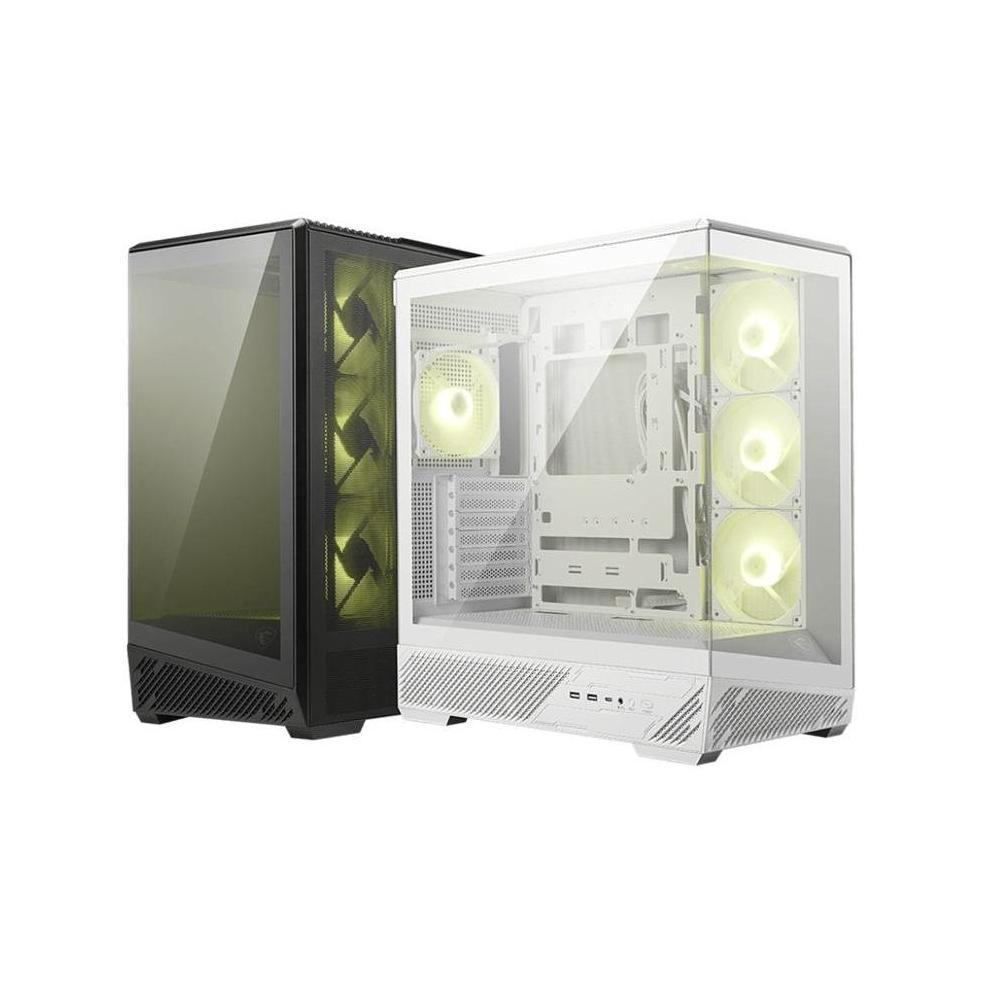

The MSI MAG PANO 130R PZ - WHITE is a versatile mid-tower case designed for ATX/mATX/ITX motherboards and supports up to 400mm GPU and 165mm CPU coolers. It features seven expansion slots, making it suitable for high-end graphics cards and multiple storage solutions.
Connectivity
- 2 x USB-A (5Gbps)
- 1 x USB-C (20Gbps)
- Audio-Out / Mic-in
- Reset Button
- Power Button
Storage Support
- Up to 3 x 2.5” SSD
- Up to 2 x 3.5” HDD (Maximum of 3 drives can be mounted at once, depending on configuration)
Fan and Radiator Support
- Top: 3 x 120 mm / 2 x 140 mm / 1 x 280 mm / 1 x 360 mm
- Rear: 1 x 120 mm
- Side: 3 x 120 mm / 1 x 240 mm / 1 x 360 mm
- Bottom: 3 x 120 mm (Above the power shroud)
Dust Filters and Cable Management
- Magnetic top and removable bottom dust filters
- Back-Connect ATX motherboard compatibility for easy installation and streamlined cable management
Dimensions and Weight
Dimensions: 460 x 232 x 490 mm (18.11 x 9.25 x 19.29 inches)
Net Weight: 8.37 kg / 18.45 lbs
Gross Weight: 10 kg / 22.04 lbs
Additional Features
- Rotatable PCIe bracket for both horizontal and vertical GPU installations
- Pre-installed reverse blade ARGB fans on the side for unobstructed display of fan beauty without interference
