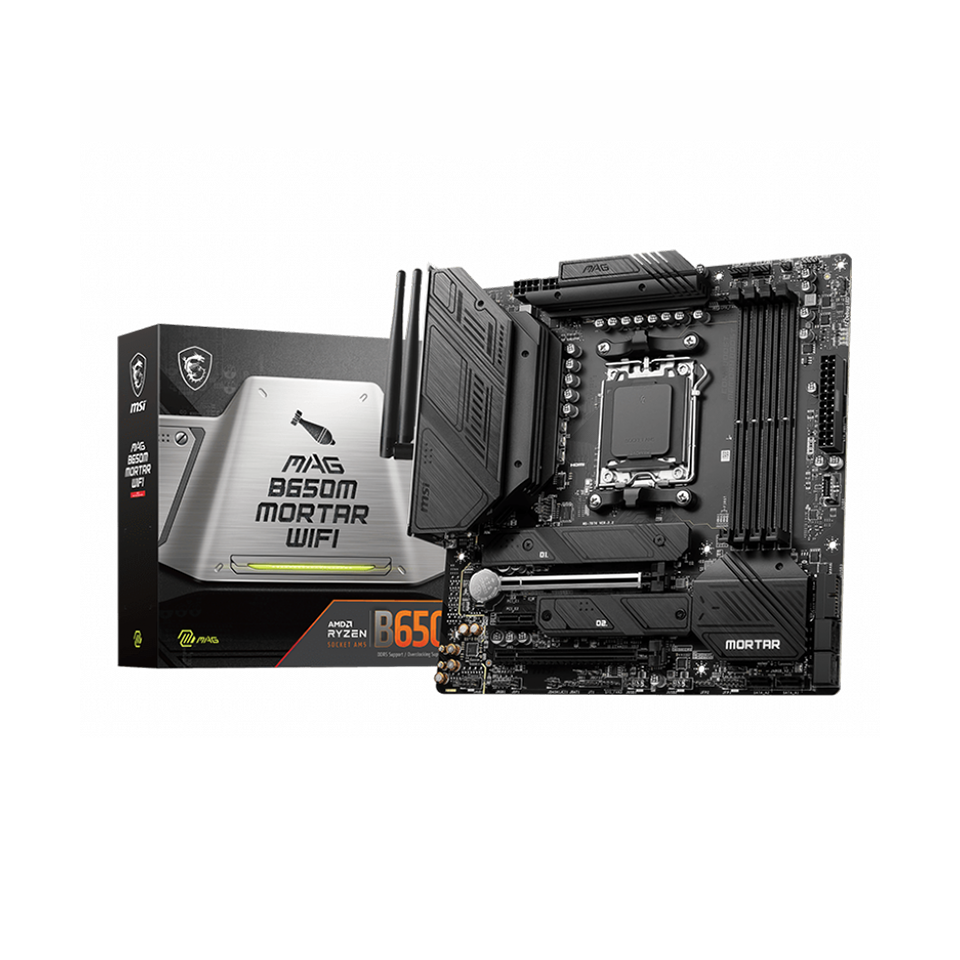

MSI MAG B650M MORTAR WIFI AM5 mATX Motherboard 4x DDR5 128GB 2x M.2 6x SATA

Name: MSI MAG B650M MORTAR WIFI AM5 mATX Motherboard 4x DDR5 128GB 2x M.2 6x SATA
Brand: MSI
SKU: MAG B650M MORTAR WIFI
Price: 371.64 AUD
Availability: OutOfStock

SKU: MAG B650M MORTAR WIFI

Barcode: 4711377010207

$371.64 ~~$416.00~~

Tax included. Shipping calculated at checkout.

Out of stock

AMD B650 chipset
Socket AM5 support
4x DDR5 RAM slots
1x PCI-E x16 slot
2x M.2 slots, 6x SATA
8x USB 3.2 ports
HDMI & DisplayPort

Free Shipping on orders over $250
Hassle-free returns within 30 days of purchase
Phone, email & live chat — Mon to Sat.

Downloads

MAG B650M MORTAR · Datasheet, PDF
MAG B650M MORTAR WIFI · Datasheet, PDF

Specifications

Processor

Processor Socket	Socket AM5

Memory

Memory Technology	DDR5

Motherboard

Motherboard Form Factor	Micro-ATX
Motherboard Chipset Family	AMD

Expansion & Slots

Expansion Slot Types	SATA, DIMM, M.2, PCIe

Ports & Connectivity

Wi-Fi Standard	802.11g, 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11n
USB Standard	USB 2.0, USB 3.2 gen 2x2, USB 3.2 gen 2x1, USB 3.2 gen 1x1, USB 1.0
USB Connector Type	USB Type-A, USB Type-C

Dimensions

Length	282 mm
Width	280 mm
Height	74 mm

Other

Series	MAG B650M MORTAR WIFI
Colour	Black

Product Details

The MSI MAG B650M MORTAR WIFI is an mATX motherboard designed for AMD AM5 sockets, supporting up to 128GB of DDR5 memory at speeds up to 6400MHz (OC). It features a robust set of expansion slots and storage options suitable for modern gaming and productivity needs.

Display

1x HDMI™
1x DisplayPort

Performance

CPU Support: AMD Ryzen™ 7000 Series Desktop Processors
Memory: 4x DDR5 slots, up to 128GB capacity
Expansion Slot: 2x PCI-E x16 (supporting x16/x4), 1x PCI-E x1

Storage

2x M.2 slots supporting PCIe 4.0 x4, up to 2280/2260 devices
6x SATA 6G ports

Connectivity

USB:
- 4x USB 2.0 (front)
- 4x USB 3.2 Gen1 Type A (rear), 2x USB 3.2 Gen1 Type A (front)
- 3x USB 3.2 Gen2 Type A (rear), 1x USB 3.2 Gen2 Type C (front), 1x USB 3.2 Gen2x2 Type C (rear)

The motherboard measures 243.84mm x 243.84mm, making it ideal for compact build configurations.
