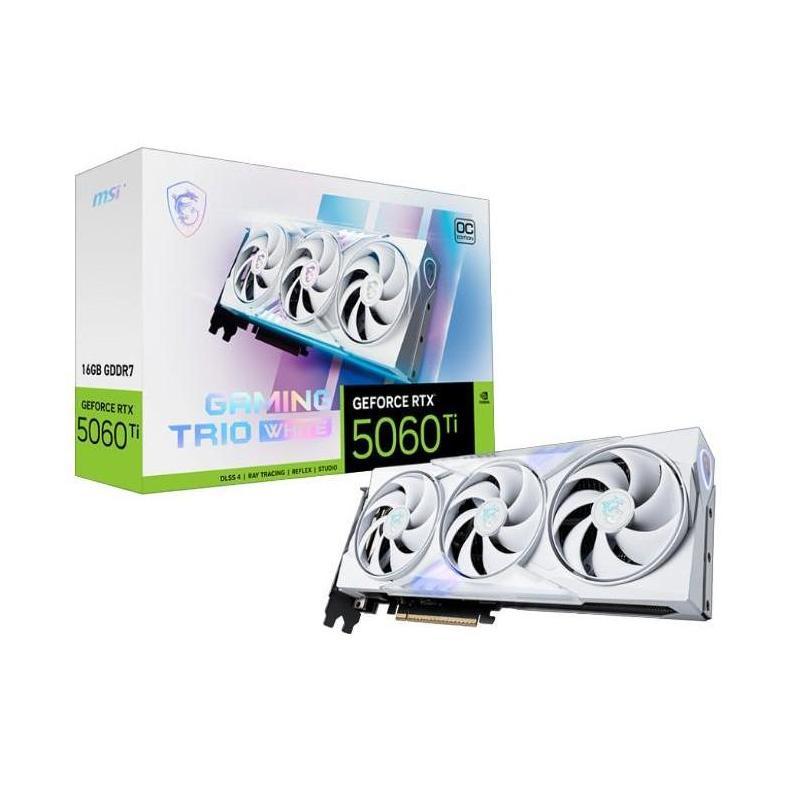

MSI GeForce RTX 5060 Ti 16G GAMING TRIO OC WHITE 16GB GDDR7 PCIe Gen 5x16

The MSI nVidia GeForce RTX™ 5060 Ti 16G GAMING TRIO OC WHITE is a high-performance graphics card designed for gaming and multimedia enthusiasts. It features advanced cooling technologies and robust specifications to ensure optimal performance.

Display

• DisplayPort x 3 (v2.1b)
• HDMI™ x 1 (HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

Performance

• Graphics Processing Unit: NVIDIA® GeForce RTX™ 5060 Ti
• CUDA® CORES: 4608 Units
• Core Clocks (Extreme Performance): 2662 MHz (MSI Center)
• Boost Clock: 2647 MHz

Memory

• Type: GDDR7
• Size: 16GB
• Speed: 28 Gbps
• Bus Width: 128-bit

Connectivity and Interfaces

• Interface: PCI Express® Gen 5 x16 (uses x8)
• HDCP Support: Y
• Maximum Displays: 4
• G-SYNC® technology: Y
• Digital Maximum Resolution: 7680 x 4320

Cooling and Design Features

• TRI FROZR 4: Upgraded fans, airflow control, and thermal design for superior cooling and quieter operation.
• STORMFORCE FAN: Seven fan blades with claw texturing and a circular arc for optimal airflow with minimal noise.
• Nickel-plated Copper Baseplate: Swiftly captures heat from the GPU and memory.
• Core Pipes: Square design maximizes contact with the GPU baseplate for optimal thermal management.
• Metal Backplate: Reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
• Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
• Air Antegrade Fin 2.0: V-shaped cutout and high-low design at the airflow passthrough to optimize flow efficiency.

Software Support

• MSI Center: Exclusive software for real-time monitoring, tweaking, and optimizing MSI products.
• Afterburner: Widely used graphics card overclocking software.

Power Requirements

• Power Consumption: 180 W
• Power Connectors: 16-pin x 1
• Recommended PSU: 600 W

Physical Specifications

• Card Dimensions (mm): 300 x 125 x 44 mm
• Weight (Card / Package): 844 g / 1384 g

Software Support

• DirectX Version: 12 Ultimate
• OpenGL Version: 4.6
