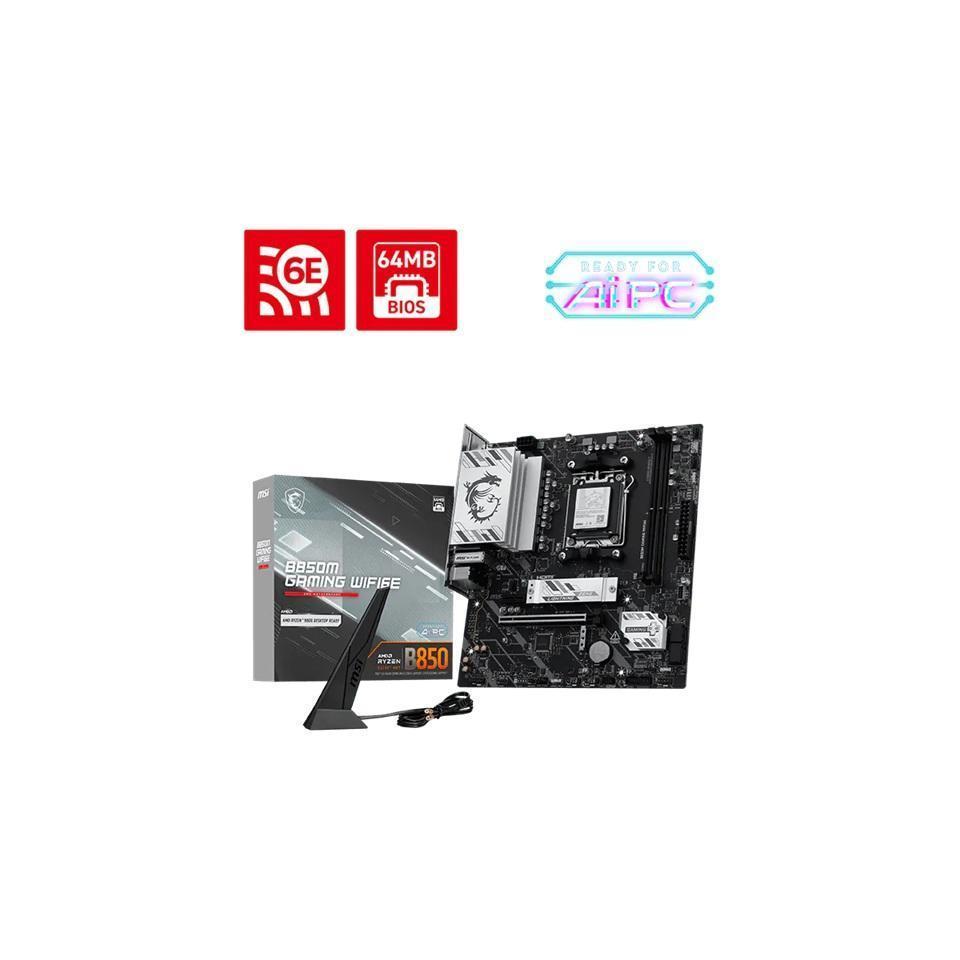

MSI B850M GAMING WIFI6E AMD B850 AM5 DDR5 128GB PCIe 5.0 M.2 Wi-Fi 6E 2.5G LAN

The MSI B850M GAMING WIFI 6E is a high-performance motherboard designed for AMD Ryzen™ 9000/8000/7000 series processors with Socket AM5 support. It features advanced connectivity options and robust memory capabilities.

Display

• HDMI™ 2.1, maximum resolution of 4K 60Hz*
• DisplayPort 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics.

Performance

• Chipset: AMD B850
• CPU Support: Ryzen™ 9000/8000/7000 series, Socket AM5
• MEMORY: 2x DDR5 UDIMM with a maximum capacity of 128GB
• PCIe Slots: 1x PCI-E x16 slot (supports PCIe 4.0), 1x PCI-E x1 slot (supports PCIe 3.0)

Storage

• M.2 slots: 2x M.2, supporting up to PCIe 5.0 x4 and PCIe 4.0 x4 respectively*
• SATA ports: 4x SATA 6G
• RAID Support: RAID 0, RAID 1 for SATA; RAID 0 and RAID 1 for M.2 NVMe

*M.2 SSD heatsink restrictions may apply.

Connectivity

• LAN: Realtek® 8125D 2.5G LAN
• Wi-Fi: Wi-Fi 6E with MU-MIMO TX/RX, up to 2.4Gbps (supports 2.4GHz/5GHz/6GHz)
• Bluetooth: Bluetooth® 5.3
• USB ports: Various USB 2.0 and USB 5Gbps Type A/C, as well as a USB 10Gbps Type C port

Other Features

• AUDIO: Realtek® ALC897 7.1-Channel High Definition Audio
• LEDs: EZ Debug LED and EZ Memory Detection LED
• SUPPORTED OS: Windows® 11 64-bit

Note: Wi-Fi 6E 6GHz may depend on country regulations, and Bluetooth 5.3 is available in Windows 10 build 21H1 and later.
