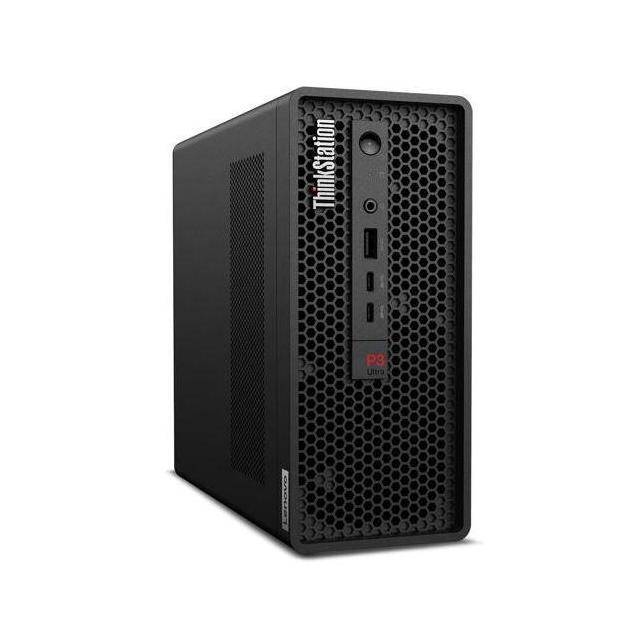

Lenovo ThinkStation P3 Ultra SFF Intel U7-265K 64GB DDR5 1TB SSD RTX A1000 GPU Desktop PC

Display

The Lenovo ThinkStation P3 Ultra SFF does not include an integrated display but supports multiple external monitors via DisplayPort™ 1.4 connections.

Performance

• Processor: Intel Core™ Ultra 7 265K, 20C (8P + 12E) / 20T, Max Turbo up to 5.5GHz, 30MB Intel® Smart Cache
• Integrated Graphics: Integrated Intel® Graphics
• Discrete Graphics: NVIDIA® RTX A1000 8GB
• Chipset: Intel® W880 Chipset
• Memory: 2x 32GB SODIMM DDR5-5600 Non-ECC, up to 128GB (2x 64GB DDR5 CSODIMM)

Storage

• Pcie NVMe Drive: 1x 1TB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe®
• SATA/SAS Drive: None

Connectivity

• Onboard Ethernet: Intel® I219-LM, 1x GbE RJ-45
• WLAN + Bluetooth: Intel® Wi-Fi® 7 BE200, 802.11be 2x2 + BT5.4, vPro®
• Front Ports:
  • 2x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2)
  • 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
  • 1x headphone / microphone combo jack (3.5mm)
• Rear Ports:
  • 4x USB-A (USB 10Gbps / USB 3.2 Gen 2)
  • 3x DisplayPort™ 1.4
  • 1x Ethernet (GbE RJ-45)
• Pcie Slots: 1x PCIe® 4.0 x8 (Onboard)

Design

• Dimensions: 87 x 223 x 202 mm (3.43 x 8.78 x 7.95 inches)
• Weight: 3.6 kg (7.94 lbs, maximum configuration)

Security and Manageability

• Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
• Physical Locks: Kensington Security Slot™, 3 x 7 mm Chassis Intrusion Switch
• System Management: Intel® vPro® Enterprise with Intel® AMT 16

Software and Certification

• Operating System: Windows® 11 Pro, English (US) / English (UK)
• Bundled Software: Lenovo® AI Now
• Certifications: MIL-STD-810H military test passed
