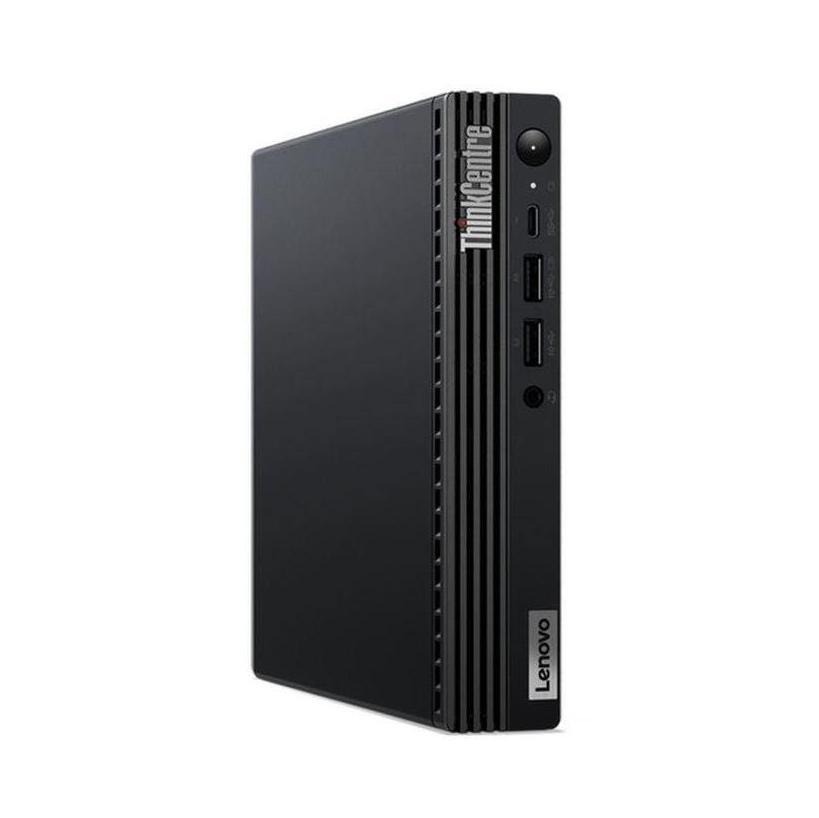

Lenovo ThinkCentre M70q G5 Tiny Desktop PC Intel i7-14700T 32GB DDR5 512GB SSD

The Lenovo ThinkCentre M70q G5 is a compact desktop PC designed for high performance and reliability in a tiny form factor. It features an Intel Core i7-14700T processor with 20 cores (8P + 12E) and up to 64GB of DDR5 memory, making it suitable for demanding tasks.

Display

• HDMI® 2.1 TMDS
• DisplayPort™ 1.4a (HBR2, DSC)

Performance

• Processor: Intel Core i7-14700T, 20C (8P + 12E) / 28T, Max Turbo up to 5.2GHz, P-core 1.3 / 5.0GHz, E-core 0.9 / 3.7GHz
• Graphics: Integrated Intel UHD Graphics 770
• Chipset: Intel Q670 Chipset
• Memory: 2x 16GB SODIMM DDR5-5600, up to 64GB (2x 32GB DDR5 SODIMM)
• Storage: 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe®
• Power Supply: 135W, 89% efficiency adapter

Connectivity

• Wi-Fi: Intel Wi-Fi 6 AX201 (802.11ax 2x2)
• Bluetooth: BT5.2
• Ethernet: Integrated 100/1000M
• Front Ports: USB-C® (USB 3.2 Gen 1), two USB-A (USB 3.2 Gen 2), headphone / microphone combo jack
• Rear Ports: USB-A (Hi-Speed USB / USB 2.0), three USB-A (two USB 3.2 Gen 1, one USB 3.2 Gen 2), HDMI® 2.1 TMDS, DisplayPort™ 1.4a, Ethernet (RJ-45)

Design

• Form Factor: Tiny (1L)
• Dimensions: 179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches)
• Weight: Around 1.25 kg (2.76 lbs)

Security and Manageability

• TPM 2.0, TCG certified, FIPS 140-2 certified
• Kensington Security Slot™

Service

Base Warranty: 3-year Onsite
