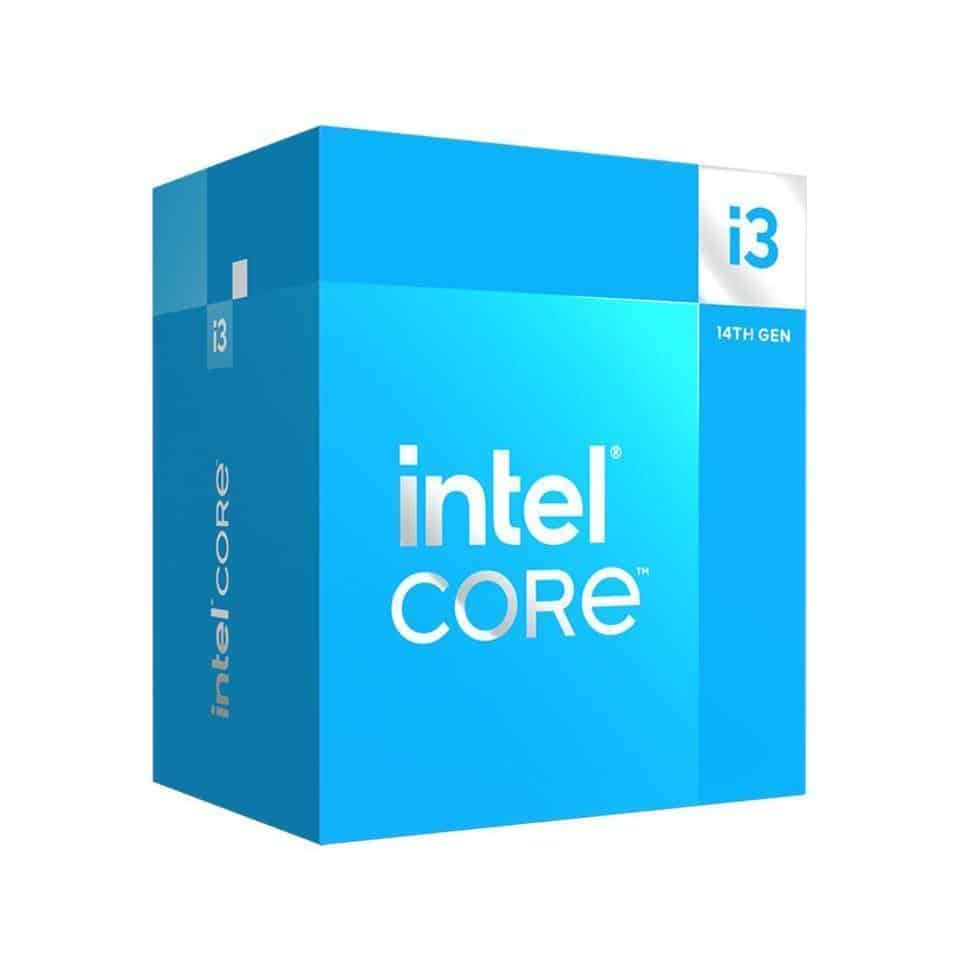

Intel i3 14100 4-Core 3.5GHz (4.7GHz) LGA1700 8-Threads 17MB Cache CPU UHD Graphics 730

The Intel i3 14100 is a powerful processor designed for efficient performance with its 4 cores and 8 threads, delivering a base frequency of 3.5GHz and a turbo boost up to 4.7GHz. It features a total cache size of 12MB Intel Smart Cache plus an additional 5MB L2 cache, making it well-suited for multitasking and demanding applications.

Performance

• Cores: 4
• Threads: 8
• Turbo Frequency: Up to 4.7GHz
• Base Frequency: 3.5GHz
• Total Cache: 12MB Intel Smart Cache + 5MB L2 Cache
• Processor Base Power: 60W
• Maximum Turbo Power: 110W

Memory Specifications

• Max Memory Size: Up to 192GB (dependent on memory type)
• Memory Types Supported: DDR5 up to 4800 MT/s, DDR4 up to 3200 MT/s
• Maximum Memory Bandwidth: 76.8 GB/s
• Number of Channels: Up to 2 channels

GPU Specifications

• Name: Intel UHD Graphics 730
• Max Dynamic Frequency: 1.5GHz
• Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
• Execution Units: 24
• DirectX Support: 12
• OpenGL Support: 4.5
• OpenCL Support: 3
• Multi-Format Codec Engines: 1
• Intel Quick Sync Video: Yes
• Intel Clear Video HD Technology: Yes
• # of Displays Supported: Up to 4

Connectivity and Expansion

• DIM Revision: 4.0
• Max DMI Lanes: 8
• PCI Express Revision: 5.0 and 4.0
• PCIe Configurations: Up to 1x16+4 | 2x8+4
• Max # of PCIe Lanes: 20

Package Specifications

• Sockets Supported: FCLGA1700
• TJUNCTION: 100°C
• Thermal Solution Specification: PCG 2020C
