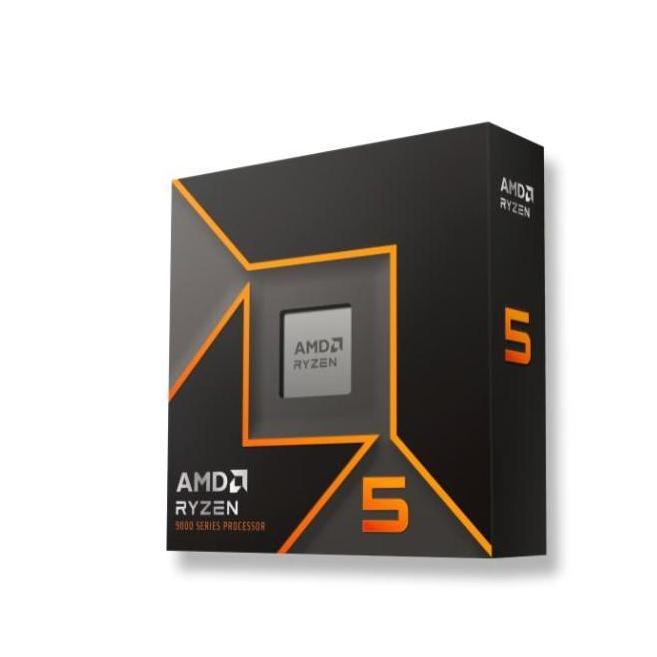

AMD Ryzen 5 9600X 6Cores 12Threads 54GHz PCIe 5.0 32MB Cache CPU

The AMD Ryzen 5 9600X is a high-performance desktop processor designed for enthusiasts. It features six cores with twelve threads and operates at a base clock speed of 3.9 GHz, boosting up to 5.4 GHz. The CPU includes 32 MB of L3 cache and supports DDR5 memory, capable of handling up to 192 GB in dual-channel configuration.

Performance

• Cores: 6
• Threads: 12
• Base Clock Speed: 3.9 GHz
• Max Boost Clock: Up to 5.4 GHz
• L1 Cache: 384 KB
• L2 Cache: 6 MB
• L3 Cache: 32 MB
• TDP: 65W
• Instruction Set: x86-64
• Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
• Technology: TSMC 4nm FinFET for CPU cores and TSMC 6nm FinFET for I/O die

Graphics

• Radeon™ Graphics with 2 graphics core count
• Frequency: 2200 MHz
• USB Type-C® DisplayPort™ Alternate Mode: Yes

Connectivity and Expansion

• PCIe Version: PCIe® 5.0
• Total Usable PCIe Lanes: Up to 24 lanes (depending on motherboard)
• NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10
• Native USB Ports: 4 x USB 3.2 Gen 2 (10Gbps), 1 x USB 2.0 (480Mbps)

Miscellaneous

• CPU Socket: AM5
• Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870
• OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
• Note: A premium air cooler is recommended for optimal performance.
