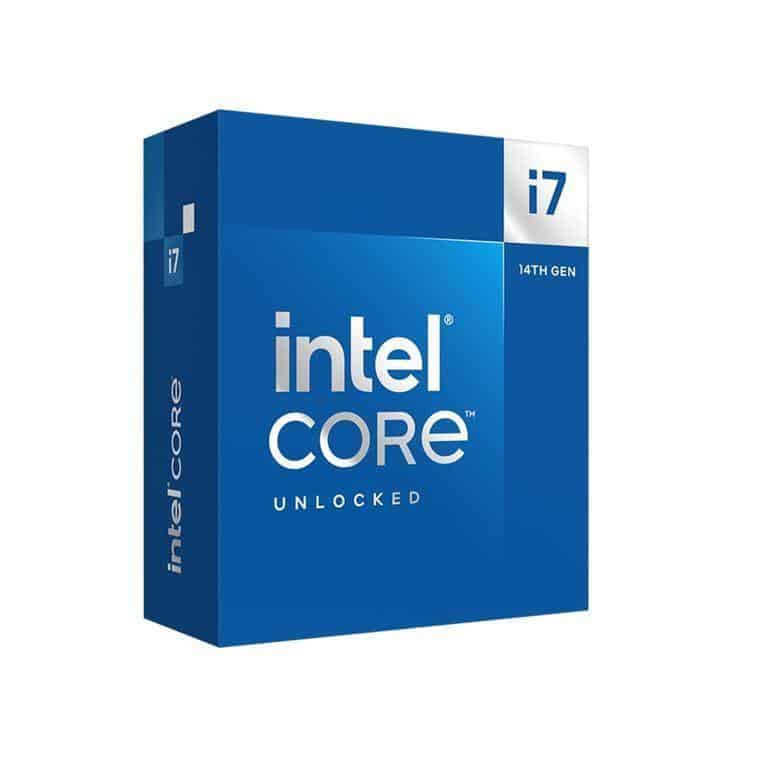

Intel Core i7 14700K 14th Gen 4.3GHz (5.6GHz Turbo) 20C 28T LGA1700 CPU

The Intel Core i7 14700K is a high-performance processor from the 14th generation featuring an advanced Raptor Lake architecture. It offers up to 20 cores and 28 threads with a base frequency of 4.3 GHz, capable of reaching a maximum turbo frequency of 5.6 GHz.

Performance

• Cores: 20 (8 Performance-cores + 12 Efficient-cores)
• Total Threads: 28
• Base Frequency: 4.3 GHz
• Turbo Boost Max Technology 3.0 Frequency: 5.6 GHz
• Performance-core Base Frequency: 3.4 GHz
• Efficient-core Base Frequency: 2.5 GHz
• Cache: 33 MB (Intel Smart Cache)
• Total L2 Cache: 28 MB
• Processor Base Power: 125 W
• Maximum Turbo Power: 253 W

Memory and Bandwidth

• Max Memory Size (dependent on memory type): Up to 192 GB
• Memory Types: DDR5 up to 5600 MT/s, DDR4 up to 3200 MT/s
• Maximum Memory Bandwidth: 89.6 GB/s
• ECC Memory Supported: Yes

Graphics

• Processor Graphics: Intel UHD Graphics 770
• Graphics Base Frequency: 300 MHz
• Graphics Max Dynamic Frequency: 1.6 GHz
• Execution Units: 32
• Max Resolution (HDMI): 4096 x 2160 @ 60 Hz
• Max Resolution (DP): 7680 x 4320 @ 60 Hz
• Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120 Hz
• Graphics Output: eDP 1.4b | DP 1.4a | HDMI 2.1
• DirectX Support: 12
• OpenGL Support: 4.5
• OpenCL Support: 3
• Multiformat Codec Engines: 2
• Intel Quick Sync Video: Yes
• Intel Clear Video HD Technology: Yes
• # of Displays Supported: 4

Connectivity and Expansion

• DMI Revision: 4.0
• Max # of DMI Lanes: 8
• Pci Express Revision: 5.0 and 4.0
• Pci Express Configurations: Up to 1x16+4 | 2x8+4
• Max # of PCI Express Lanes: 20
