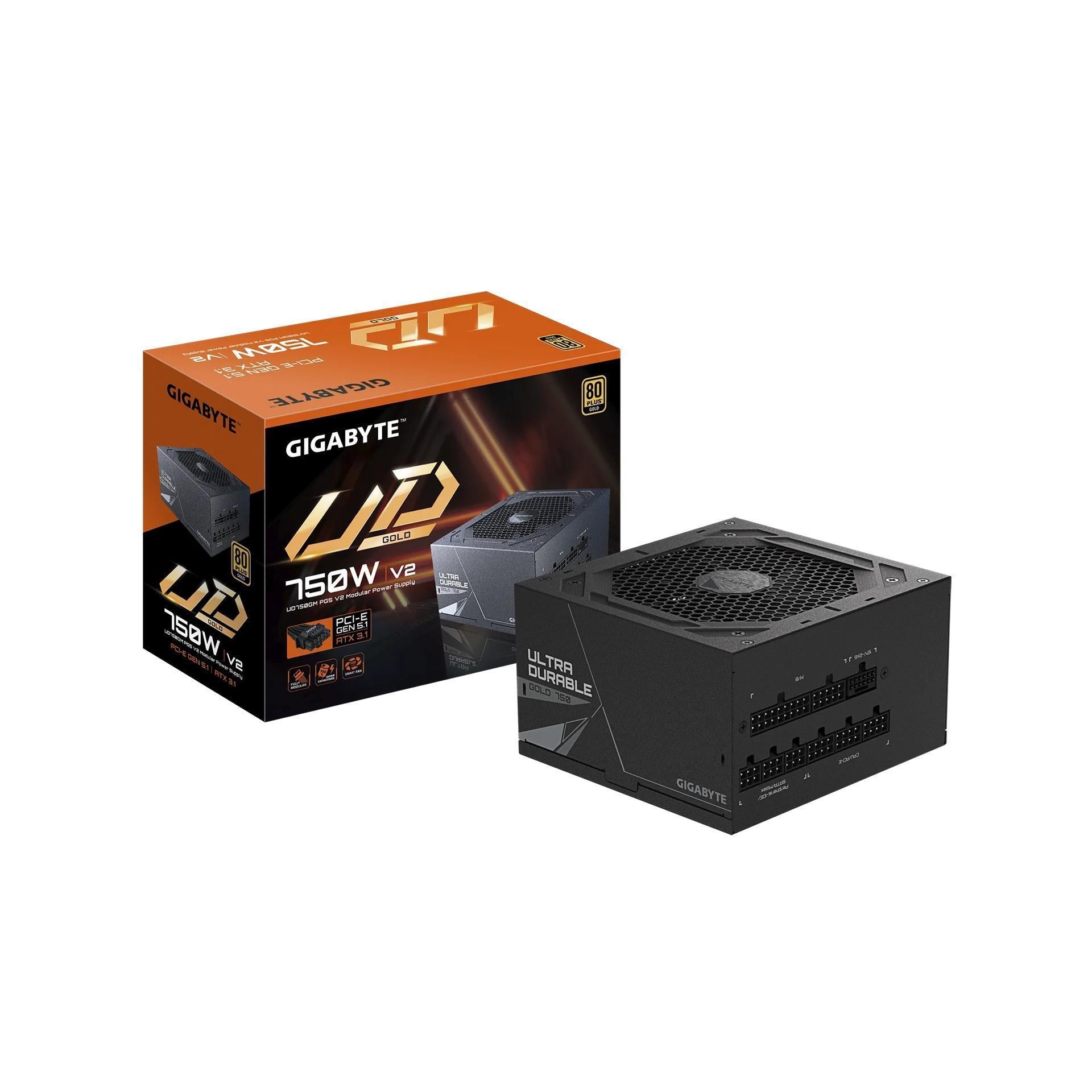

Gigabyte UD750GM PG5 V2 750W ATX Gold PSU Black Embossed Cables

The Gigabyte UD750GM PG5 V2 is a high-performance power supply unit (PSU) designed for Intel systems. It features an ATX 12V v3.1 form factor and comes with active PFC (>0.9 typical), ensuring efficient power delivery.

Performance

• Type: Intel
• Output Capacity: 750W
• Fan Type: 120mm Hydraulic Bearing (HYB) fan
• Mechanical Life Time: >100,000 hours
• Hold Up Time: >16ms
• Protection Features: OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal: 100-150ms

Efficiency

• E80 PLUS Gold certified with efficiency >90% at typical load

Connectivity

• Cable Type: Embossed, All black
• ATX/MB 20+4 Pin: 1 x 610mm
• CPU/EPS 4+4 Pin: 2 x (650mm + 200mm)
• PCI-e 6+2 Pin: 4 x (600mm + 150mm)
• PCI-e 12+4 Pin: 1 x 700mm
• SATA: 8 x (600mm + 150mm + 150mm + 150mm)
• 4-Pin Peripheral: 3
• 4-Pin Floppy: 1 x (500mm + 150mm + 150mm + 150mm)

Input Voltage and Frequency

• Input Voltage: 100-240 Vac (full range)
• Input Current: 15-6.5A
• Input Frequency: 60-50 Hz

Dimensions

• Dimension: 150 x 140 x 86mm
