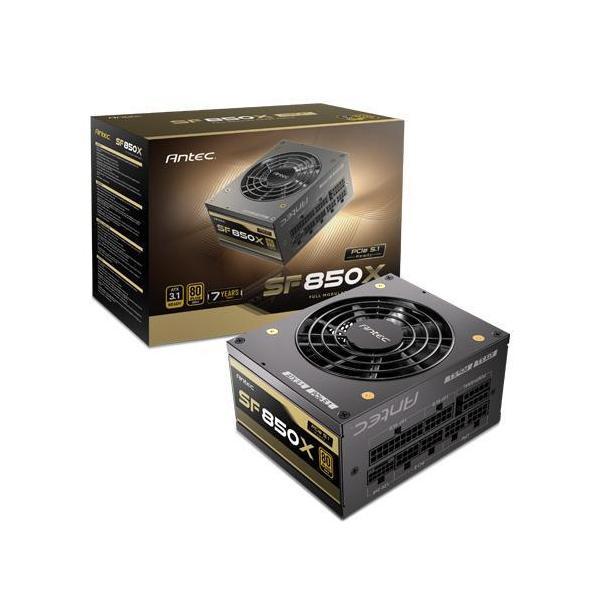

Antec SFX 850W 80+ Gold Fully-Modular ATX 3.1 PCI-E 5.1 Silent Power Supply
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Specifications
Specifications
Power
| Power Source | AC-powered |
|---|---|
| Power Supply Form Factor | SFX, ATX12V |
| Power Supply Modularity | Fully modular |
| 80 Plus Efficiency Rating | 80 Plus Gold |
Case & Build
| Material | Metal |
|---|
Dimensions
| Length | 242 mm |
|---|---|
| Width | 186 mm |
| Height | 108 mm |
Other
| Series | Antec SFX Series |
|---|---|
| Colour | Black |
Product Details
Product Details
The Antec SF850X is an 80PLUS GOLD certified power supply designed for compact gaming systems adhering to the SFX 4.1 standard. This fully modular PSU measures 100 x 125 x 63.5mm and offers high-quality performance with support for ATX 3.1 and PCIe 5.1 standards, making it suitable for the latest graphics cards like RTX 4090/RTX 5090 and XTX 7900/8900X.
Performance
- Power output: 850W
- Certifications: 80 Plus Gold
- PFC: Active PFC
- Fan: 92mm silent fan
- Protection features: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Connectivity and Cabling
- 1 x 24-pin motherboard connector (20+4 pin)
- 1 x 16-pin PCIe 5.1 12VHPWR
- 2 x 8-pin CPU connectors (4+4 pin)
- 4 x 6/2-pin PCI-E connectors
- 6 x SATA power connectors
- 2 x Molex connectors
Dimensions and Warranty
- Dimensions: 100mm (L) x 125mm (W) x 63.5mm (H)
- Modular type: Full-Modular
- Warranty: 7 years
Environmental Specifications
- Input voltage range: 100V - 240V
- Input current range: 12A - 6A
- Frequency range: 50Hz - 60Hz
- Operating temperature range: 0°C to 40°C
Certifications and Compliance
- cTUVus / TUV / CB / RCM / CE / FCC BIS / BSMI / KC / UKCA / ICES / CCC
