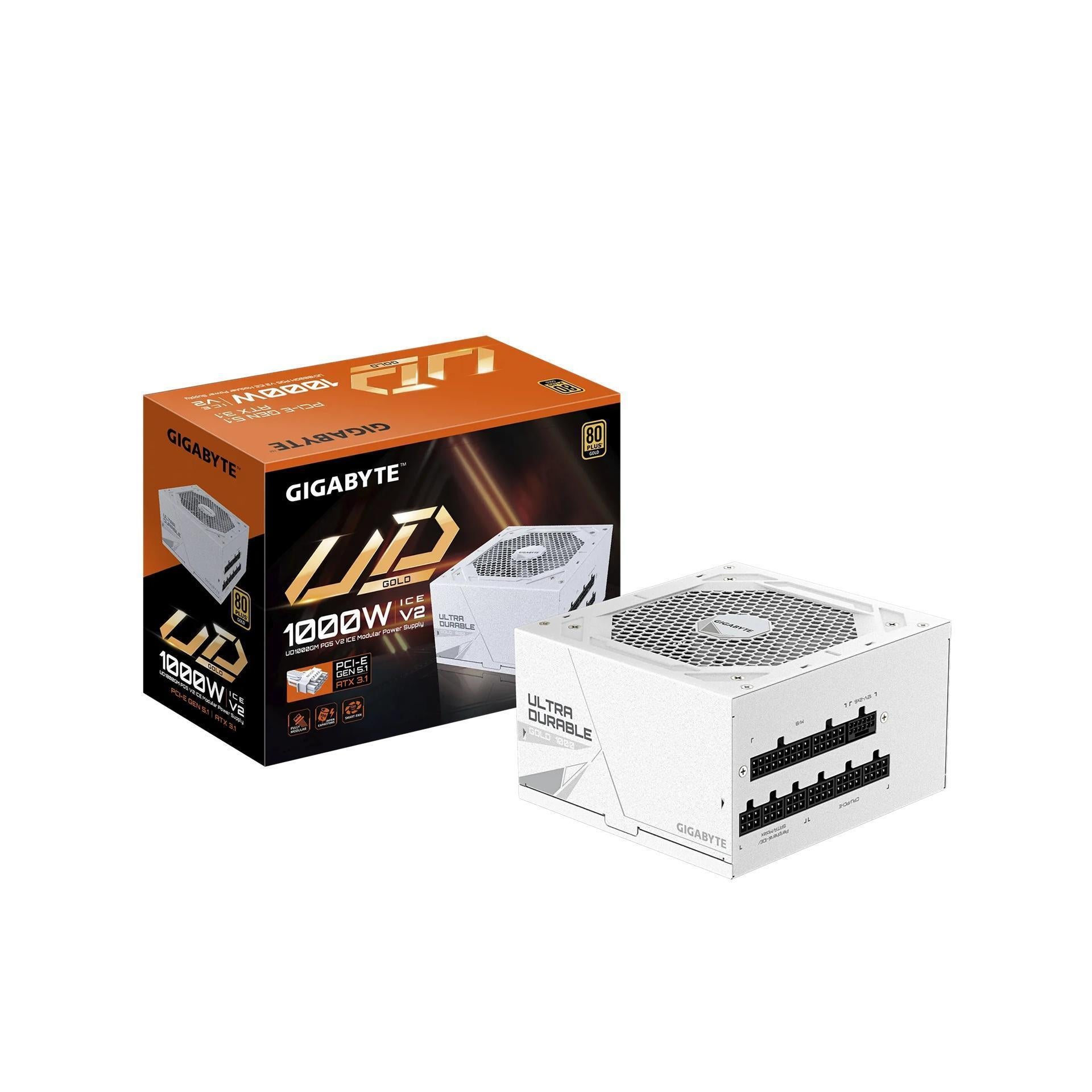

Gigabyte UD1000GM PG5 ICE 1000W ATX Gold PSU 120mm Fan Black Flat Cables

The Gigabyte UD1000GM PG5 ICE is an 80 Plus Gold certified power supply unit (PSU) designed for high-performance PC builds. It features a fully modular design with flat black cables and supports Intel ATX 3.0 standards, including PCIe Gen 5.0 graphics cards.

Performance

• Output capacity: 1000W
• Efficiency rating: 80 Plus Gold (90% at typical load)
• Mechanical reliability: Mean Time Between Failures (MTBF) >100,000 hours

Protection Features

• OVP/OPP/SCP/UVP/OCP/OTP protection

Fan and Cooling

• Fan type: 120mm Hydraulic Bearing (HYB) fan
• Noise reduction through smart fan control

Connectivity

• Cable types: Flat, black
• Connectors:
• ATX/MB 20+4 Pin x 1 (610mm)
• CPU/EPS 4+4 Pin x 2 (600mm + 200mm)
• PCI-e 16 Pin x 1 (700mm)
• PCI-e 6+2 Pin x 4 (600mm + 150mm x 2)
• SATA x 8 (600mm + 150mm x 3)
• 4-Pin Peripheral x 3 + 4-Pin Floppy x 1 (500mm + 120mm x 3)

Warranty and Support

• Warranty: 10 years (adjusted according to different regions)
