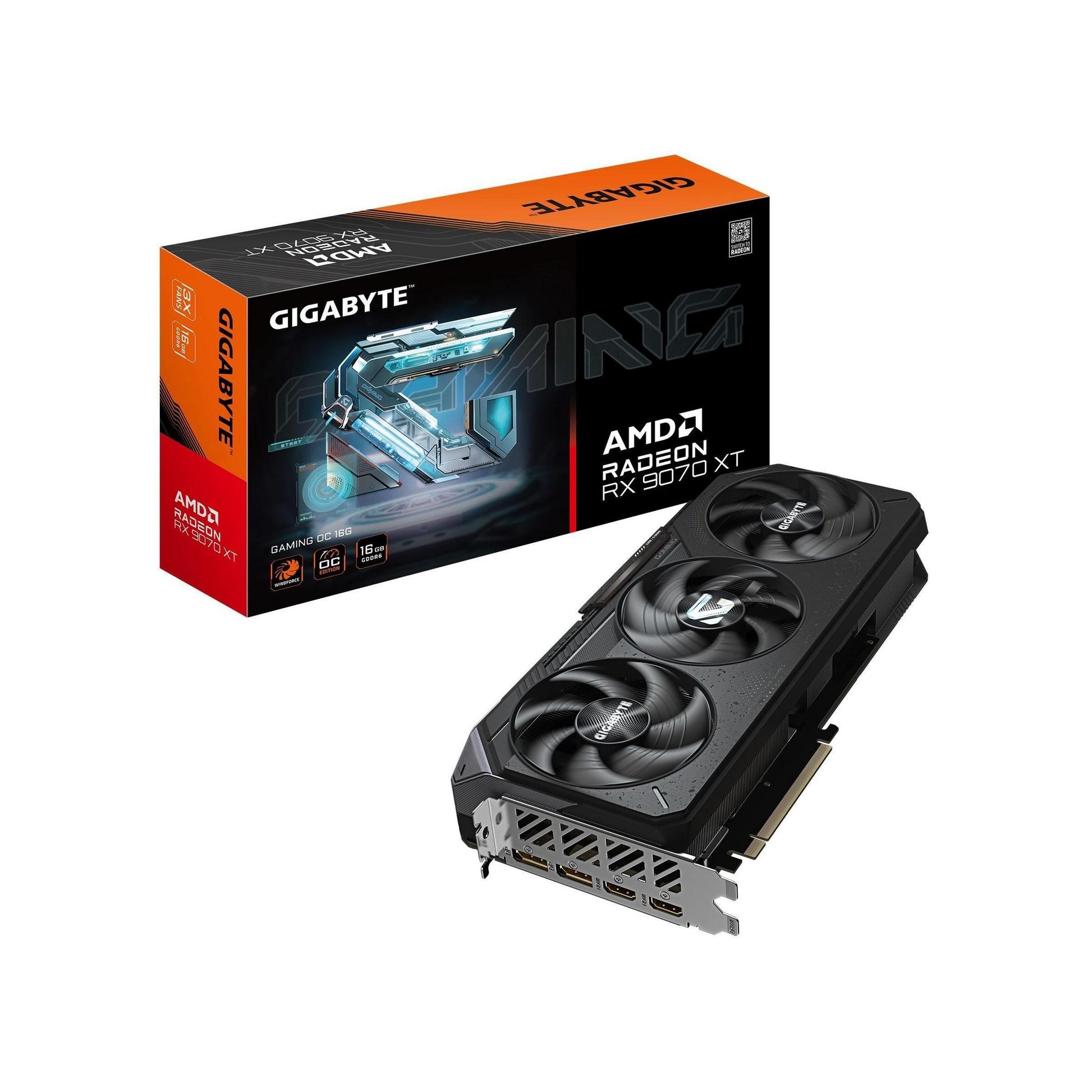

Gigabyte Radeon RX 9070 XT GAMING OC 16GB GDDR6 PCI-E 5.0 Graphics Card

The Gigabyte Radeon™ RX 9070 XT GAMING OC 16G is a high-performance graphics card designed for demanding gaming and professional workloads. It features an integrated 16GB GDDR6 memory with a 256-bit interface, delivering exceptional performance and reliability.

Display

• Maximum digital resolution: 7680x4320
• Outputs: DisplayPort 2.1a x2, HDMI 2.1b x2

Performance

• Graphics Processing Unit (GPU): Radeon™ RX 9070 XT
• Core Clock Boost: Up to 3060 MHz (Reference card: 2970 MHz)
• Game Clock: Up to 2520 MHz (Reference card: 2400 MHz)
• Stream Processors: 4096

Memory

• Type: GDDR6
• Size: 16GB
• Clock Speed: 20 Gbps
• Bus Width: 256 bit

Connectivity and Power

• Card Bus Interface: PCI-E 5.0
• Recommended PSU: 850W
• Power Connectors: 8 pin x3

Features

The GAMING series card includes the WINDFORCE cooling system with server-grade thermal conductive gel, Hawk fans, and a reinforced structure. It also features RGB lighting with over 16 million customizable colors and numerous effects.

• WINDFORCE Cooling System: Combines cutting-edge technologies for exceptional thermal performance.
• Astonishing Exterior Design: Futuristic armor-inspired design for powerful durability.
• Multilayered Visuals: Unique textures and varied surface material finishes.
• RGB Lighting: Customizable with 16.7M color options via GIGABYTE CONTROL CENTER.
• Sliding Side Plate: Power armor design for customizable build aesthetics.
• Dual BIOS (Performance / Silent): Switch between performance and silent modes.

The card measures 288mm in length, 132mm in width, and 56mm in height, fitting into an ATX form factor. It supports DirectX 12 API and OpenGL 4.6 for compatibility with the latest software environments.
