Sold out
GIGABYTE

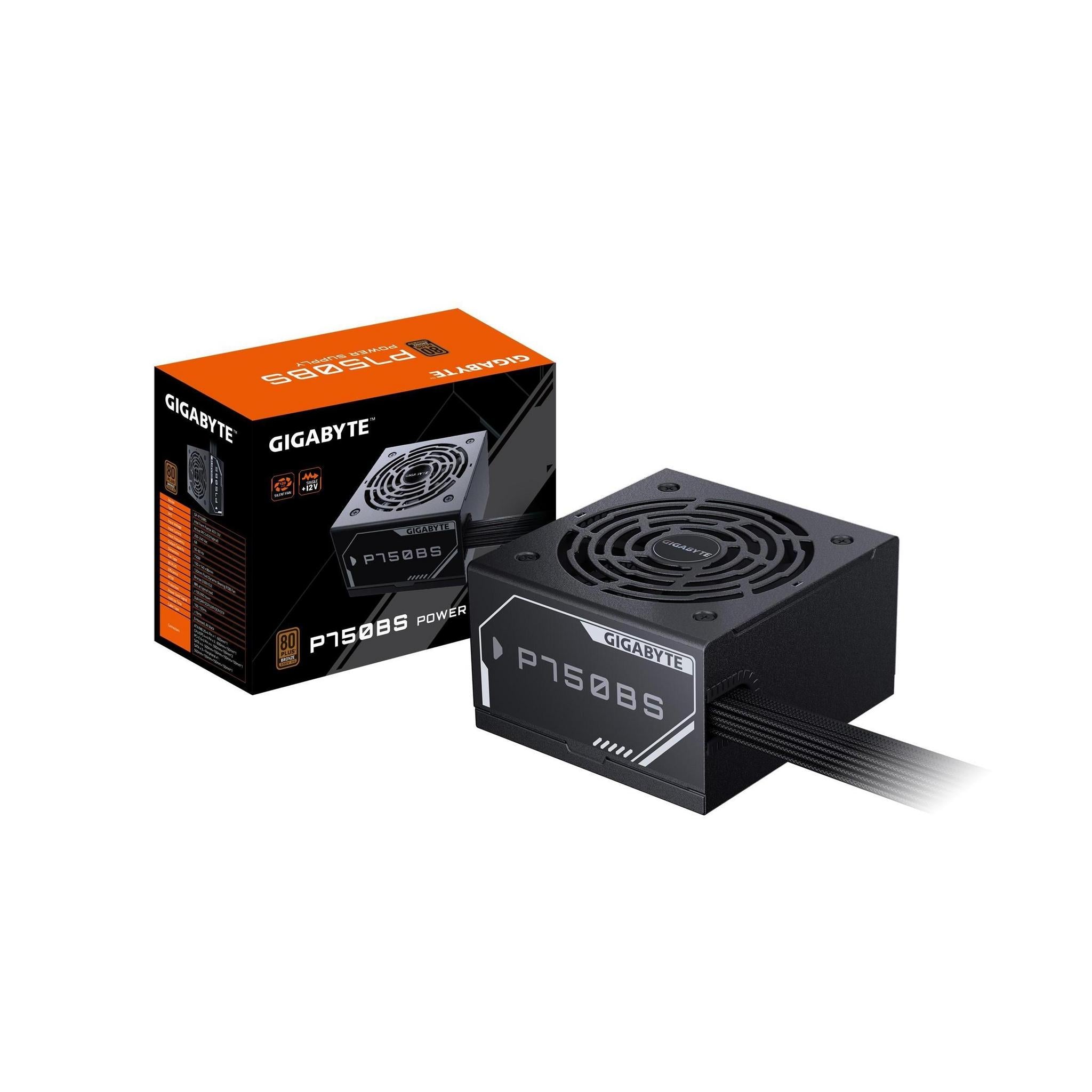

Gigabyte P750BS 750W ATX 80 PLUS Bronze 120mm Fan Power Supply
Regular price
Sale price
$79.86
Regular price
$199.58
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Power
| Power Source | AC-powered |
|---|---|
| Power Supply Form Factor | ATX, ATX12V |
| 80 Plus Efficiency Rating | 80 Plus Bronze |
Dimensions
| Length | 256 mm |
|---|---|
| Width | 214 mm |
| Height | 118 mm |
Other
| Series | GIGABYTE P-Series |
|---|---|
| Colour | Black |
Product Details
Product Details
The Gigabyte P750BS is a high-performance power supply unit designed for reliable and efficient operation in desktop computers. It features an ATX form factor with 80 PLUS Bronze certification, ensuring energy efficiency at typical loads.
Performance
- Output Capacity: 750W
- Efficiency Rating: 88% at typical load
- Mechanical Life Expectancy: >100,000 hours
- Protection Features: OVP/OPP/SCP/UVP/OCP/OTP
- Hold Up Time: >16ms
Fan and Cooling
- Fan Type: 120mm Fluid Dynamic Bearing (FDB) Fan
Connectivity
- Cable Type: Embossed, All black
- ATX/MB Connector: 20+4 Pin x 1 : 600mm*1
- CPU/EPS Connector: 4+4 Pin x 2 : 600mm+150mm*1
- PCI-E Connector: 6+2 Pin x 4 : 500mm+150mm*2
- SATA Connectors: SATA x 4 : 500mm+150mm+150mm+150mm*1, SATA x 3 + Peripheral x1 : 500mm+150mm+150mm+150mm*1
Technical Specifications
- Type: Intel Form Factor ATX 12V
- PFC Type: Active PFC (>0.9 typical)
- Input Voltage: 200-240 Vac
- Input Current: 6A
- Input Frequency: 60-50 Hz
- Dimensions: 150 x 140 x 86 mm
- Warranty: 3 years
Warranty
Warranty
Manufacturer warranty 60 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
