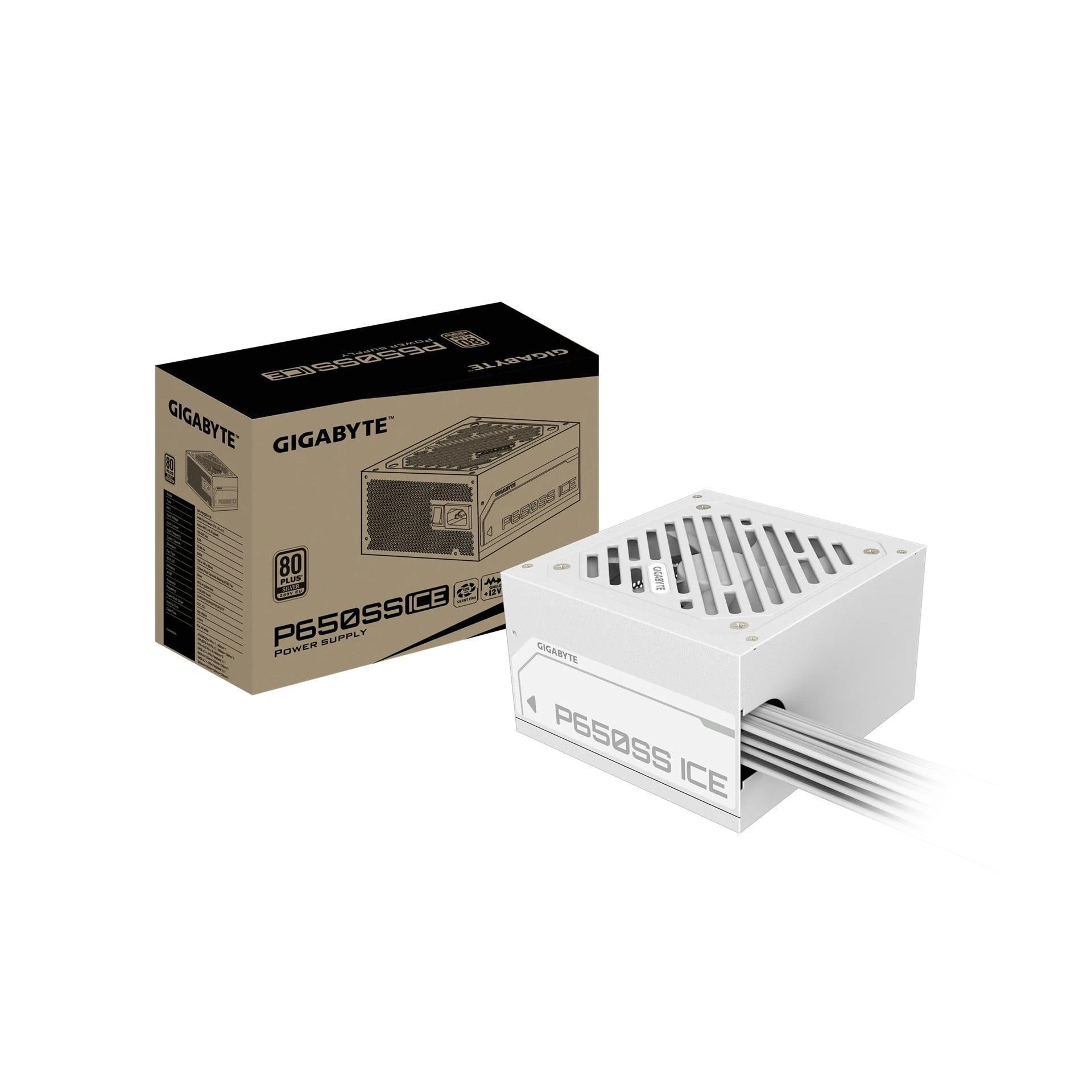

Gigabyte GP-P650SS ICE 650W ATX Silver PSU 120mm Fan

The Gigabyte GP-P650SS ICE is a high-performance power supply unit (PSU) designed for reliable and efficient operation in desktop computers. It features an 80 PLUS Silver certification with active PFC, ensuring energy efficiency at typical loads.

Performance

• Output Capacity: 650W
• Mechanical Life: >100,000 hours
• Hold Up Time: >16ms

Display

• Fan Type: 120mm Fluid Dynamic Bearing (FDB) fan
• Noise Level: Not specified

Connectivity

• Cable Type: Flat, all black cables
• Connectors:
  • ATX/MB 20+4 Pin x 1 (600mm)
  • CPU/EPS 4+4 Pin x 2 (650mm + 120mm)
  • PCI-e 6+2 Pin x 2 (600mm each)
  • SATA x 3 + 4 Pin Peripheral x 1 (500mm + 120mm + 120mm + 120mm)
  • SATA x 2 + 4 Pin Peripheral x 2 (500mm + 120mm + 120mm + 120mm)

Technical Specifications

• Type: Intel ATX 12V v3.0
• PFC Type: Active PFC (>0.9 typical)
• Input Voltage Range: 155-240 Vac
• Input Current: 6.3A
• Input Frequency: 50-60 Hz
• Efficiency Rating: 80 PLUS Silver (90% at typical load, 230V EU)
• Protection Features: OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal: 100-500ms

Physical Dimensions

• Dimensions: 150 x 140 x 86 mm
