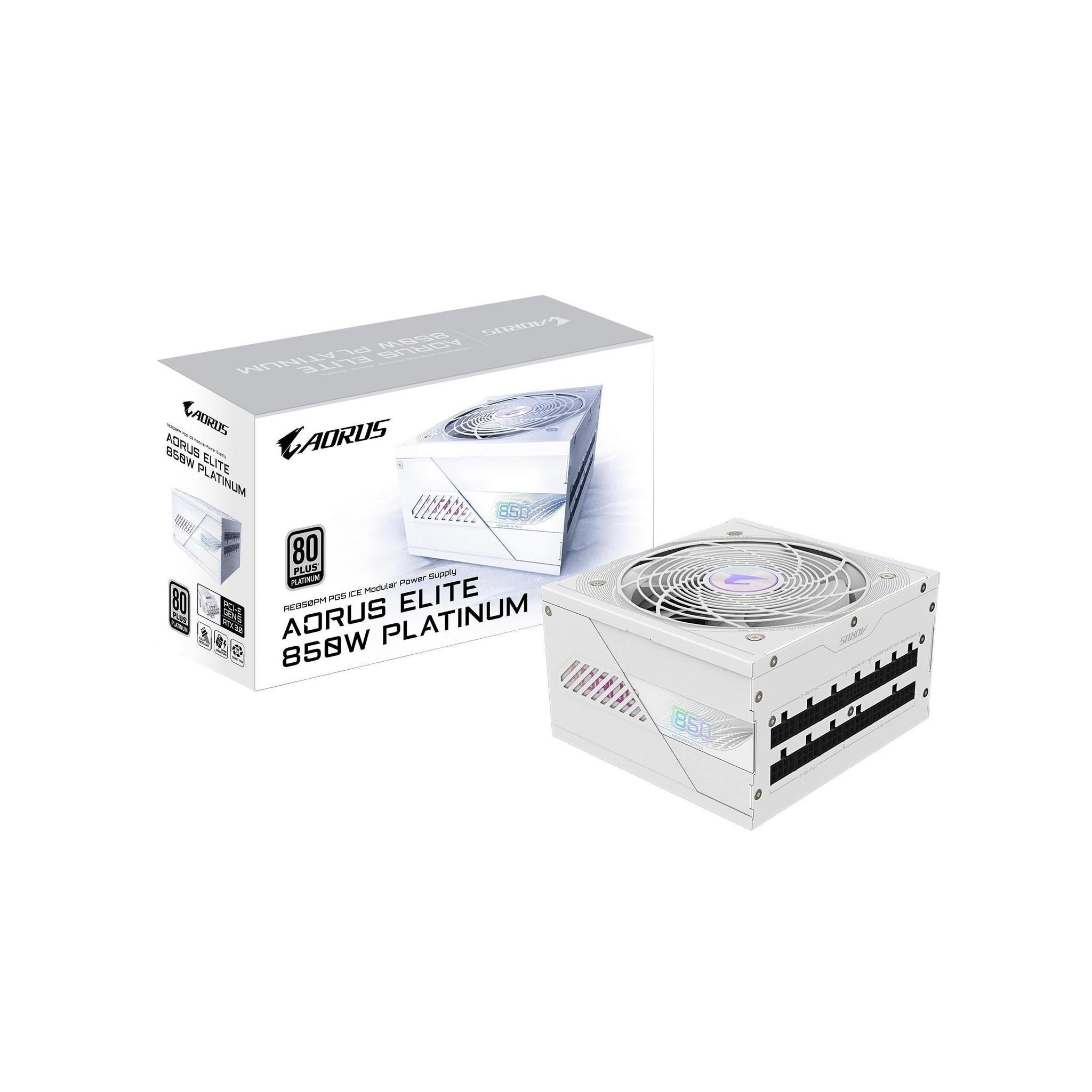

Gigabyte GP-AE850PM PG5 ICE 850W ATX Platinum PSU 120mm Fan
Hurry up, only 2 items left in stock.
Couldn't load pickup availability
Specifications
Specifications
Power
| Power Source | AC-powered |
|---|---|
| Power Supply Form Factor | ATX |
| 80 Plus Efficiency Rating | 80 Plus Platinum |
Dimensions
| Length | 344 mm |
|---|---|
| Width | 210 mm |
| Height | 124 mm |
Other
| Series | AORUS ELITE |
|---|---|
| Colour | Black, Platinum |
Product Details
Product Details
The Gigabyte GP-AE850PM PG5 ICE is an 850W power supply unit (PSU) designed for high-performance ATX systems. It features a single 120mm Fluid Dynamic Bearing (FDB) fan and achieves 80 PLUS Platinum efficiency with a typical load of 92%. The PSU supports full-range input voltage (100-240 Vac) and includes comprehensive protection features such as OVP, OPP, SCP, UVP, OCP, and OTP.
Performance
- Output Capacity: 850W
- Efficiency Rating: 80 PLUS Platinum (92% at typical load)
- Mechanical Life Expectancy: >100,000 hours MTBF
Connectivity and Cables
- Cable Type: Flat, all white
- ATX/MB 20+4 Pin x 1 (650mm)
- CPU/EPS 4+4 Pin x 2 (700mm each)
- PCI-e 16 Pin x 1 (700mm)
- PCI-e 6+2 Pin x 6 (various lengths)
- SATA x 8 (600mm + 150mm segments)
- 4 Pin Peripheral x 4 (500mm + 150mm segments)
Dimensions and Specifications
- Form Factor: ATX 12V v3.0
- PFC Type: Active PFC (>0.9 typical)
- Input Voltage Range: 100-240 Vac (full range)
- Input Current: 12-6A
- Input Frequency: 60-50 Hz
- Fan Type: 120mm Fluid Dynamic Bearing (FDB) Fan
- Dimensions: 150 x 140 x 86mm
- Hold Up Time: >16ms
- Power Good Signal: 100-150ms
Warranty
Warranty
Manufacturer warranty 120 Months
