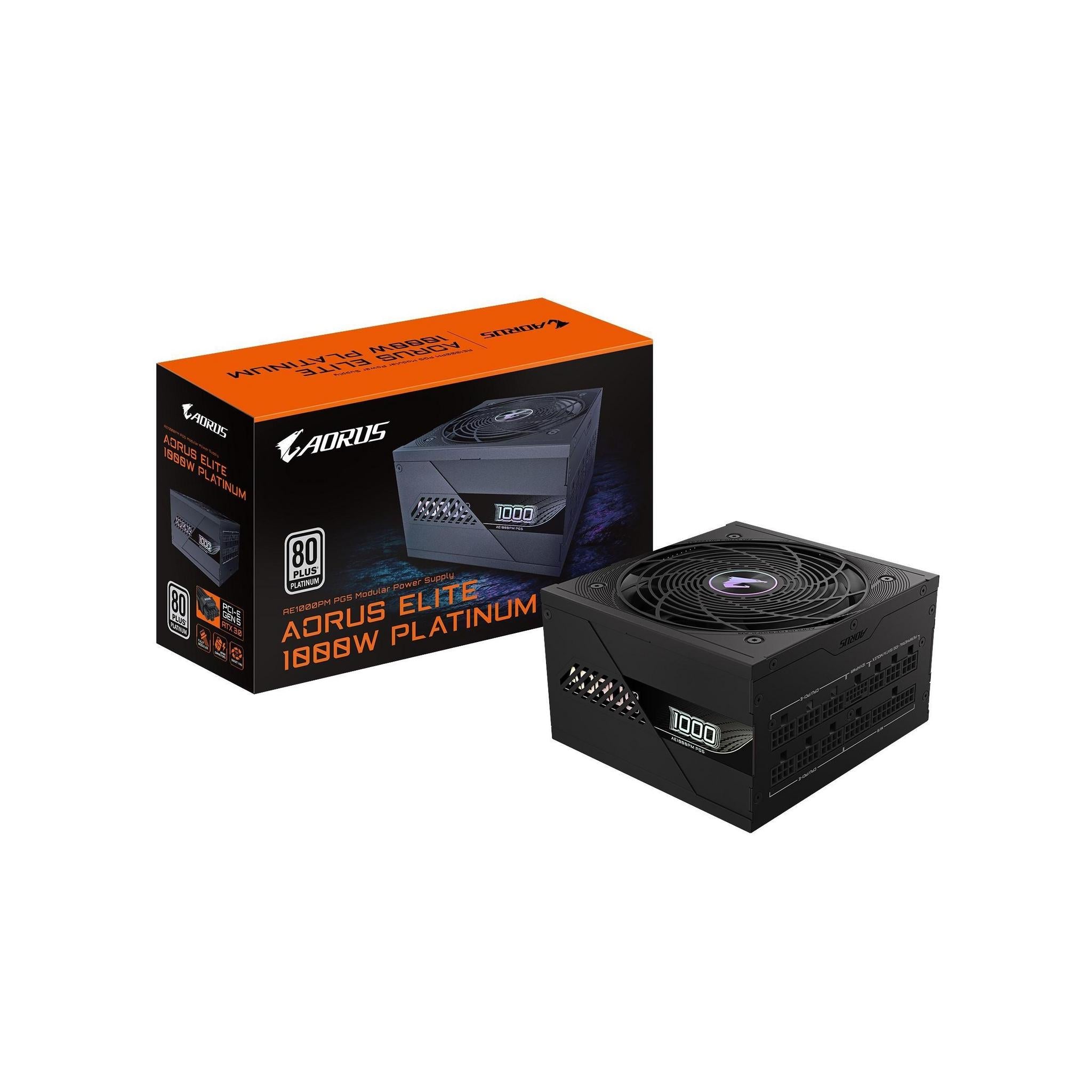

Gigabyte GP-AE1000PM PG5 1000W ATX Platinum PSU 120mm Fan

The Gigabyte GP-AE1000PM PG5 is a high-performance power supply unit (PSU) designed for demanding PC builds. It features an ATX 12V v3.0 form factor with active PFC and delivers up to 1000W of power efficiency rated at 80 PLUS Platinum level, achieving 92% efficiency at typical load conditions.

Performance

• Output Capacity: 1000W
• Efficiency Rating: 80 PLUS Platinum (92% at typical load)
• Mechanical Life: >100,000 hours
• Hold Up Time: >16ms

Fan and Cooling

• 120mm Fluid Dynamic Bearing (FDB) Fan

Protection Features

• OVP/OPP/SCP/UVP/OCP/OTP Protection
• Power Good Signal: 100-150ms

Connectivity and Cables

• Cable Type: Flat, All black
• ATX/MB 20+4 Pin x 1 (650mm)
• CPU/EPS 4+4 Pin x 2 (700mm each)
• PCI-e 16 Pin x 1 (700mm)
• PCI-e 6+2 Pin x 6 (various lengths)
• SATA Connectors: 8 (multiple lengths)
• 4 Pin Peripheral x 4 (500mm + multiple 150mm cables)

Electrical Specifications

• Input Voltage: 100-240 Vac (full range)
• Input Current: 15-6.5A
• Input Frequency: 60-50 Hz

Dimensions

150 x 140 x 86mm
