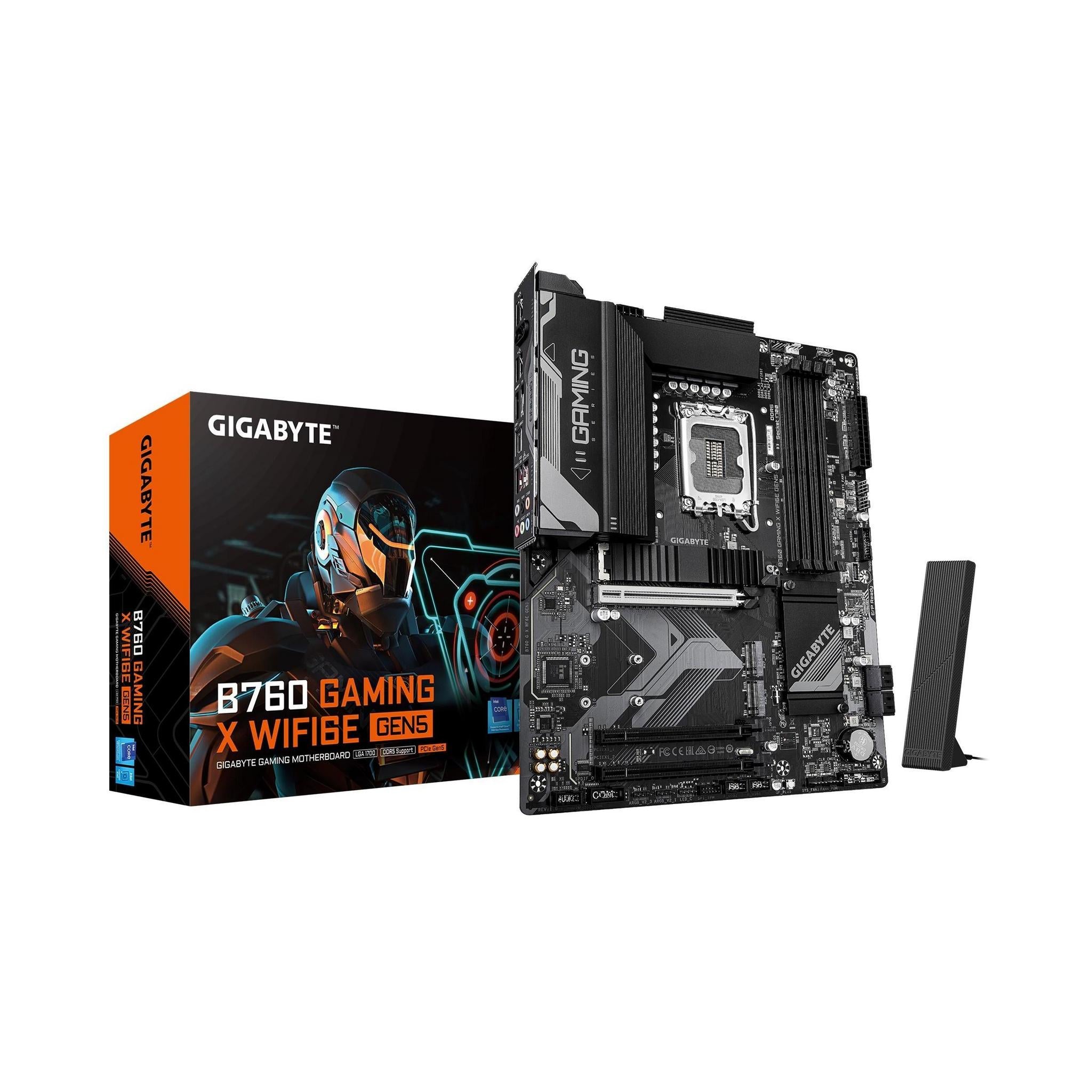

Gigabyte B760 GAMING X WiFi 6E DDR5 ATX Motherboard

The Gigabyte B760 GAMING X WiFi 6E is an advanced ATX motherboard designed for Intel LGA 1700 sockets, supporting the latest 14th, 13th, and 12th Generation Intel Core processors, including Pentium Gold and Celeron models. It features a robust set of connectivity options and high-performance storage solutions.

Display

• 1 x DisplayPort supporting up to 4096x2304@60 Hz (HDCP 2.3 compatible)
• 1 x HDMI port supporting up to 4096x2160@60 Hz (HDMI 2.1 TMDS compatible)

Performance

• CPU: 1 x PCI Express x16 slot, PCIe 5.0 running at x16
• Chipset: 2 x PCI Express x16 slots, PCIe 3.0 running at x1

Storage

• CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
• Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors supporting RAID 0, 1, 5, and 10 configurations

Connectivity

• Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support (internal header)
• Back Panel Connectors:
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 1 x USB Type-C port, USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 port
  • 5 x USB 2.0/1.1 ports
  • 2 x antenna connectors (WiFi 6E)
  • 1 x RJ-45 port
  • 6 x audio jacks
