CORSAIR

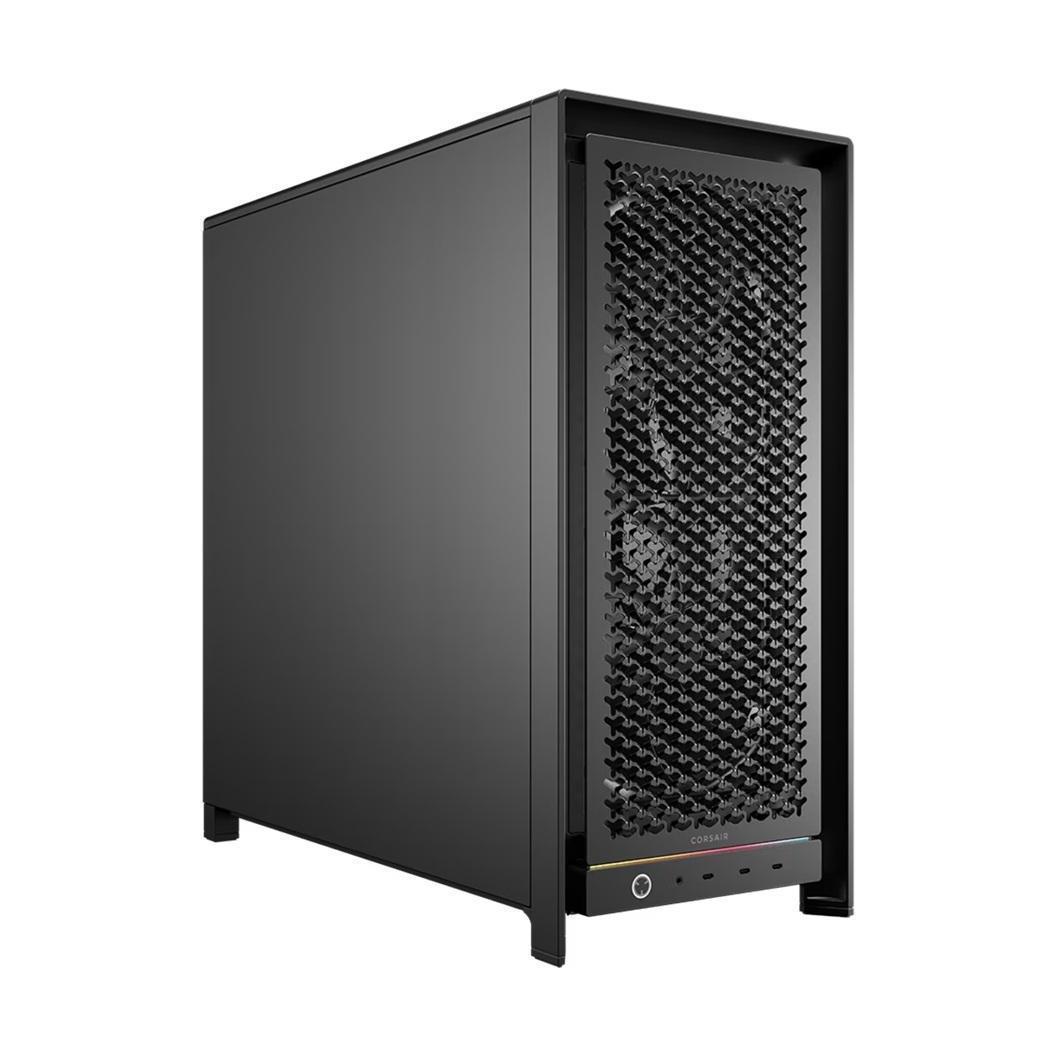

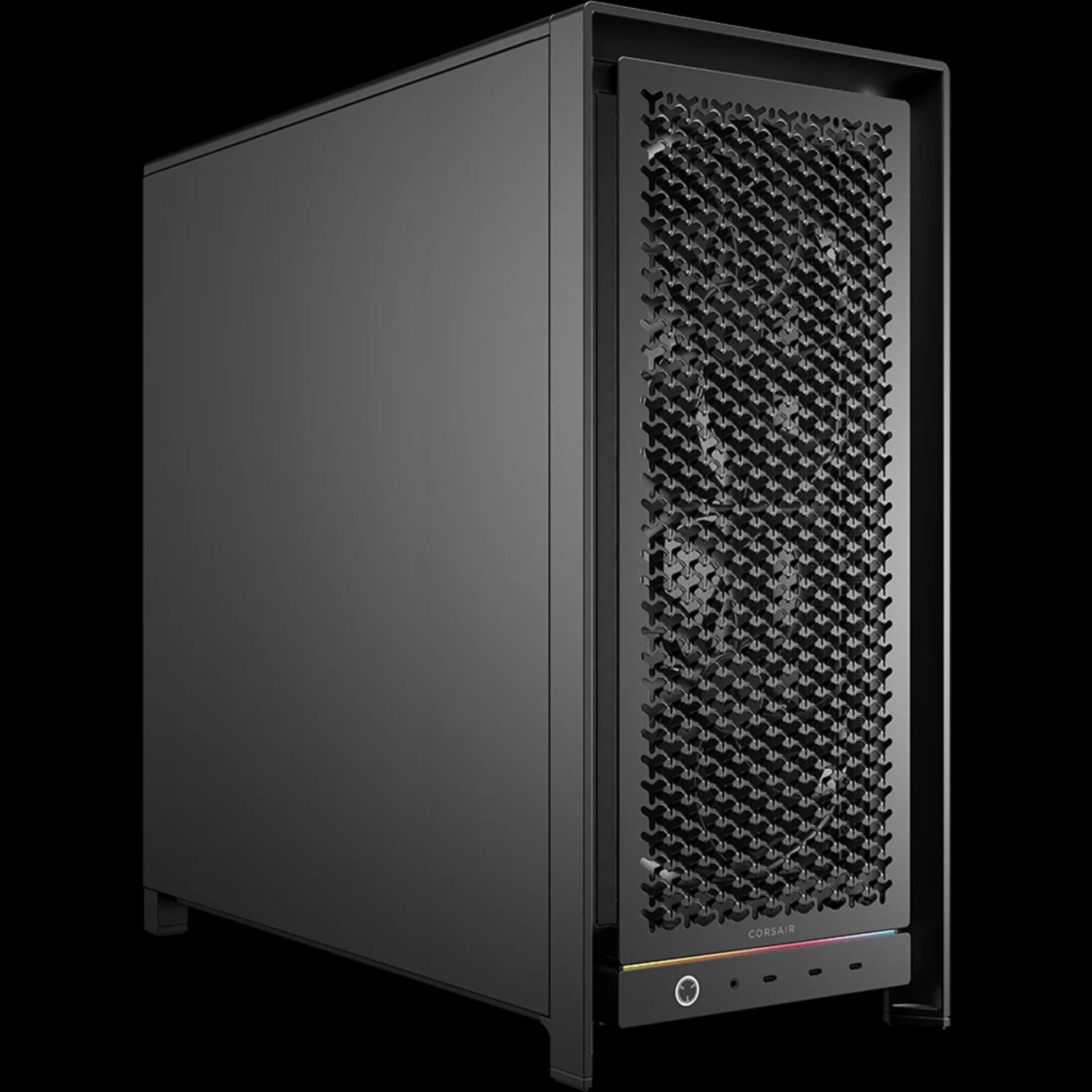

Corsair FRAME 5000D Workstation E-ATX Mid-Tower Case Black Tempered Glass
Regular price
Sale price
$292.20
Regular price
$317.90
Tax included.
Shipping calculated at checkout.
Out of stock
Trim:Workstation
- RS Airflow
- RS ARGB Airflow
- Workstation
Colour:Black
- Black
- White
Couldn't load pickup availability
Specifications
Specifications
Graphics
| Max. GPU Length | 450 mm |
|---|
Expansion & Slots
| Expansion Slot Types | PCIe |
|---|
Cooling & Fans
| Max. CPU Cooler Height | 175 mm |
|---|---|
| Included Fan Count | 2 |
Case & Build
| Tempered Glass Panel | Yes |
|---|---|
| Chassis Type | Mid tower, Tower |
| Side Panel Style | Tempered glass window, Solid steel, Sound-dampened panel |
| Material | Plastic, Steel, Glass, Metal |
| Compatible Motherboard Form Factor | Extended ATX, ATX, Mini-ITX, Micro-ATX |
| Compatible Power Supply Form Factor | ATX |
Other
| Colour | Black |
|---|
Product Details
Product Details
The Corsair FRAME 5000D WORKSTATION is a mid-tower case designed for high-performance builds with a focus on airflow and compatibility. It features a black finish and tempered glass side panel.
Display
- Tempered glass window
Performance
- Dual 200mm intake fans for quiet, powerful airflow
- Supports up to E-ATX motherboard size (305mm x 277mm)
- 9 PCI slots for multi-GPU configurations
- GPU immobilization and anti-sag options
- Vertical mount support (riser card sold separately)
Storage

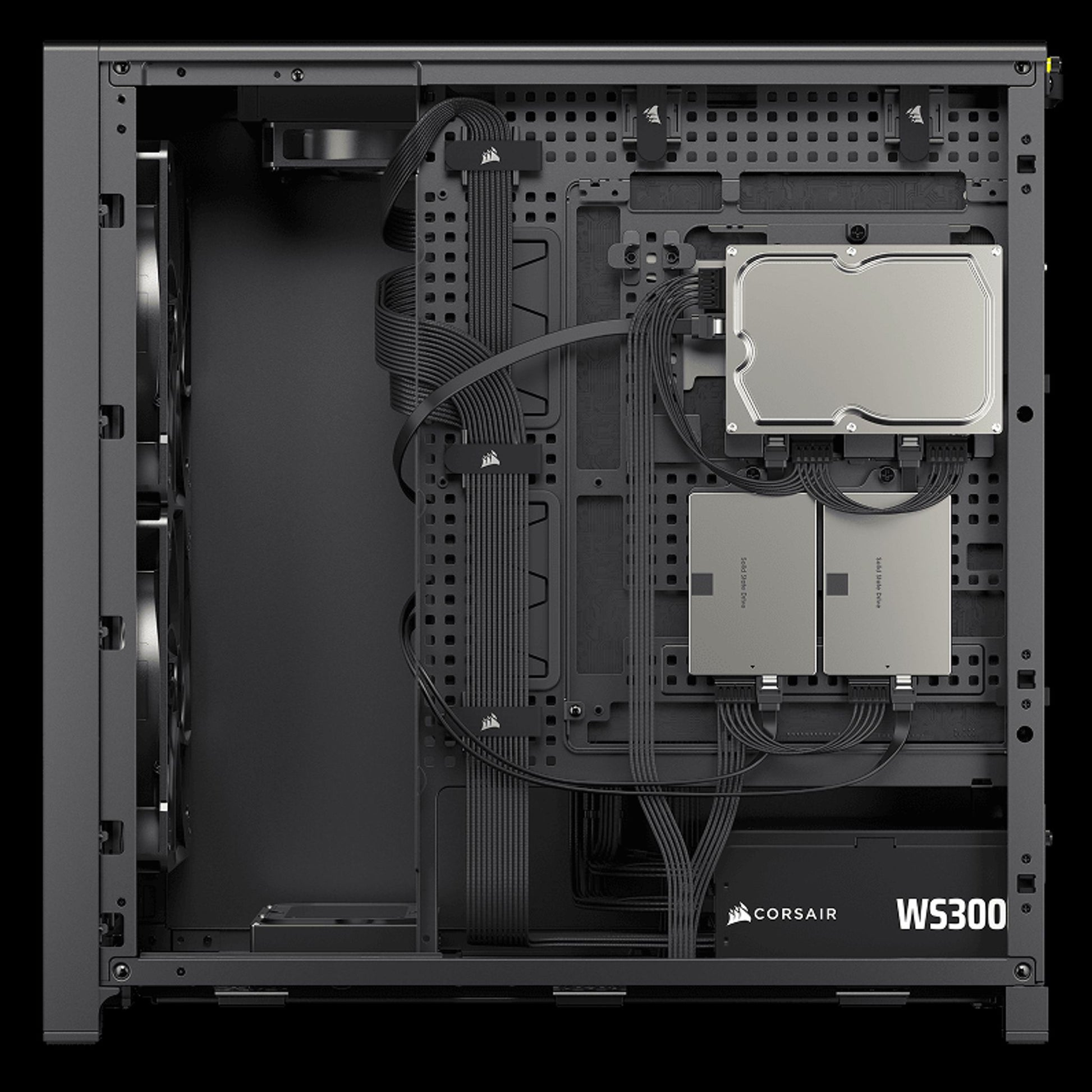

- RapidRoute cable management system included
- Cable routing space of 42mm
Connectivity
- Front IO: USB 3.2 Gen 2x2 Type-C, two USB 3.2 Gen 1 Type-A ports, audio in/out
- Motherboard connections: USB-3.2 Gen2x2 Type-E, USB 3.2 Gen1 20-Pin, F_PANEL, HD Audio reverse connector
Compatibility
- Supports Mini-ITX, Micro-ATX, ATX, E-ATX motherboards
- Maximum CPU cooler height: 175mm
- Maximum GPU length: 450mm

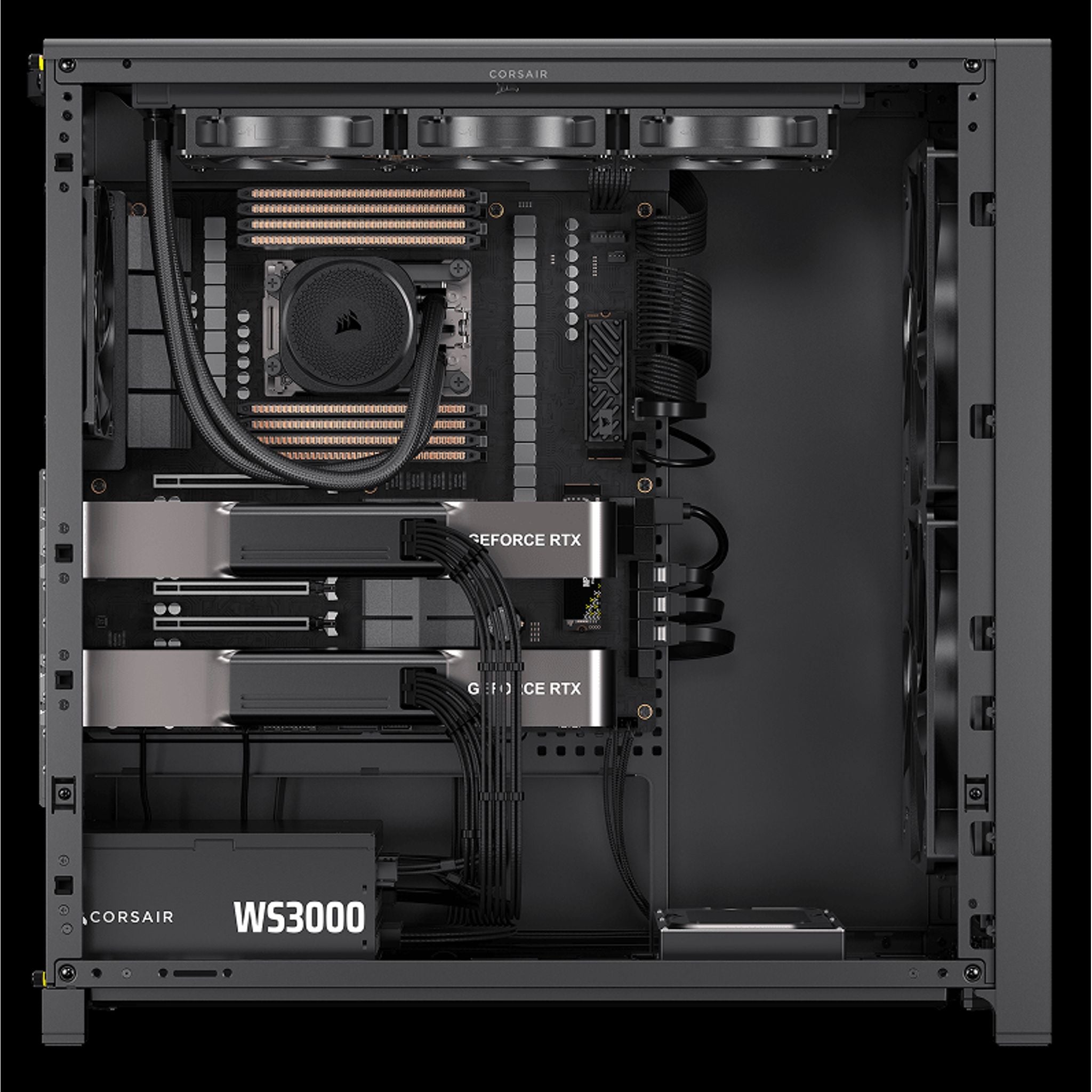

- Liquid cooling support for H60, H100, H115, H150, NAUTILUS, TITAN coolers
- Radiator support: Top - 420mm, 360mm, 280mm, 240mm; Front - 360mm, 280mm, 240mm; Side - 360mm, 280mm, 240mm; Rear - 140mm, 120mm
- Fan support: Top - 3x 120mm, 3x 140mm; Front - 3x 120mm, 3x 140mm, 2x 200mm; Bottom - 4x 120mm; Side - 3x 120mm, 3x 140mm; Rear - 1x 140mm, 1x 120mm
- Reverse-connector motherboard support
Dimensions and Weight
- Height: 542mm
- Length: 556mm
- Width: 250mm
- Weight: 15.48kg
Features
- Steel side panels with sound dampening material
- Dust filtration system included
- Optional UV printing and custom hardware configurations available
