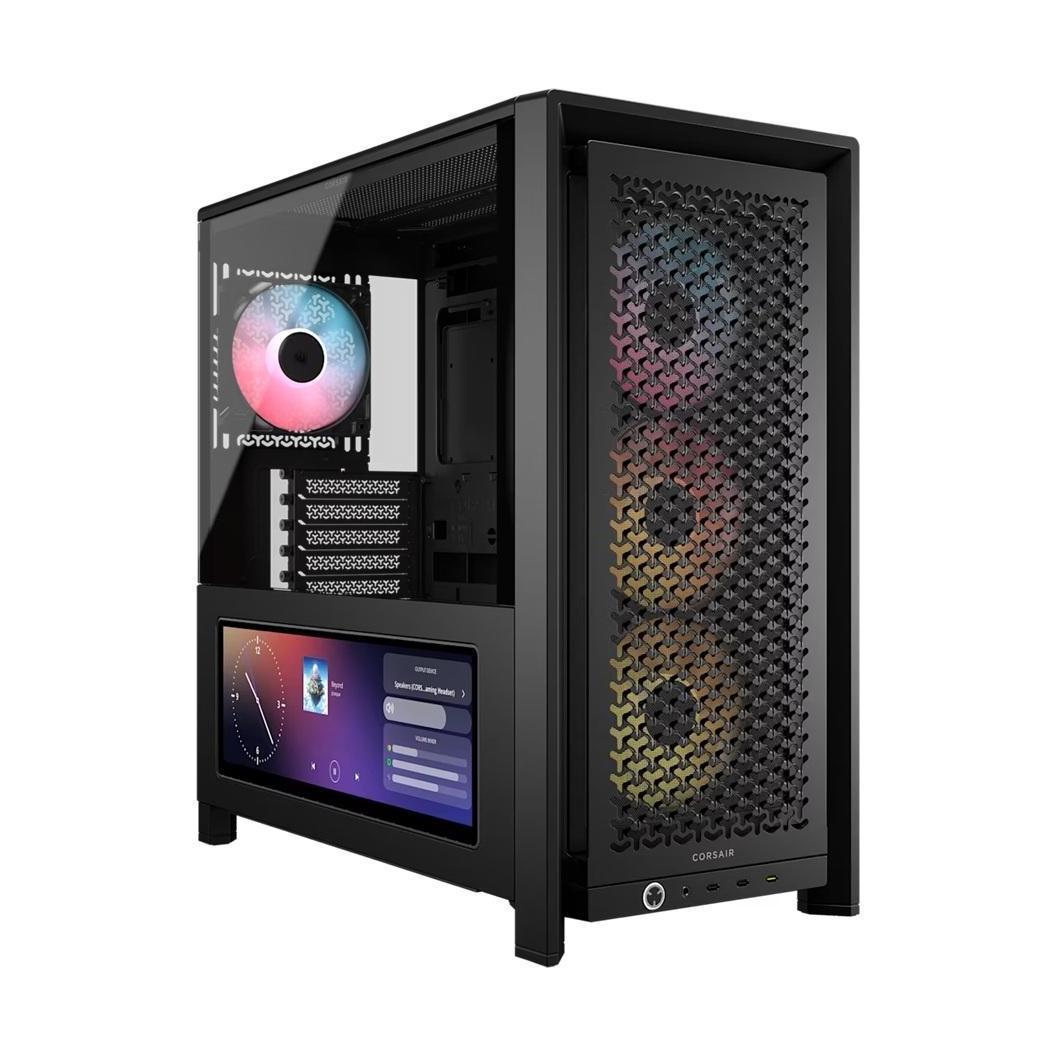

Corsair FRAME 4000D LCD RS ARGB Black ATX/E-ATX TG Panel 430MM GPU 170MM CPU Cooler 360MM RAD USB-C

The Corsair FRAME 4000D LCD RS ARGB is a premium mid-tower PC case designed for high-end builds with advanced cooling and aesthetic features. It supports ATX/E-ATX motherboards and includes a pre-installed XENEON EDGE 14.5" LCD touchscreen.

Display

• XENEON EDGE 14.5" LCD Touchscreen

Cooling

• 4x RS120 PWM ARGB Fans for powerful cooling
• InfiniRail™ Fan Mounting System for superior cooling compatibility with reverse connector motherboards
• Maximum CPU cooler height: 170mm
• Maximum GPU length: 430mm
• Radiator support: Top - 360mm, 280mm, 240mm; Front - 360mm, 280mm, 240mm; Side - 360mm, 280mm, 240mm
• Fan support: Top - 3x 120mm, 2x 140mm; Front - 3x 120mm, 2x 140mm, 2x 200mm; Bottom - 2x 120mm; Side - 3x 120mm, 2x 140mm; Rear - 1x 120mm, 1x 140mm
• Dust filtration included
• Cable routing space: 37mm

Connectivity

• Modern front I/O panel with 3x USB Type-C ports
• Front IO motherboard connections: 1x HD Audio, 1x USB 3.2 Gen1, 1x USB-3.2 Gen2 Type-E, 1x F_PANEL

Compatibility and Features

• Supported motherboards: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305mm x 277mm)
• Vertical mount support supported (riser card sold separately)
• Reverse connector motherboard support
• Liquid cooler compatibility: H60, H100, H115, H150, NAUTILUS, TITAN

Dimensions and Weight

• Height: 486mm
• Length: 490mm
• Width: 239mm
• Weight: 12.36kg

Warranty and Support

• Case warranty: 2 years
