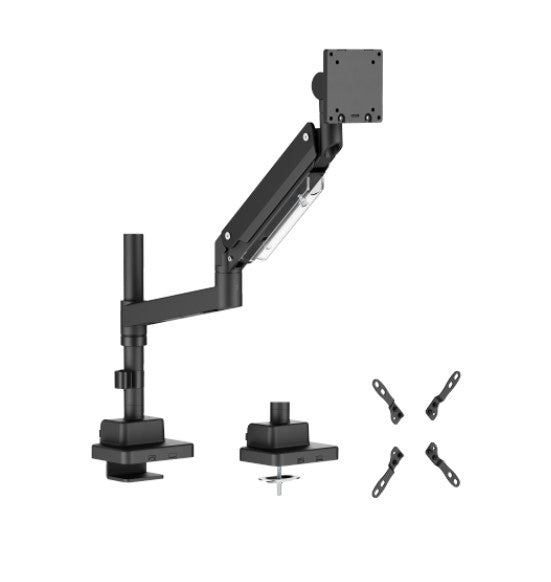

Brateck LDT80-C012P Super Heavy-Duty Pole-Mounted Gas Spring Monitor Arm 24-57 Matte Black
Available in stock (20)
Couldn't load pickup availability
Specifications
Specifications
Display
| VESA Mounting Pattern | 200 x 100 mm, 200 x 200 mm, 100 x 200 mm, 100 x 100 mm, 75 x 75 mm |
|---|
Case & Build
| Material | Plastic, Aluminum |
|---|
Other
| Colour | Black |
|---|
Product Details
Product Details
The Brateck LDT80-C012P is a super heavy-duty pole-mounted gas spring monitor arm designed for large screens from 24" to 57". It features a detachable VESA plate design and an optimized tilting structure that provides excellent weight-bearing capacity. The built-in spring tension mechanism allows for perfect weight adjustments, while the installation process can be completed entirely from above the desk surface.
Display
- Fits screens sizes: 24"-57"
- Fits curved monitors: Yes
- Screen quantity: 1
- Weight capacity (per screen): 2~27kg (4.4lbs~59.4lbs)
- Weight capacity for curved screens (per screen): 2~22kg (4.4lbs~48.4lbs)
- VESA compatible: 75x75, 100x100, 200x100, 200x200, 100x200
- Tilt range: +60°~-20°
- Swivel range: +90°~-90°
- Screen rotation: +90°~-90°
- Arm full extension: 580mm (22.8")
- Pole height: 385mm (15.2")
Installation and Compatibility
- Clamp or grommet installation options
- Suggested desktop thickness for clamp: 10~50mm (0.39"~2")
- Suggested desktop thickness for grommet: 10~50mm (0.39"~2")
- Quick release VESA plate: Yes
Cable Management and Accessories
- Cable management: Yes
- Accessory kit package: Normal/Ziplock Polybag, Compartment Polybag
The Brateck LDT80-C012P is made from a combination of steel, aluminium, and plastic with a powder-coated matte black finish. It measures 156x630x825mm (6.1"x24.8"x32.5").
