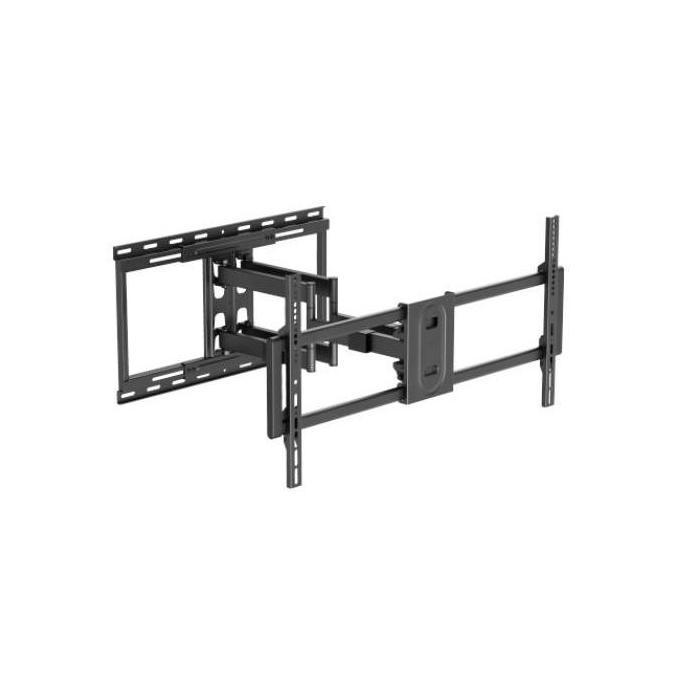

Brateck Heavy-Duty Full-Motion TV Wall Mount with Lateral Shift 600mm Double Stud Black

The Brateck Heavy-Duty Full-Motion TV Wall Mount with Lateral Shift for 600mm Double Stud is designed to provide a robust and versatile mounting solution for your television. This wall mount features several key benefits:

• Detachable Wall Plate: Ensures easy assembly.
• Free-Tilting Swiveling Design: Allows multiple TV viewing angles.
• Lateral Shift Wall Plate: Enables the TV to shift left and right for perfect placement with off-centre studs.
• Easy Assembly: Installation is straightforward.
• Open Architecture: Provides increased ventilation and easier access to wires.

Performance

• Tilt Range: +5°~-10°
• Swivel Range: +60°~-60°
• Screen Level Adjustment: +3°~-3°

Compatibility

• VESA Compatibility: 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, 800x400
• Fit Screen Size: 43"-100"
• Curved TV Support: Yes

Construction and Weight Capacity

• Material: Steel, Plastic Metal Sheet
• Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet, VESA Panel THK=1.8mm cold-rolled sheet, Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet, VESA Panel THK=0.071" cold-rolled sheet, Wall Plate THK=0.12" pickling sheet)
• Pipe Size: 40x20x1.5mm Square Steel Tube (1.6"x0.79"x0.059" Square Steel Tube)
• Surface Finish: Powder Coating
• Colour: Fine Texture Black
• Weight Capacity: 80kg (176lbs)
• Strength Tested: 3 Times

Mounting and Installation

• Approved Profile: 90~635mm (3.5"~25")
• Max Mounting Hole: 800x400
• Installation Type: Solid Wall, Double Stud (600mm)
• Cable Management: Yes
• Direction Indicator: Yes

Packaging and Accessories

• Accessory Kit Package: Normal/Ziplock Polybag, Compartment Polybag
