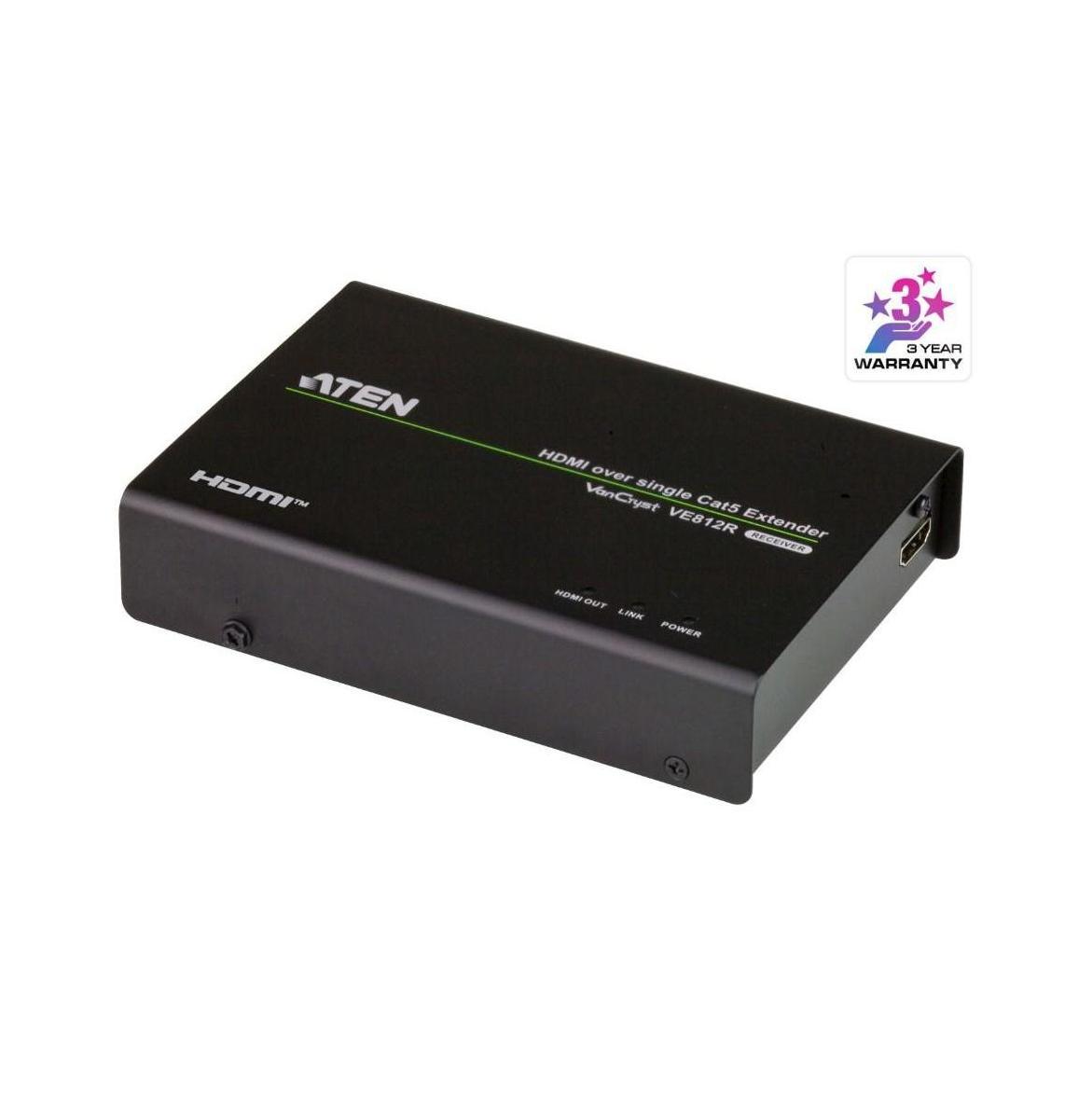

Aten HDMI HDBaseT Receiver 4096x2160 30Hz 70m Cat 5e/6 100m Cat 6A

The Aten HDMI HDBaseT Receiver is designed to support high-resolution video transmission up to 4096 x 2160 @ 30 Hz (4:4:4) over distances of up to 70m using Cat 5e/6 cable and 100m with Cat 6A. It implements HDBaseT technology, allowing for the transmission of HDMI signals including 3D, Deep Color, and 4K content while maintaining HDCP compatibility.

Performance

• Bandwidth: Up to 340MHz
• Data Rate: 10.2 Gbps (3.4 Gbps Per Lane)
• Pixal Clock: Up to 340 MHz

Connectivity

• HDMI Output Interface: 1 x HDMI Type A Female (Black)
• Audio Output: 1 x HDMI Type A Female (Black)
• Power Connector: 1 x DC Jack
• Environmental Operating Temperature: 0 - 50°C
• Storage Temperature: -20 - 60°C
• Humidity: 0 - 80% RH, Non-Condensing

Protection and Compliance

• Built-in ESD Protection: Contact voltage 8KV; Air voltage 15 KV
• HDMI (3D, Deep Color, 4K) Compatibility
• HDCP2.2 Compatible
• Dolby True HD and DTS HD Master Audio Support
• Consumer Electronics Control (CEC)

Physical Properties

• Weight: 0.41 kg (0.9 lb)
• Dimensions: 14.17 x 10.30 x 3.00 cm (5.58 x 4.06 x 1.18 in.)
