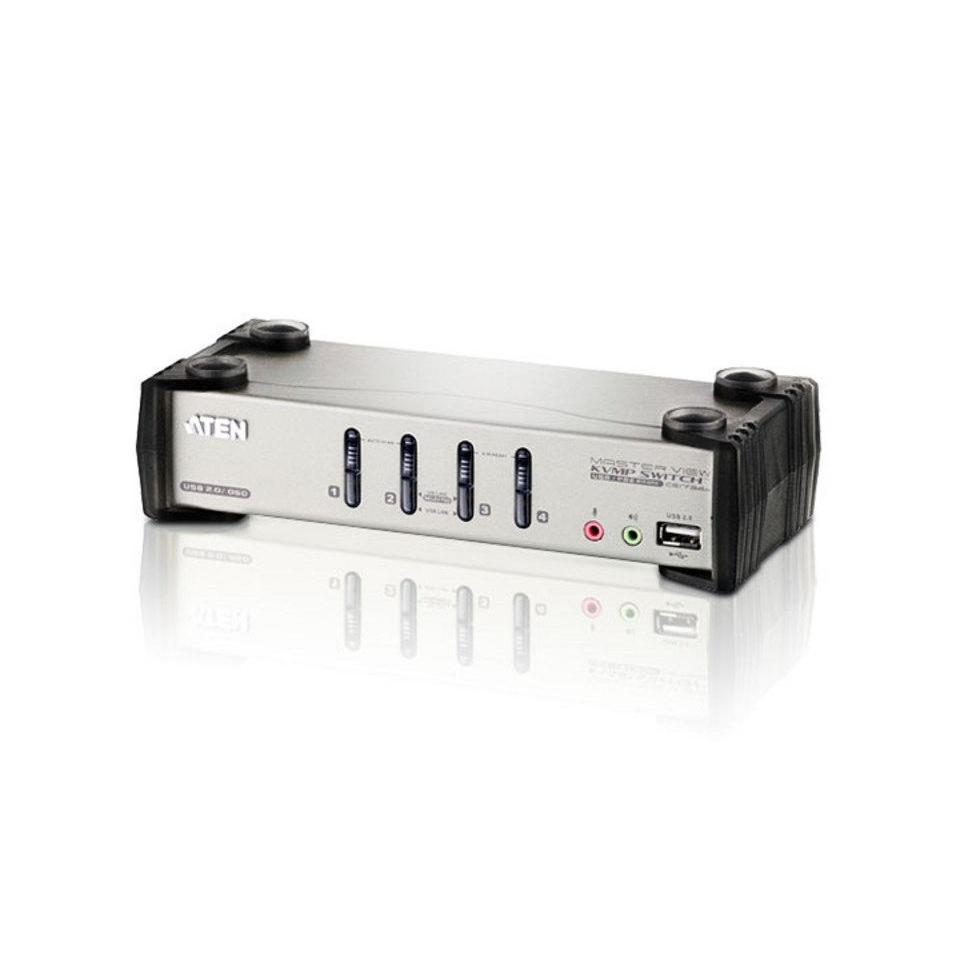

Aten Desktop KVMP Switch 4 Port Single Display VGA with Audio OSDFS

The Aten Desktop KVMP Switch 4 Port Single Display VGA w/ audio OSD is a versatile solution for managing up to four computers from a single keyboard, monitor, and mouse console. It includes:

Display

• VGA support with superior video quality (2048 x 1536)
• Supports widescreen resolutions
• DDC2B compatibility for optimal display resolution

Performance

• Dual interface supporting PS/2 and USB keyboard/mouse configurations
• Multiplatform support (Windows, Mac, Sun)
• Video DynaSync™ stores console monitor's EDID to optimise display resolution
• Complete keyboard emulation for error-free booting

Storage

• No storage information provided

Connectivity

• 4-port KVM switch with USB 2.0 support and 2.1 surround sound audio
• Built-in 2-port USB 2.0 hub
• Audio enabled with full bass response for rich experience on 2.1 surround sound systems
• Console audio ports on front panel for easy access
• Independent switching of KVM, USB and Audio focus
• Auto Scan Mode for monitoring all computers
• Firmware upgradeable

User Interface

• Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
• Console mouse port emulation/bypass feature supports full mouse driver and multifunction mice
• Sun/Mac keyboard support and emulation*
• LED display for easy status monitoring

*Note: The CS1734B includes 4x custom KVM cables, 2x USB ports on the front panel, and no software installation is required.
