Aten Desktop KVMP Switch 2 Port Single Display VGA Audio Cables Included
Hurry up, only 2 items left in stock.
Couldn't load pickup availability
Downloads
Downloads
- Product Brochure · Datasheet, PDF
Specifications
Specifications
Dimensions
| Length | 284 mm |
|---|---|
| Width | 176 mm |
| Height | 64 mm |
Product Details
Product Details

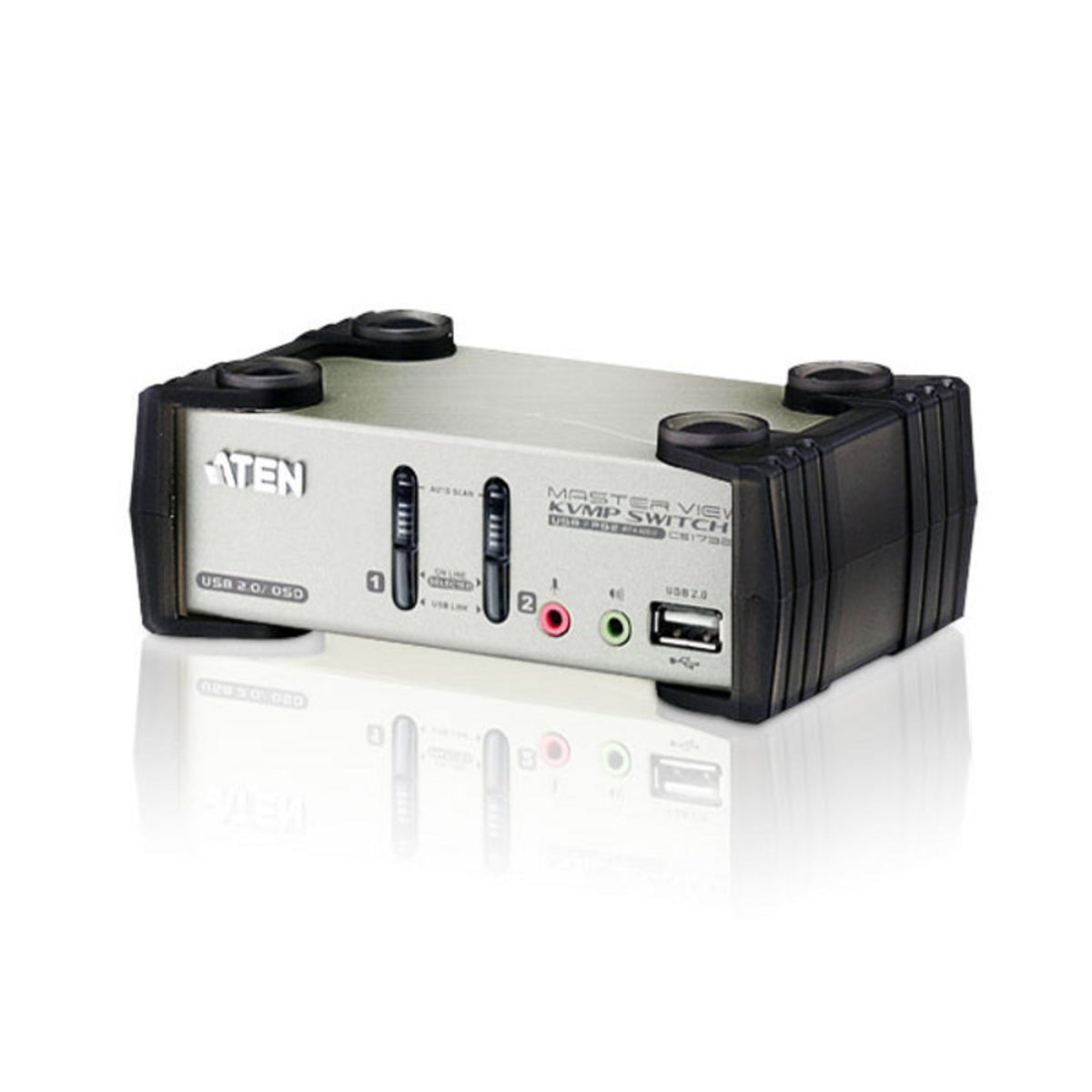

The Aten Desktop KVMP Switch 2 Port Single Display VGA with audio OSD is a compact solution for managing two computers from a single keyboard, monitor, and mouse console. It includes:
- 2-port KVM switch
- Built-in 2-port USB 2.0 hub
- VGA video output with audio support
The CS1732B supports various methods for computer selection, including:
- Front panel pushbuttons
- On Screen Display (OSD)
- Hotkeys
- Mouse navigation
Performance
The switch offers superior video quality with support for resolutions up to 2048 x 1536 and DDC2B compatibility. It also supports widescreen resolutions.
Connectivity
- Dual interface: Supports PS/2 or USB keyboard and mouse configurations
- AUDIO enabled: Full bass response for 2.1 surround sound systems
- Console audio ports on front panel
- Independent switching of KVM, USB, and Audio focus
Features
- Video DynaSync™: Stores the console monitor's EDID to optimize display resolution
- Complete keyboard emulation for error-free booting
- Sun/Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers
- LED Display for easy status monitoring
- Firmware upgradeable
*Sun/Mac keyboard support and emulation may require additional configuration.
Warranty
Warranty
Manufacturer warranty 24 Months
