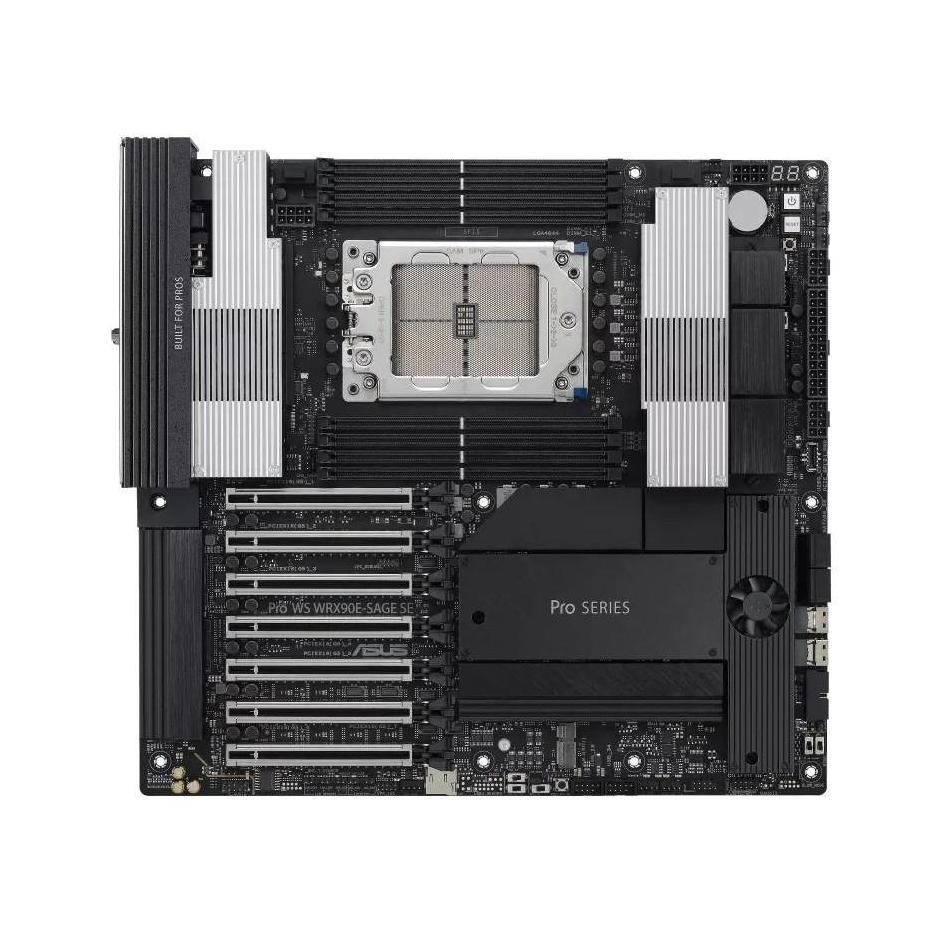

ASUS WS WRX90E-SAGE SE E-ATX Motherboard 7x PCIe 5.0 Multi-GPU 4x M.2 Slots

Name: ASUS WS WRX90E-SAGE SE E-ATX Motherboard 7x PCIe 5.0 Multi-GPU 4x M.2 Slots
Brand: ASUS
SKU: PRO WS WRX90E-SAGE SE
Price: 2292.77 AUD
Availability: InStock

SKU: PRO WS WRX90E-SAGE SE

Barcode: 4711387441152

$2,292.77 ~~$2,328.48~~

Tax included. Shipping calculated at checkout.

Available in stock (48)

AMD sTR5 E-ATX form factor
7 PCIe 5.0 x16 slots
Multigpu support included
4x M.2 PCIe 5.0 slots
Dual 10 Gb LAN ports
CPU & memory overclocking
Rugged power design

Free Shipping on orders over $250
Hassle-free returns within 30 days of purchase
Phone, email & live chat — Mon to Sat.

Downloads

User manual · PDF

Specifications

Processor

Processor Socket	Socket sTR5

Memory

Memory Technology	DDR5

Motherboard

Motherboard Form Factor	Extended ATX
Motherboard Chipset Family	AMD

Expansion & Slots

Expansion Slot Types	SATA, M.2, PCIe

Ports & Connectivity

USB Standard	USB4, USB 2.0
USB Connector Type	USB Type-A, USB Type-C

Dimensions

Length	380 mm
Width	366 mm
Height	84 mm

Other

Series	Pro WS WRX90E-SAGE SE
Colour	Black

Product Details

The ASUS WS WRX90E-SAGE SE is an E-ATX motherboard designed for high-end workstations and servers. It supports up to 96-core CPUs from the AMD Ryzen™ Threadripper™ PRO 7000 WX-Series, making it ideal for demanding tasks such as rendering, simulation, and data analysis.

Display

No specific display output information provided.

Performance

CPU overclocking ready
Memory overclocking support up to 2 TB ECC R-DIMM DDR5 (1DPC)

Storage

Four PCIe 5.0 M.2 slots with thermal pads and heatsinks
SlimSAS NVMe support

Connectivity

Seven PCIe® 5.0 x16 slots for multi-GPU configurations
Dual 10 Gb LAN ports
Two rear USB4® 40Gbps Type-C® ports

Power and Thermal Design

Robust 32+3+3+3 power-stage design with two 8-pin power connectors for the CPU
Mega VRM cooling, chipset, M.2 heatsinks with active fans

Other Features

Pcie Q-Release Slim: Easy removal of graphics cards without pressing a PCIe latch
Server-grade IPMI remote management and onboard BMC with dedicated LAN port link to an AST2600 controller
ASUS Control Center Express software for real-time monitoring and management
Trusted stability with extensive compatibility testing, QVL list validation, and 24/7 operation readiness
