Save 0%
ASUS

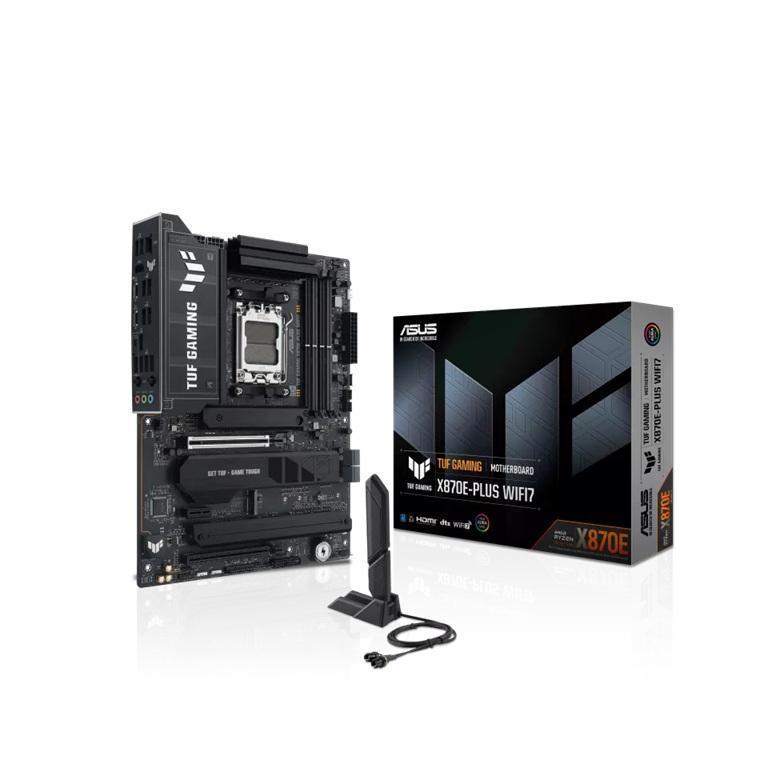

ASUS TUF GAMING X870E-PLUS WIFI7 AM5 DDR5 256GB PCIe 5.0 4x M.2 WiFi 7 USB4
Regular price
Sale price
$523.86
Regular price
$525.10
Tax included.
Shipping calculated at checkout.
Available in stock (65)
Couldn't load pickup availability
Downloads
Downloads
- User manual · PDF
- User manual · PDF
Specifications
Specifications
Processor
| Processor Socket | Socket AM5 |
|---|
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | ATX |
|---|---|
| Motherboard Chipset Family | AMD |
Expansion & Slots
| Expansion Slot Types | PCIe, M.2 |
|---|
Ports & Connectivity
| Wi-Fi Standard | 802.11ax |
|---|---|
| USB Standard | USB 2.0, USB4 |
| USB Connector Type | USB Type-C, Other |
Dimensions
| Length | 305 mm |
|---|---|
| Width | 244 mm |
| Height | 24.4 mm |
Other
| Series | TUF Gaming |
|---|---|
| Colour | Black |
Product Details
Product Details
The ASUS TUF Gaming X870E-PLUS WIFI7 is an ATX motherboard designed for AMD Ryzen™ processors with AM5 socket support. It offers robust performance and advanced connectivity options.
Display
- 1 x HDMI™ port (supports 4K@60Hz as specified in HDMI 2.1)
- 2 x USB4® (40Gbps) ports support USB Type-C® display outputs (supports max. 4K@60Hz as specified in DisplayPort 1.4a)
Performance
- Chipset: AMD X870E
- CPU Socket: AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
- Memory: 4 x DIMM slots supporting up to 256GB DDR5 with speeds up to 8000+MT/s (OC)
- Expansion Slots: PCIe 5.0 x16 slot for Ryzen™ 9000 and 7000 Series, PCIe 4.0 x16 slot for Ryzen™ 8000 Series
Storage
- Total Supports: 4 x M.2 slots (varies by CPU type) and 4 x SATA 6Gb/s ports
- M.2 Slots: PCIe 5.0 or 4.0 x4 mode depending on the CPU series
- RAIDXpert2 Technology: RAID configurations vary by processor series
Connectivity
- Ethernet: Realtek 2.5Gb Ethernet TUF LANGuard
- Wireless: Wi-Fi 7 (802.11be) with Bluetooth® v5.4
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
- Operating System: Windows 11
Dimensions
- Form Factor: ATX (12 inch x 9.6 inch or 30.5 cm x 24.4 cm)
