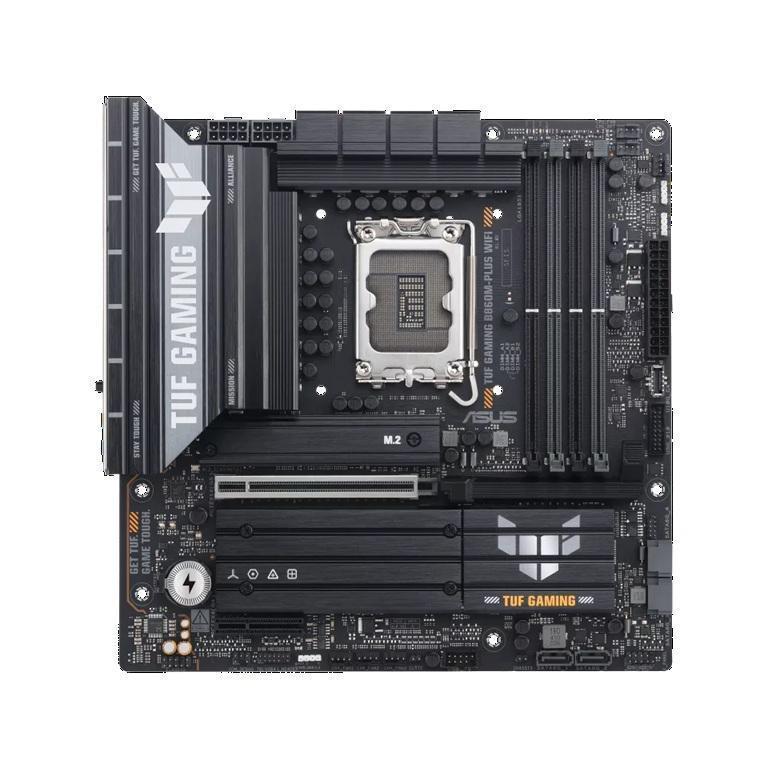

ASUS TUF GAMING B860M-PLUS WIFI DDR5 256GB mATX Motherboard PCIe 5.0 3x M.2 WiFi 7
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 278 mm |
|---|---|
| Width | 280 mm |
| Height | 70 mm |
Product Details
Product Details
The ASUS TUF GAMING B860M-PLUS WIFI is a durable and high-performance mATX motherboard designed for marathon gaming sessions. It features an Intel® B860 chipset with support for the latest Intel® Core™ Ultra Processors (Series 2) and includes advanced connectivity options such as PCIe 5.0, three M.2 slots, and four SATA ports.
Display
- 1 x DisplayPort supporting up to 4K@60Hz (DP 1.4)
- 1 x HDMI port supporting up to 4K@60Hz (HDMI 2.1)
- 1 x USB Type-C® port for DisplayPort video output
Performance
- Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 support
- 4 x DIMM slots supporting up to 256GB DDR5 memory with speeds of up to 8800+MT/s (OC)
- Dual Channel Memory Architecture
- SUPPORTS XMP memory module and ASUS Enhanced Memory Profile III (AEMPIII)
Storage
- 3 x M.2 slots: 1 PCIe 5.0 x4, 2 PCIe 4.0 x4
- 4 x SATA 6Gb/s ports
Connectivity
- Intel® B860 Chipset with Realtek 2.5Gb Ethernet and TUF LANGuard
- Wi-Fi 7 (2x2) supporting 2.4/5/6GHz frequency bands, up to 2.9Gbps transfer rate
- Bluetooth v5.4
The motherboard is equipped with a comprehensive cooling system and military-grade components for reliable performance under demanding conditions.
Warranty
Warranty
Manufacturer warranty 36 Months
