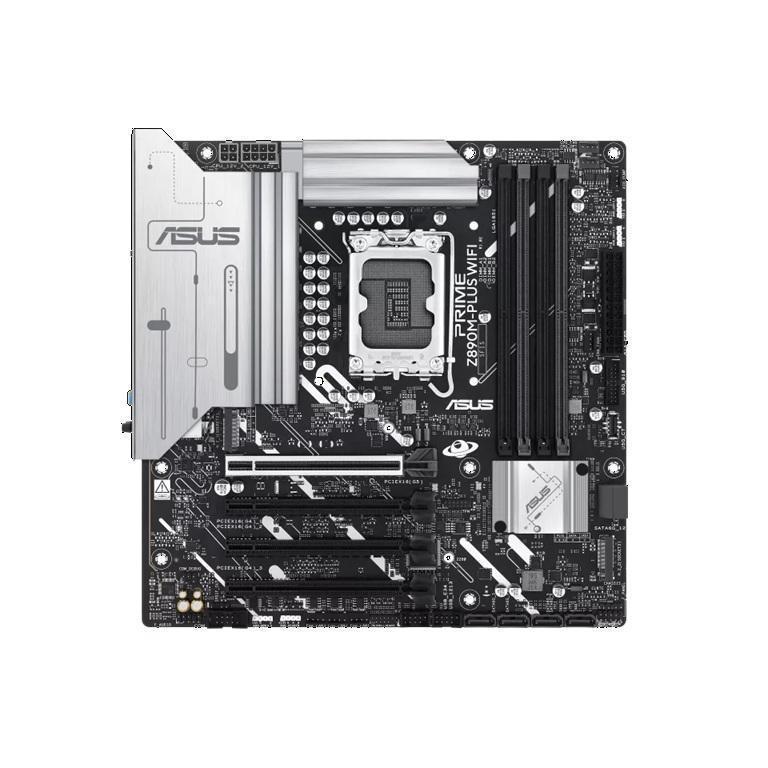

ASUS PRIME Z890M-PLUS WIFI-CSM LGA1851 mATX Motherboard DDR5 256GB Wi-Fi 7

The ASUS PRIME Z890M-PLUS WIFI-CSM is an mATX motherboard designed for the latest Intel® Core™ Ultra Processors (Series 2) and supports up to DDR5 256GB memory with speeds of up to 8666+MT/s (OC). It features PCIe 5.0, three M.2 slots, Wi-Fi 7 connectivity, and a USB 20Gbps Type-C port.

Display

• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x USB 20Gbps port (USB Type-C®) supporting DisplayPort video output

Performance

• Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 support
• Dual channel memory architecture
• Supports up to 8666+MT/s (OC) DDR5 memory speed
• ASUS Enhanced Memory Profile III (AEMPIII)

Connectivity

• 1 x Realtek 2.5Gb Ethernet with ASUS LANGuard
• Wi-Fi 7
• USB 20Gbps Type-C port supporting DisplayPort video output

Special Features

• ASUS 5X PROTECTION III - DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O
• ASUS Q-Design features: Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot
• VRM heatsink design for thermal management
• Built-in BIOS FlashBack™ button and LED for easy firmware updates
• Aura Sync RGB lighting with addressable Gen 2 headers

Form Factor

• mATX form factor, dimensions: 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

The motherboard is designed to be Advanced AI PC-ready and supports Windows 11 (22H2 later).
