ASUS

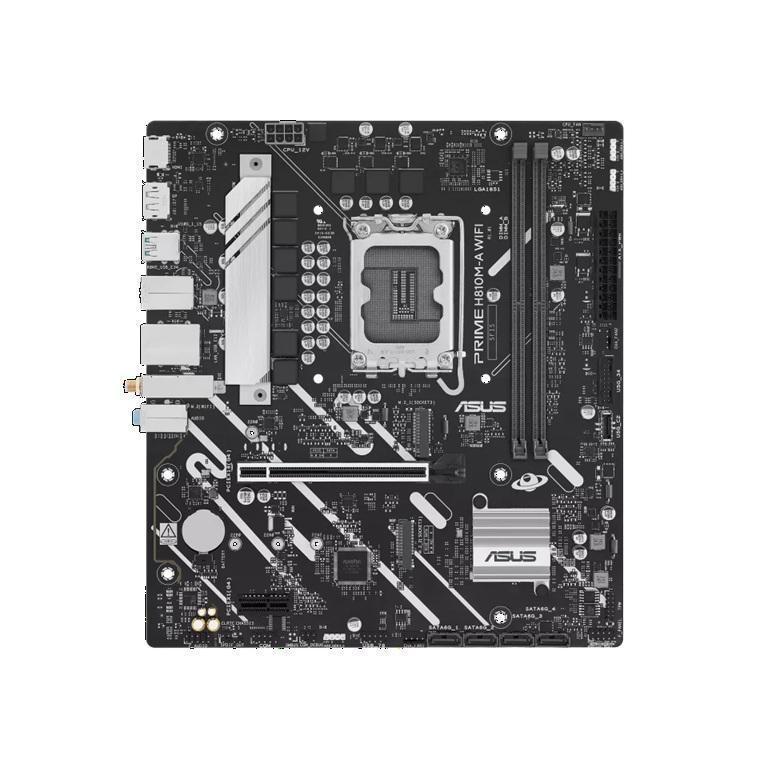

ASUS PRIME H810M-A WIFI-DDR5 128GB Micro ATX Motherboard 2x M.2 4x SATA WiFi 6 HDMI DP
Hurry up, only 2 items left in stock.
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 244 mm |
|---|---|
| Width | 222 mm |
| Height | 40 mm |
Product Details
Product Details
The ASUS PRIME H810M-A WIFI-DDR5 is a micro-ATX motherboard designed for Intel® Core™ Ultra Processors (Series 2). It supports up to 128GB of DDR5 memory across two slots and features PCIe 4.0 connectivity, including one x16 slot and one x1 slot.
Display
- 1 x DisplayPort
- 1 x HDMI™ port
Performance
- CPU Support: Intel® Core™ Ultra Processors (Series 2)
- Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 support based on CPU type
- Memory: Up to 6400MT/s, Non-ECC, Un-buffered DDR5 with XMP and AEMP II profiles
Storage
- 2 x M.2 slots (PCIe 4.0)
- 4 x SATA 6Gb/s ports
Connectivity
- 1 x Intel® 1Gb Ethernet port with ASUS LANGuard
- Wi-Fi 6 (802.11ax) and Bluetooth® v5.3
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
The motherboard measures 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm) and is compatible with Windows 11 (22H2 later), Windows 10 64-bit (21H2 later).
Warranty
Warranty
Manufacturer warranty 36 Months
