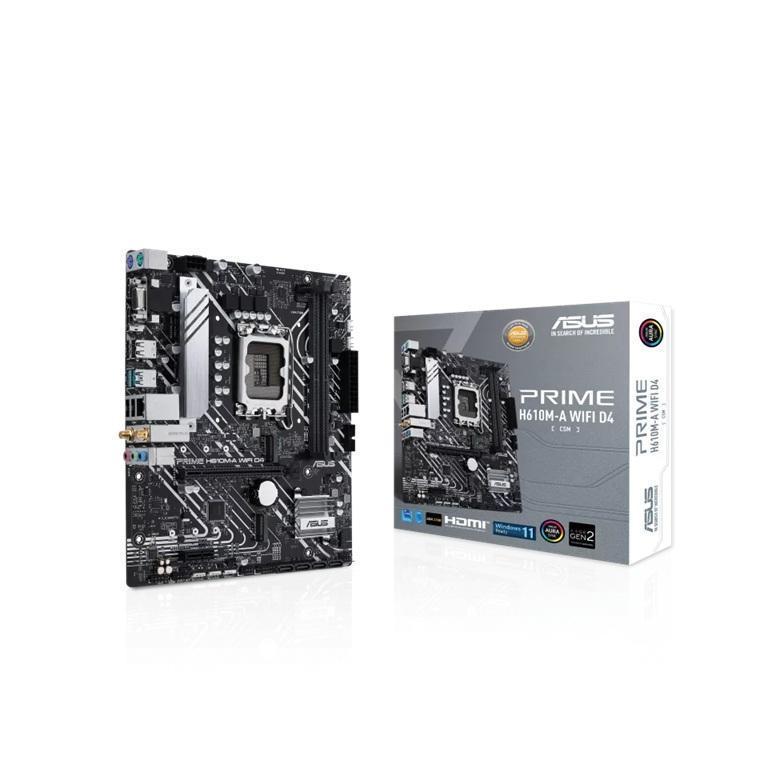

ASUS H610M-A WIFI mATX Motherboard LGA1700 2xDDR4 64GB 2xM.2 4xSATA Wi-Fi 5

The ASUS H610M-A WIFI is a compact mATX motherboard designed for Intel processors with LGA1700 sockets, supporting 12th, 13th, and upcoming 14th generation CPUs. It features dual-channel DDR4 memory support up to 64GB and offers comprehensive cooling solutions including VRM heatsinks and Fan Xpert 2+ technology.

Display

• 1 x DisplayPort (supports max. 4K@60Hz)
• 1 x D-Sub port
• 1 x HDMI® port (supports 4K@60Hz)

Performance

• Intel H610 chipset
• Pcie 4.0 x16 slot for graphics cards
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 (depending on CPU type)

Storage

• 2 x M.2 slots (Key M, PCIe 3.0 modes)
• 4 x SATA 6Gb/s ports

Connectivity

• Intel 1 Gb Ethernet
• Wi-Fi 5 (802.11 a/b/g/n/ac) with support for 2.4/5GHz frequency band
• Bluetooth v5.0
• USB: 6 rear ports (2 x USB 3.2 Gen 2, 4 x USB 2.0), 5 front panel ports (1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers)

Aura Sync RGB

• Onboard addressable Gen 2 headers for RGB LED strips
• Easily synced with Aura Sync-capable hardware

The ASUS H610M-A WIFI measures 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm) and is compatible with Windows® 11 and Windows® 10 operating systems.
