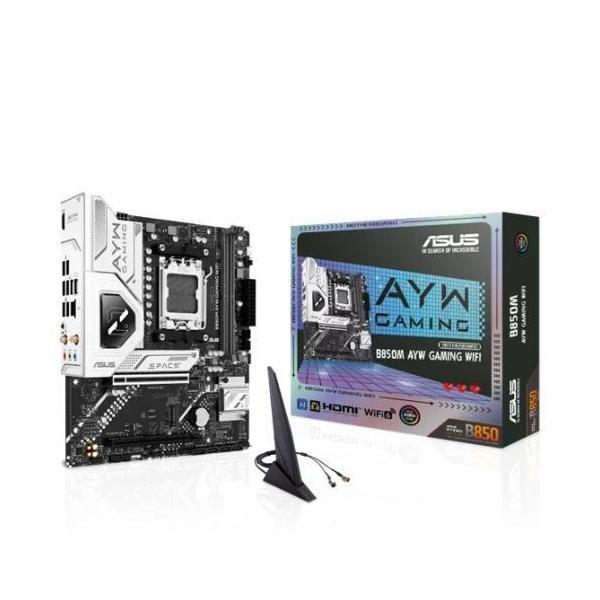

ASUS B850M AYW GAMING WIFI AM5 128GB DDR5 PCIe 5.0 x2 M.2 WiFi 6 2.5GbE USB 10Gbps

The ASUS B850M AYW GAMING WIFI motherboard is designed to unleash the full potential of AMD Ryzen™ 9000 series processors with expert engineering and performance optimizations through intuitive software and firmware features.

CPU Support

• AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors

Chipset

• AMD B850 Chipset

Memory

• 2 x DIMM slots, max. 128GB DDR5
• Supports up to 8200+MT/s (OC) with Ryzen™ 9000 Series Processors
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

Graphics

• HDMI™ port supporting 4K@60Hz as specified in HDMI 2.1

Expansion Slots

• 1 x PCIe 5.0 x16 slot (supports x16 mode) for Ryzen™ 9000 and 7000 Series Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) for Ryzen™ 8000 Series Processors
• 1 x PCIe 4.0 x16 slot (support x4 mode) for AMD B850 Chipset

Storage

• 2 x M.2 slots and 4 x SATA 6Gb/s ports
• M.2_1 slot (Key M), type 2280, supports PCIe 5.0 x4 mode for Ryzen™ 9000 and 7000 Series Processors
• M.2_2 slot (Key M), type 2280, supports PCIe 4.0 x4/x2 mode for Ryzen™ 8000 Series Processors
• RAIDXpert2 Technology: RAID 0/1/5/10 for Ryzen™ 9000 Series Processors; RAID 0/1 for Ryzen™ 8000 Series Processors; RAID 0/1/10 for Ryzen™ 7000 Series Processors

Connectivity

• Realtek 2.5Gb Ethernet
• Wi-Fi 6 (802.11ax) with Bluetooth® v5.3

BIOs and Management

• 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE

Operating System Support

• Windows® 11, Windows® 10 (64-bit)

The ASUS B850M AYW GAMING WIFI motherboard is a micro-ATX form factor measuring 9.6 inches x 8.7 inches (24.4 cm x 22.1 cm).
