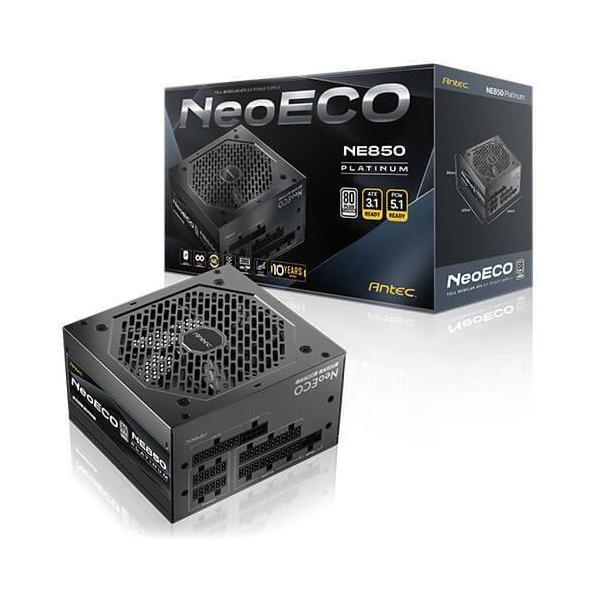

Antec NE850P 850W ATX 3.1 PCIe 5.1 Full Modular Platinum PSU 120mm Fan

The Antec NE850P is a high-performance power supply unit designed for gamers and enthusiasts seeking reliable and efficient energy delivery. It features next-generation ATX 3.1 and PCIe 5.1 support along with Japanese capacitors to ensure consistent power output. The PSU boasts an impressive 80 PLUS® Platinum efficiency rating, making it both powerful and eco-friendly.

Performance

• Type: ATX 12V 3.1
• Power Output: 850W
• PFC: Active PFC
• Certifications: 80 Plus Platinum

Fan and Cooling

• Fan: 120mm FDB Silent Fan
• Zero RPM Manager: Yes (intelligent fan control)

Connectivity

• Modular Design: Full-Modular
• Cable Connectors:
  • 1 x 24(20+4) pin MB
  • 1 x 16(12+4) pin PCIE 5.1 12V-2x6
  • 2 x 8(4+4) pin CPU
  • 3 x 8(6+2) Pin PCI-E
  • 6 x SATA
  • 2 x Molex

Protection and Safety

• Protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
• Warranty: 10 years
• Regulatory Compliance: cTUVus / TUV / CB / RCM / CE / FCC / BSMI / 3C / UKCA / ICES

Dimensions and Operating Conditions

• Dimension (L x W x H): 140mm x 150mm x 86mm
• Input Voltage: 100V-240V
• Input Current: 10A-5A
• Input Frequency Range: 50Hz-60Hz
• Operating Temperature: 0~40°C
