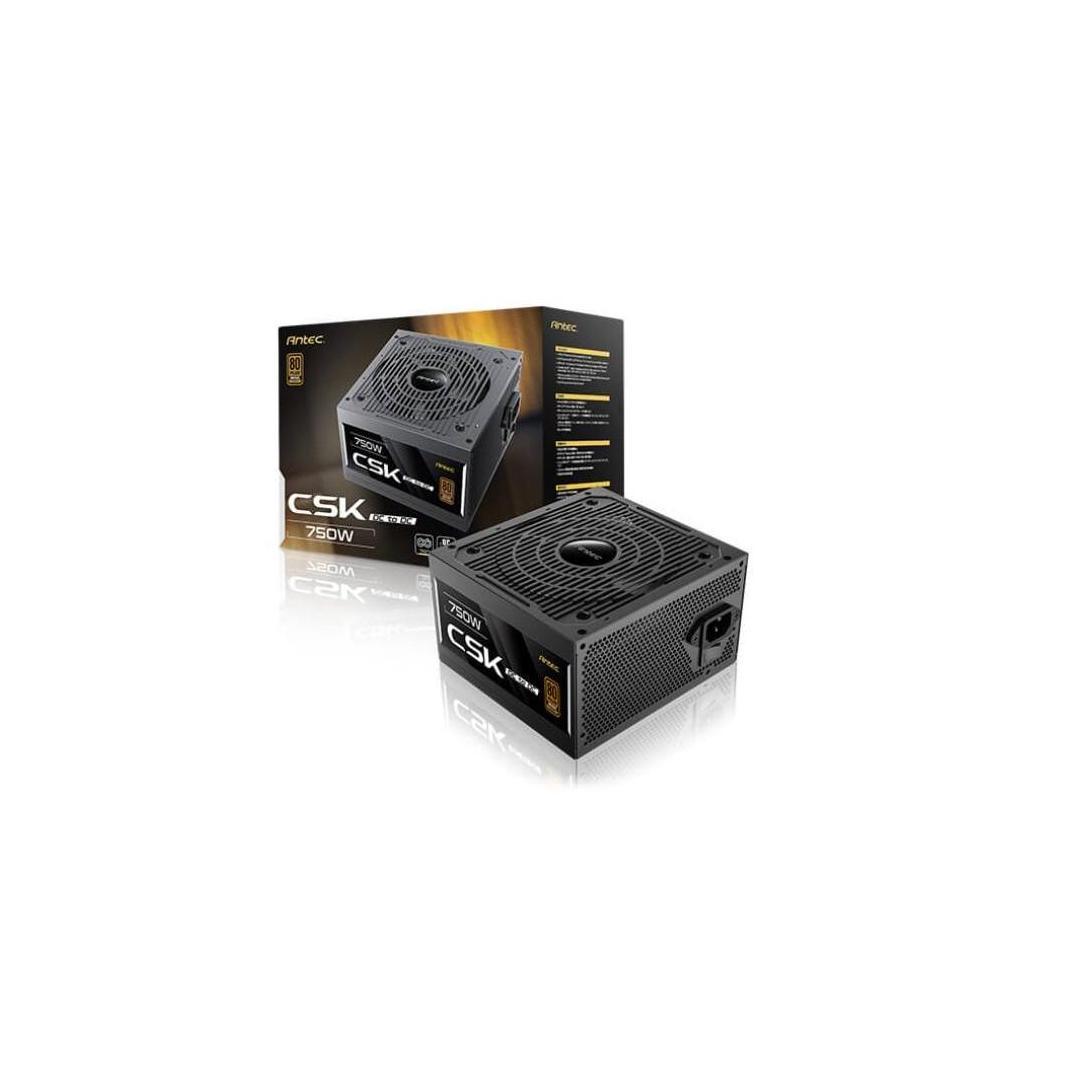

Antec CSK750DC 80+ Bronze PCIE 5.1 Continuous Power DC to DC Flat Cables 5Yrs

The Antec CSK750DC is an ATX 12V power supply unit designed for reliable and efficient performance in PC builds. It features a non-modular design with active PFC and comes with a 5-year warranty.

Performance

• Power output: 750W continuous power
• PFC type: Active PFC
• Protection features: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
• Fan: 120mm silent fan
• Certifications: 80 Plus Bronze

Input Specifications

• Voltage range: 100V-240V
• Current: 12A max
• Frequency range: 50Hz-60Hz
• Power good signal: 100-500ms

Output Specifications

• Cable connectors:
• 1 x 24(20+4)pin MB
• 1 x 16(12+4)pin PCIE 5.1 / 12V-2x6 / 300W
• 2 x 8(4+4)pin CPU
• 4 x 8(6+2)pin PCI-E
• 6 x SATA
• 3 x Molex

Environmental Specifications

• Operating temperature: 0~40°C
• Regulatory certifications: cTUVus/TUV/CB/RCM/CE/FCC/BSMI/KC /UKCA/ICES/BIS

Dimensions and Weight

• Unit box dimensions: 255mm(L)*195mm(W)*100mm(H)
• Shipping box dimensions: 545mm(L)*425mm(W)*230mm(H)
• Net weight: 1.80KG
• Gross weight: 2.00KG
