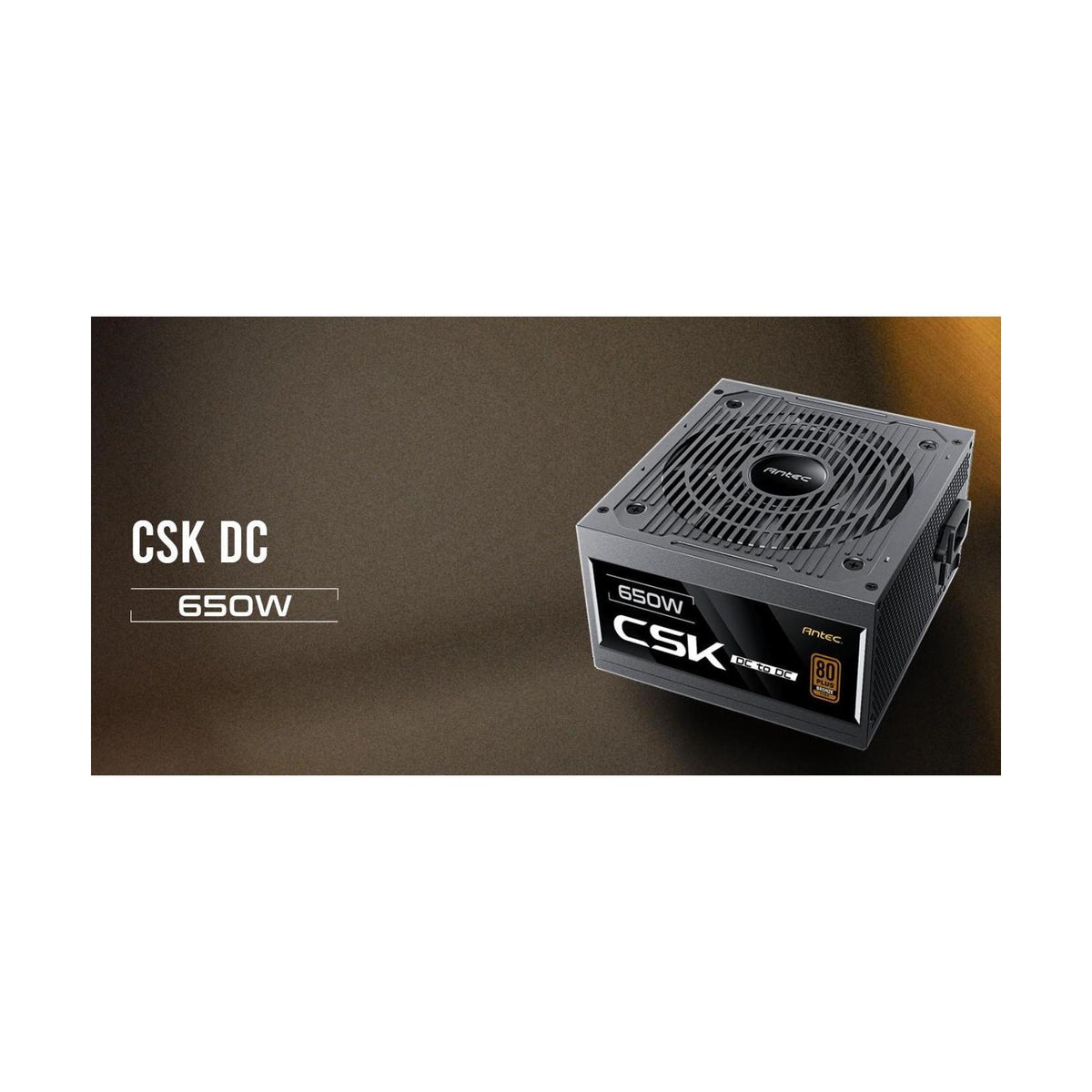

Antec CSK650DC 80+ Bronze DC to DC Flat Cables . CircuitShield Protections

The Antec CSK650DC is a high-quality power supply featuring DC-to-DC architecture and an 80 PLUS® BRONZE certification for efficiency. It includes several industrial-grade protections such as CircuitShield™ to ensure safe and reliable operation in any environment.

Performance

• Type: ATX 12V 2.52
• Output Capacity: 650W
• Power Good Signal: 100-500ms
• Fan: Quiet 120mm Silent Fan

Protection Features

• OCP (Over Current Protection)
• OVP (Over Voltage Protection)
• UVP (Under Voltage Protection)
• SCP (Short Circuit Protection)
• OPP (Over Power Protection)
• OTP (Over Temperature Protection)
• SIP (Inrush Current Limiting)
• NLO (No Load Output Regulation)

Input Specifications

• Voltage: 100V-240V
• Current: 12A Max
• Frequency Range: 50Hz-60Hz
• PFC (Power Factor Correction): Active PFC

Environmental and Safety Standards

• cTUVus / TUV / CB / RCM / CE / FCC / BSMI / KC / UKCA / ICES/BIS

Warranty

5 years

Connectivity and Dimensions

• Dimensions: 140(L) x 150(W) x 86(H) mm
• Unit Box Dimensions: 255mm(L) x 195mm(W) x 100mm(H)
• Shipping Box Dimensions: 545mm(L) x 425mm(W) x 230mm(H)
• Net Weight: 1.70KG
• Gross Weight: 1.90KG

Cable Connectors

• 1 x 24(20+4)pin MB
• 2 x 8(4+4)pin CPU
• 2 x 8(6+2)pin PCI-E
• 6 x SATA
• 3 x Molex
