AMD

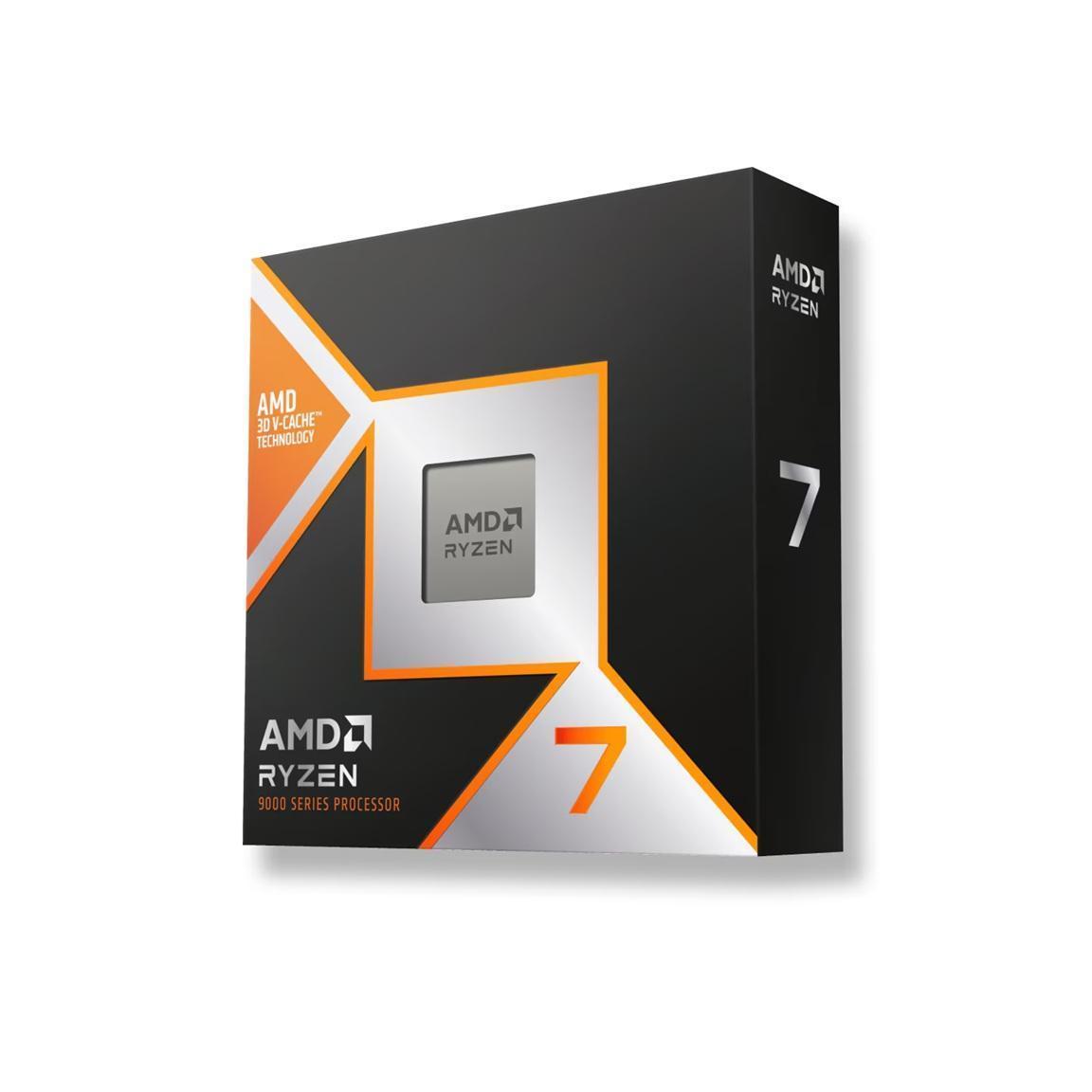

AMD Ryzen 7 9800X3D 8-Core 5.2GHz Boost 96MB L3 Cache AM5 CPU
Available in stock (12)
Couldn't load pickup availability
Specifications
Specifications
Processor
| L3 Cache | 96MB |
|---|---|
| Processor Family | AMD Ryzen |
| Processor Cores | Octa |
| Instruction Set Architecture | 64-bit |
Memory
| Memory Technology | DDR5 |
|---|---|
| Memory Channels | Dual |
Graphics
| Graphics Card Type | Integrated |
|---|
Product Details
Product Details
The AMD Ryzen™ 7 9800X3D is an elite gaming processor featuring 8 cores and 16 threads with a maximum boost clock speed of up to 5.2 GHz. It includes 96MB of L3 cache, making it ideal for high-performance computing tasks.
Performance
- Cores: 8
- Threads: 16
- Base Clock: 4.7 GHz
- Max Boost Clock: Up to 5.2 GHz
- L1 Cache: 640 KB
- L2 Cache: 8 MB
- L3 Cache: 96 MB
- TDP: 120W
- Process Technology: TSMC 4nm FinFET for CPU cores, TSMC 6nm FinFET for I/O die
Connectivity
- PCIe® Version: PCIe® 5.0
- Native PCIe® Lanes (Total/Usable): 28 / 24
- Native USB 3.2 Gen 2 (10Gbps) Ports: 4
- Native USB 2.0 (480Mbps) Port: 1
- NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10
Memory
- Type: DDR5
- Channels: 2
- Max Memory: 192 GB
- ECC Support: Yes (Requires motherboard support)
Graphics
- Model: AMD Radeon™ Graphics
- Cores: 2
- Frequency: 2200 MHz
The Ryzen 7 9800X3D supports the AM5 socket and includes features such as Precision Boost Overdrive, AMD EXPO™ Memory Overclocking Technology, and Curve Optimizer Voltage Offsets. It is recommended to use a liquid cooler for optimal performance.
