Ubiquiti
Ubiquiti EdgePoint S16 16-Port PoE Outdoor WISP Switch 4x 54v/24v 12x 802.3af
Available in stock (2843)
Couldn't load pickup availability
Specifications
Specifications
Power
| Power Source | DC-powered |
|---|
Dimensions
| Length | 466 mm |
|---|---|
| Width | 136 mm |
| Height | 376 mm |
Other
| Colour | Black |
|---|
Product Details
Product Details

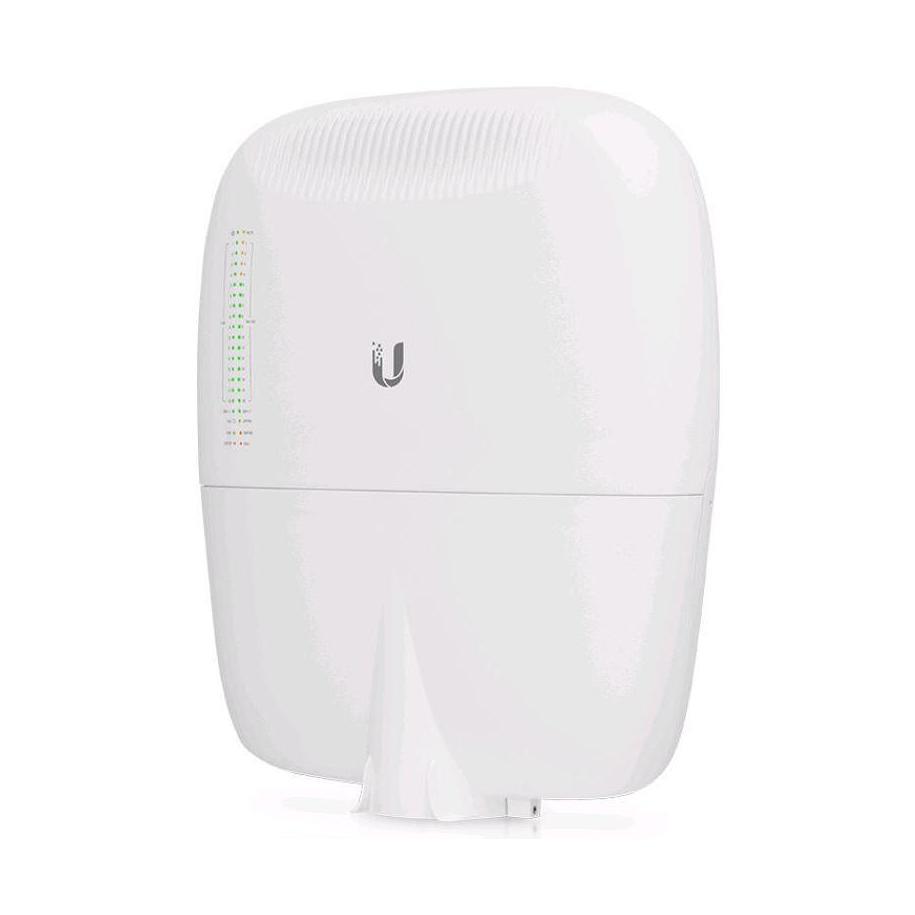

The Ubiquiti EdgePoint S16 is an application-specific WISP control point designed for outdoor use with a weatherproof enclosure. It features 16 Gigabit RJ45 ports and 2 SFP+ ports, offering both Layer-2 switching capabilities and some layer-3 functionalities.
Ports
- Gigabit Ethernet Ports: 16 x GbE RJ45 (4x 54V/24V PoE, 12x 802.3af)
- SFP+ Ports: 2 x 1/10G SFP+
Mounting and Weather Resistance
- Mount Type: Pole/wall mount
- Wind Loading: 153 N at 200 km/h (34 lbf at 125 mph)
- Wind Survivability: 200 km/h (125 mph)
Power Supply and Consumption
- Power Method: DC terminal block, 54V DC, 6A input with self-correcting polarity protection on the DC terminal block only; diode red protection on all power inputs.
- Supported Voltage Range: 42–56V DC (-48V is NOT supported)
- Max Power Consumption: 40W (Excludes PoE output)
Environmental Specifications
- Ambient Operating Temperature: -40 to 65° C (-40 to 149° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
The EdgePoint S16 is equipped with ESD protection, ensuring reliable operation in challenging environments.
Warranty
Warranty
Manufacturer warranty 12 Months
