Tycon

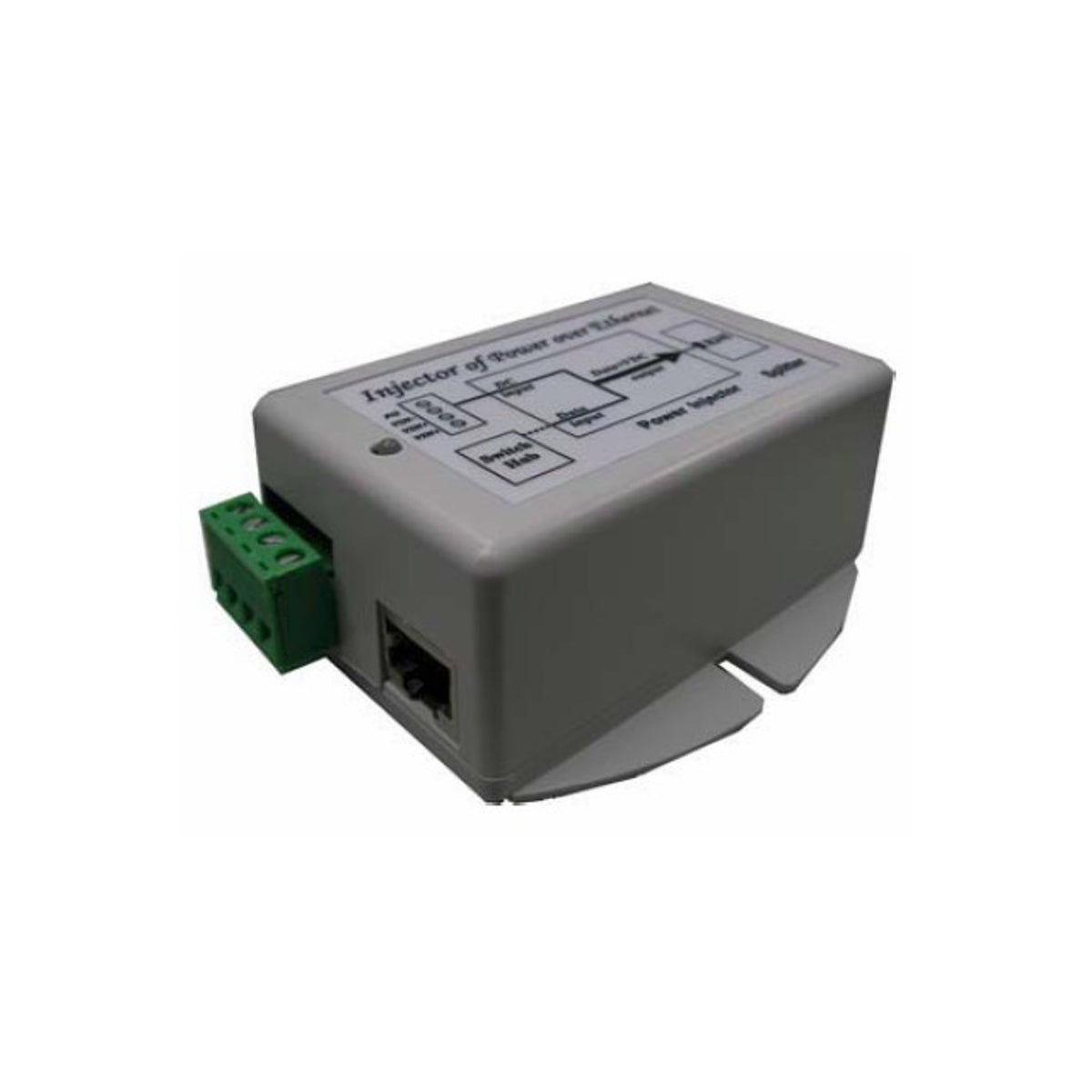

Tycon TP-DCDC-1224G 9-36VDC to 24V Passive PoE 20W Gigabit DC-DC Converter
Regular price
$199.00
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (16)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 122 mm |
|---|---|
| Width | 84 mm |
| Height | 42 mm |
Product Details
Product Details
The Tycon TP-DCDC-1224G is a low-cost and high-efficiency solution for providing Passive Power over Ethernet (PoE) from a 9-36VDC voltage source such as a battery system or vehicle. It integrates a PoE injector to deliver both power and gigabit data output through CAT5/6 Ethernet cables.
Performance
- Input Voltage: 9-36VDC
- Output Voltage: 24VDC (Passive)
- Power Output: Up to 20W
- Data Rate: Gigabit Ethernet
Protection and Safety
- Short Circuit Protection
- Over Current Protection
- Over Voltage Protection
- I.T.E. Power Supply, UL Listed
Connectivity
- Integrated Gigabit PoE Inserter
- Data-in: Shielded RJ45 Jack
- Data-out and PoE power on the shielded RJ45 output jack
Physical Specifications
- Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4in)
- Weight: 134g (4.7oz)
- Removable Wire Terminal Input for up to 12AWG wires
Warranty
Warranty
Manufacturer warranty 12 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
